TBS Crossfire TX LITE Transmitter Module - NDAA

DEVELOPED BY EXPERTS

Team BlackSheep is renowned for setting long-range records, flying close-to-ground proximity routes in the Alps, and navigating deep urban environments. Through countless missions around the globe, we've compiled a list of essential requirements — and found no existing system could meet them all. So, we embarked on a long and challenging journey to develop an R/C link system from scratch, testing it rigorously for over a year to ensure top-tier reliability and cutting-edge functionality. The transmitter's OLED display lets you monitor your drone's real-time location (with a TBS GPS or BlackBox paired with DJI Naza or APM-based GPS). The up-and-downlink status provides a sense of security, while the OLED configuration options eliminate the need for PC-based tools. A pulsing LED shows link health and signal strength in color (green = all clear, orange = time to turn back). In the event of a crash, the drone’s location appears on the OLED display. Plus, the receiver’s built-in battery automatically activates beacon mode, transmitting the last known coordinates until the battery runs out.

IT JUST WORKS

Apart from unparalleled maximum range, what we are most proud of with the TBS CROSSFIRE LITE is that it just works. In the past, the question was always, "Can our R/C link keep up?" Many missions were aborted, and lines went unflown due to premature R/C link failures. But once we switched to the CROSSFIRE, those problems disappeared. As long as we had video, we had control. And even when the video was gone, we still had control — and telemetry. With the TBS CROSSFIRE LITE, peace of mind comes standard.

• Adaptive power (10mW–2W) & range control
• OpenTX, TBS Tango, Betaflight compatible
• Real-time telemetry & low latency (150Hz)
• Self-healing, frequency-hopping signal
• Easy bind/config with built-in display
• Tiny micro RX, RF firmware updates
• 8ch diversity & 4ch mini RX options
• Head-tracking & mobile telemetry
• Serial, PPM, SBUS, CRSF support
• Long-range, noise-resistant link
• Beacon mode for lost aircraft

• Frequency Bands: 868MHz (EU) / 915MHz (US, Asia, AU)
• Power Consumption: 1.1W (10mW) – 3.2W (2000mW)
• Dimensions: 55 × 89 × 15 mm
• Input Voltage: 3.5–13V
• Weight: 76g

• Download TBS Agent (software updates)
• Download the manual

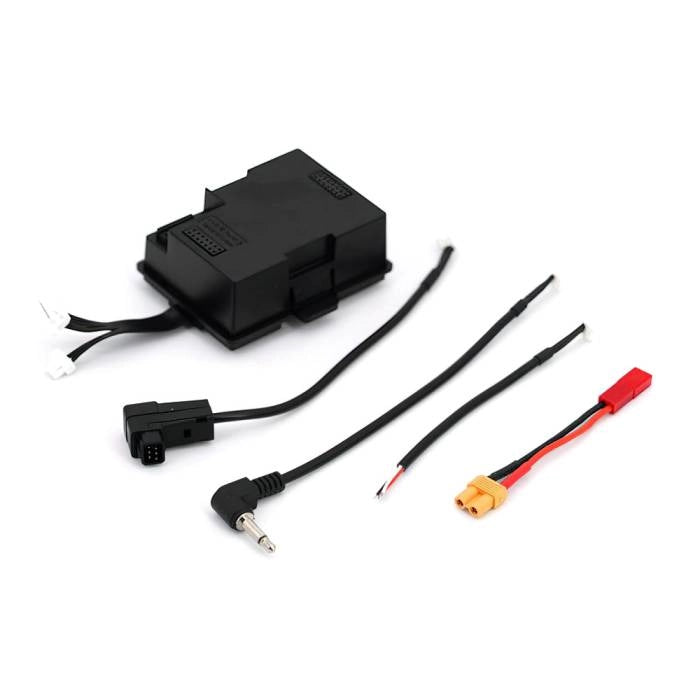

• 1x TBS Crossfire TX LITE Module - Long Range R/C Link - NDAA

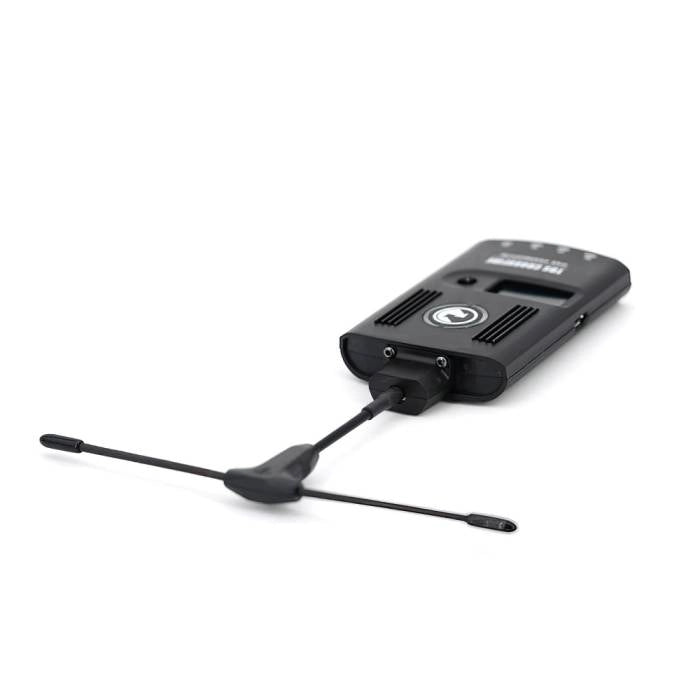

• 1x TBS Crossfire Tuned Tx Antenna
• 1x Crossfire JST to XT30 cable
• 1x Crossfire Graupner cable
• 1x TBS Crossfire JR Adapter
• 1x Crossfire Futaba cable
• 1x Crossfire PWM Pigtail
