Description

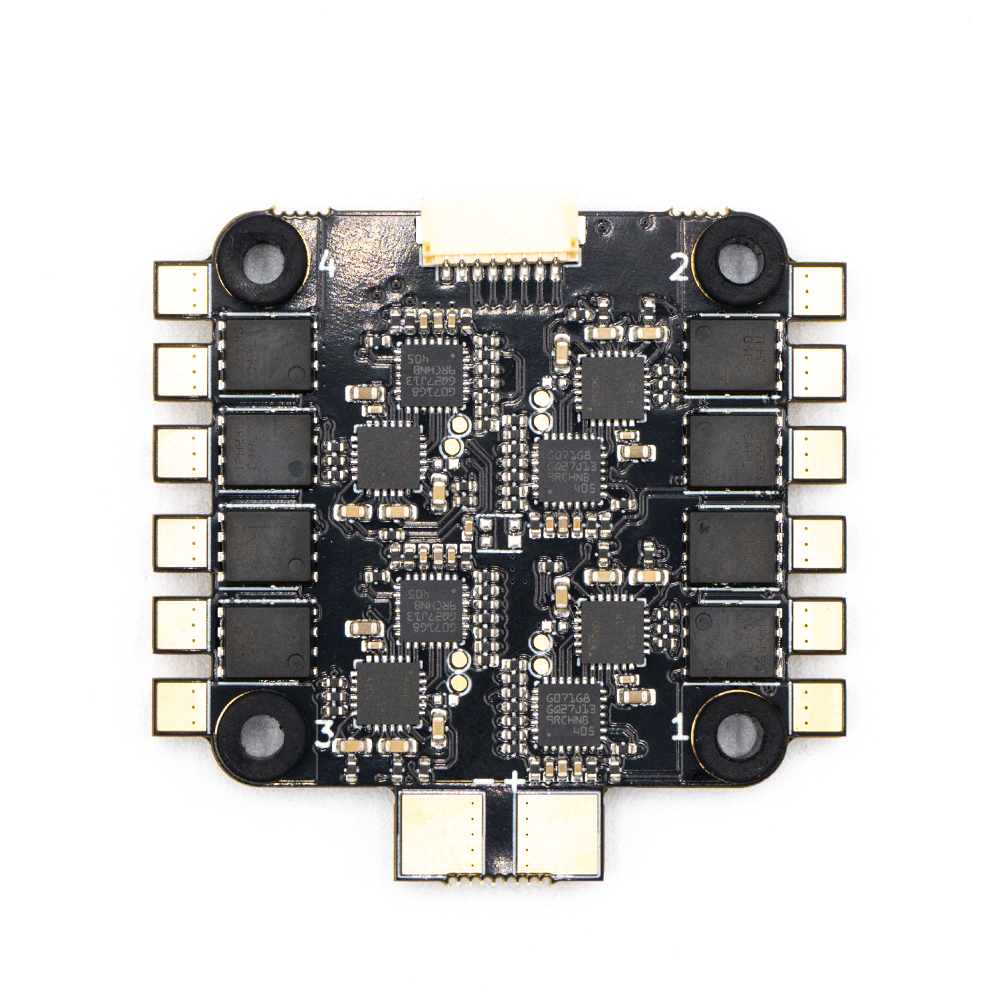

Unlock the ultimate in performance and reliability with the Rotor Riot Brave 55A 4in1 32Bit ESC, designed for serious drone enthusiasts and professionals. Proudly engineered and manufactured in the USA, this ESC offers cutting-edge AM32 firmware for a smooth, responsive flight experience.
Key Features:
-
BlueUAS Approved: Interoperable, NDAA compliant UAS components and software that provide options for Government and industry partners. The Framework provides advanced capabilities to sUAS developers and reduces risk for government customers. It includes critical components, sub-components, modules & software for use in DoD applications.
-
55A Continuous Current: Capable of delivering robust power and stability to your drone, even during high-performance maneuvers.
-
4in1 Design: Simplifies your setup by integrating four ESCs into a single unit, reducing weight and improving efficiency for a cleaner build.
-
32-Bit AM32 Firmware: Powered by advanced 32-bit processing, the AM32 firmware ensures faster, more precise motor control for smoother flight dynamics, exceptional durability, and reduced heat generation.
-
Blue UAS Certified: With Blue UAS certification, this ESC meets stringent requirements for secure and trusted operations, making it suitable for sensitive government or enterprise-level applications.
-
Made in the USA: Designed, tested, and built in the USA, ensuring top-notch performance and quality.
Specifications
- Input Voltage: 3-8S
- Max. Continuous Current: 55A
- Max. Burst Current: 75A
- Firmware: AM32
- Current Sensor: Yes
- Mounting Dimensions: 30x30mm
- Dimensions: 45.4x41x7.3mm
- Weight:
- Support: DSHOT150/300/600/1200
Includes
- 1x Brave 55A 4in1 32Bit ESC - AM32
- 5x Damping Rubbers
- 1x 12AWG-140MM with XT60
- 1x Long FC to ESC Wiring Harness
- 1x Short FC to ESC Wiring Harness
- 1x Capacitor
Customer Reviews
I tried this on a 7in quad 8s. I bench tested the motor and prop for this setup to 38A at max throttle, so 152A total for the whole quad.

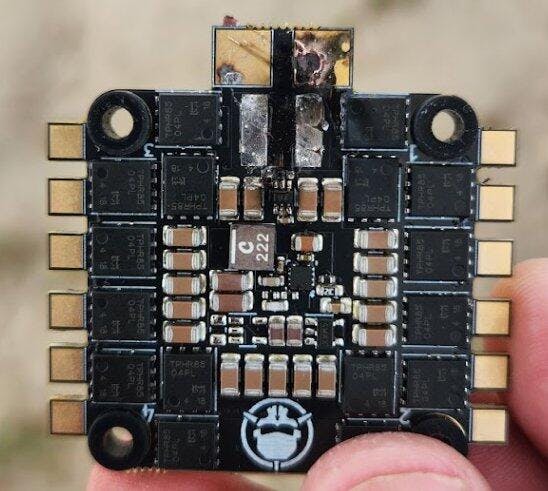

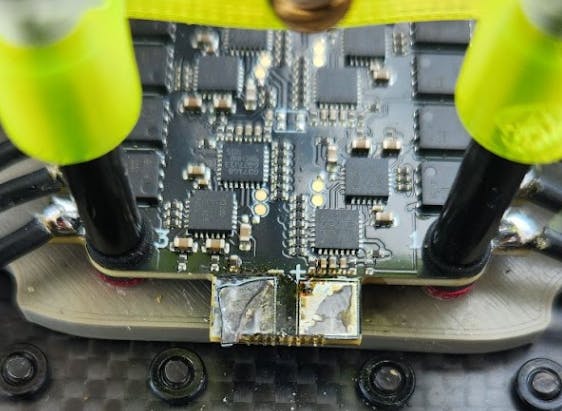

During flight the Brave ESC got so hot that the solder around the current sensing resistor and the battery terminals melted and caused a crash. There was plenty of airflow at 95mph.
This product is NOT able to handle 55A per motor. Know before you buy.
I haven't flown it long but when I was ripping hard, it was going! So far I've only flown on 6s. Needs gummies that work
I installed the 4in1 and one of the ESCs is not responding.
I wired up the ESC and plugged it into my test rig (yes, I have a test rig)
It wouldn't go past 50% power - it shuts down, probably due to some internal heat protection (the AM32 setting is disabled).
I lowered the power to 20% or so, and the motor started oscillating - faster-slower-faster-slower. Lowering the power to 10%, the motor ran for about a minute. At that point the power supply was showing 1.6A, BF was showing fluctuations is current about 0.7-1A, and the ESC was HOT! I took an IR picture and the port being tested on the ESC was 178F! At 1Amp!
Awesome and powerful esc with my fav am32 ….. plug and play and up to 8s, what more do you need? Grab one now!
