X-Air 5.8 MKII Antenna Set for DJI Goggles 2

filler

Price:
$59.99

Stock:
In stock

Description

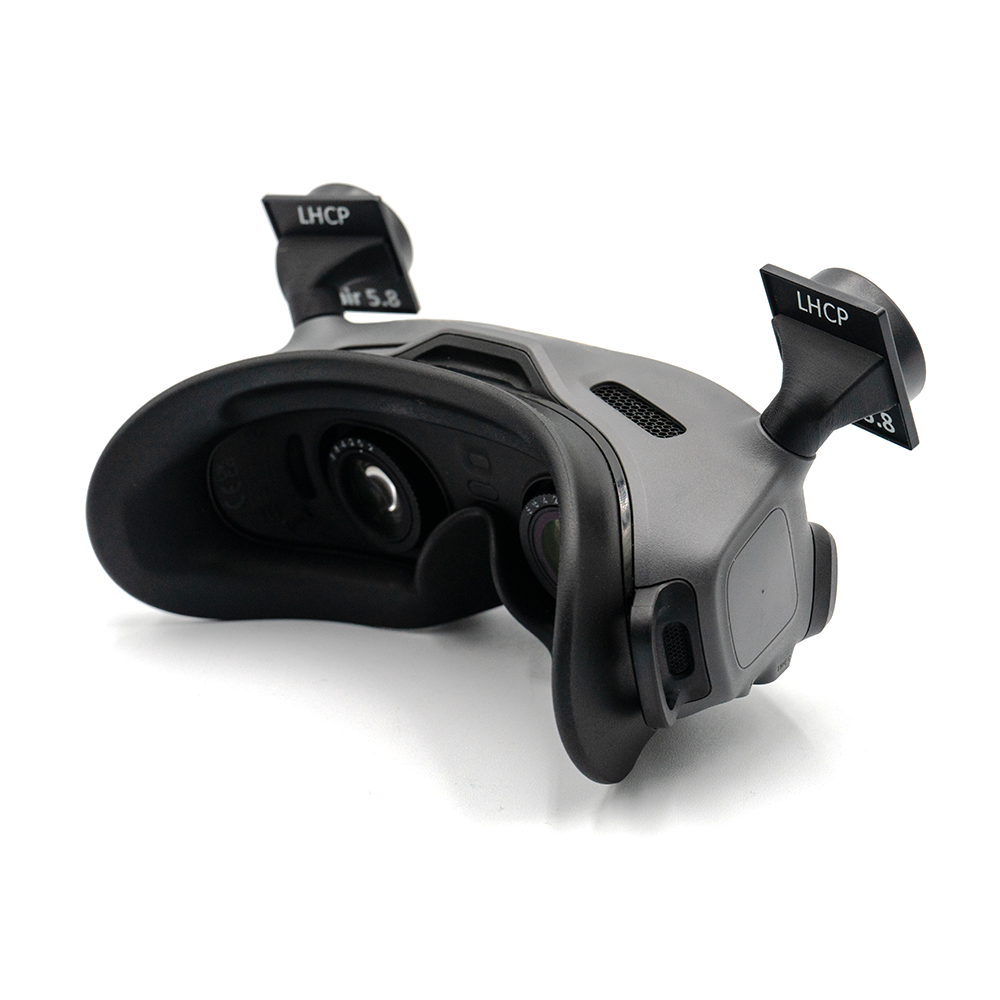

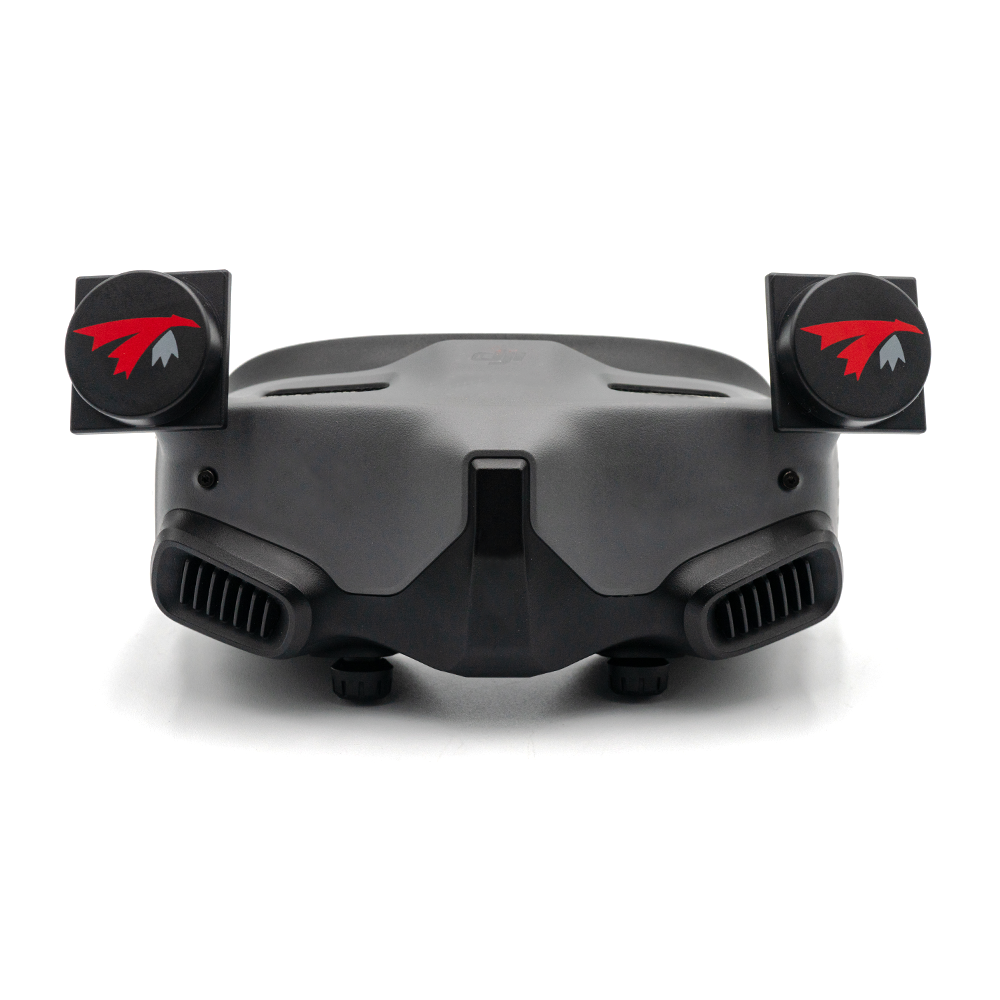

A pair of X-air that fit right on the DJI Goggles 2 for massive range boost. Simply pull out the stock antennas and push the X-Airs in. Their matching interfaces fit the DJI Goggles 2 as if they where from factory.

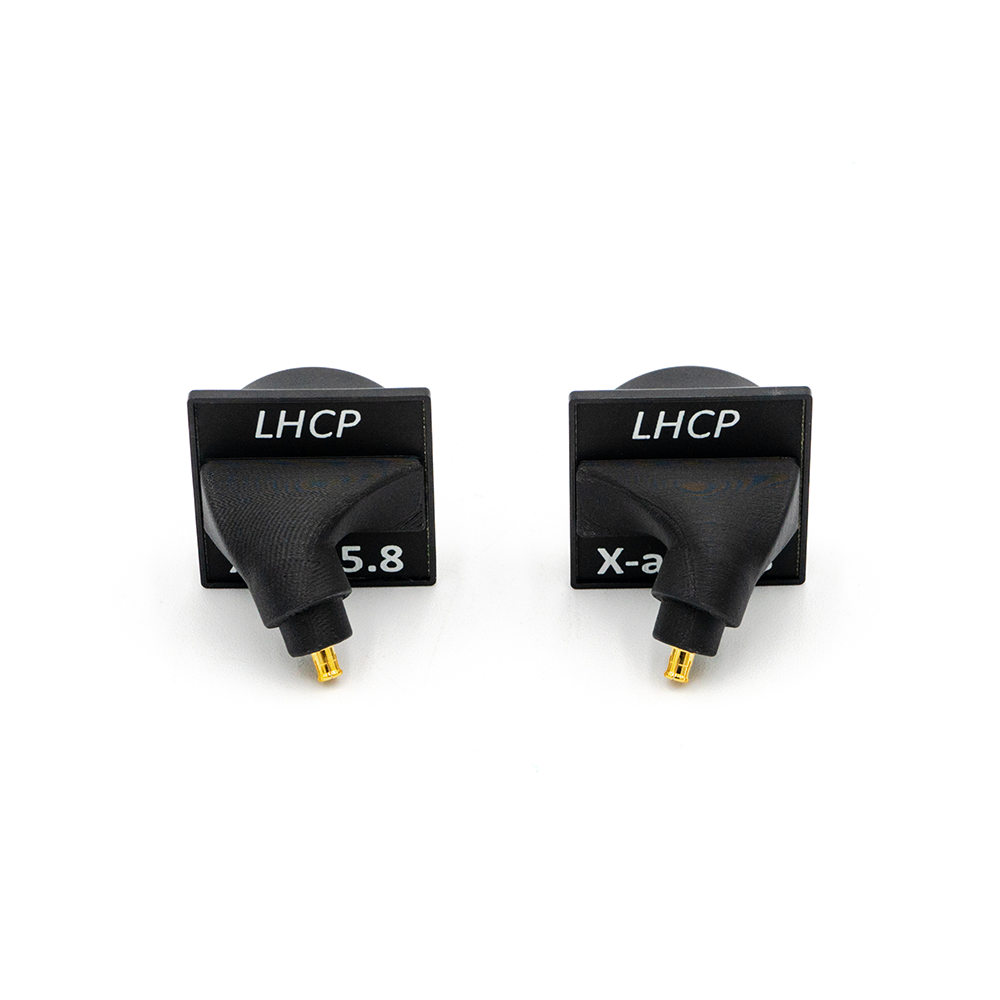

NOTE: The left and right antenna have different interfaces, and can only be installed on the correct side of the goggles.

Specifications

  • Bandwidth: 5.1GHz-6.7GHz
  • Gain: 9.5-10.5 dBic
  • Polarization: LHCP
  • Beam-width*: 120deg
  • Beam-width @-3dB**: 68deg.

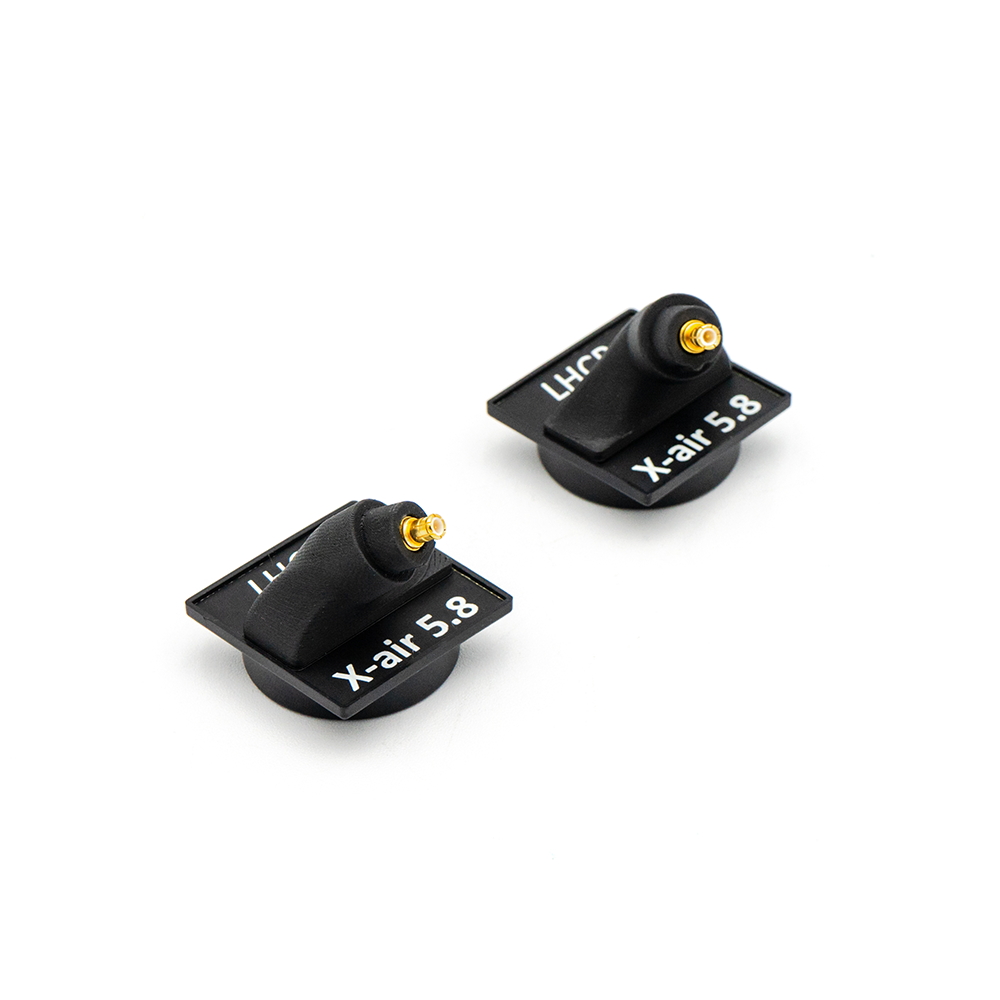

  • Connector: MCX male
  • Dimension: 34 x 34 x 24mm
  • Weight: x.xg

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Includes

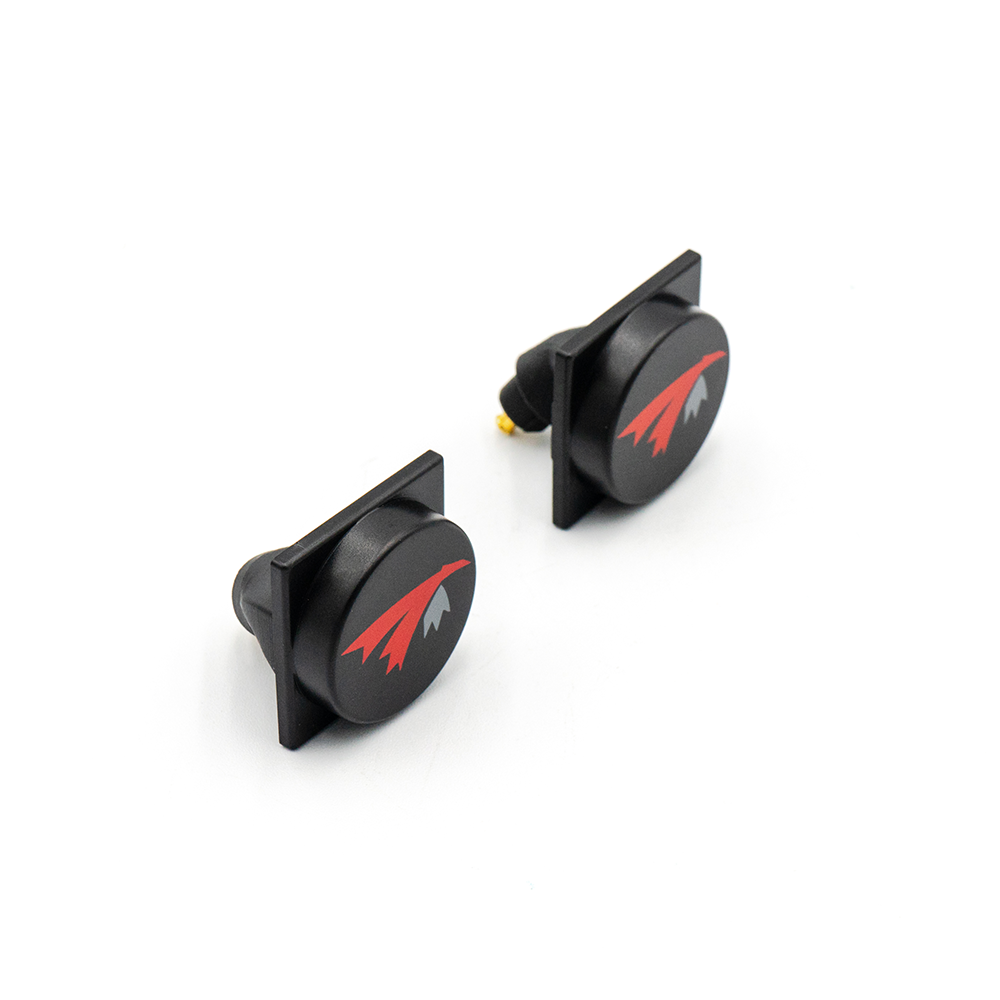

  • 2x X-Air MKII for DJI Goggles 2 (1 Left, 1 Right)

Customer Reviews

Based on 3 reviews
33%
(1)
33%
(1)
0%
(0)
0%
(0)
33%
(1)
K
Kevin Coffee
X-Air 5.8 MKII Antenna Set for DJI Goggles 2

X-Air 5.8 MKII Antenna Set for DJI Goggles 2 extends range in heavly populate suburban area (lots of wifi and cell towers), about 500m beyond stock for Goggles 2 flying a Mini 3 Pro.

V
Victor Montufar
Not worth buying

Stock antennas work better

Hello Victor,

It sounds like you may have a defective antenna as these have been proven to outperform the DJI antennas. Because they are patch antennas you will need to have your goggles pointed in the direction of the drone within the Beam-width*: 120deg Beam-height @-3dB**: 68deg. I have also contacted you directly through Support@rotorriot.com to make sure these antenna are not defective and if they are we will get this issue resolved ASAP.

l
luis vela

X-Air 5.8 MKII Antenna Set for DJI Goggles 2
