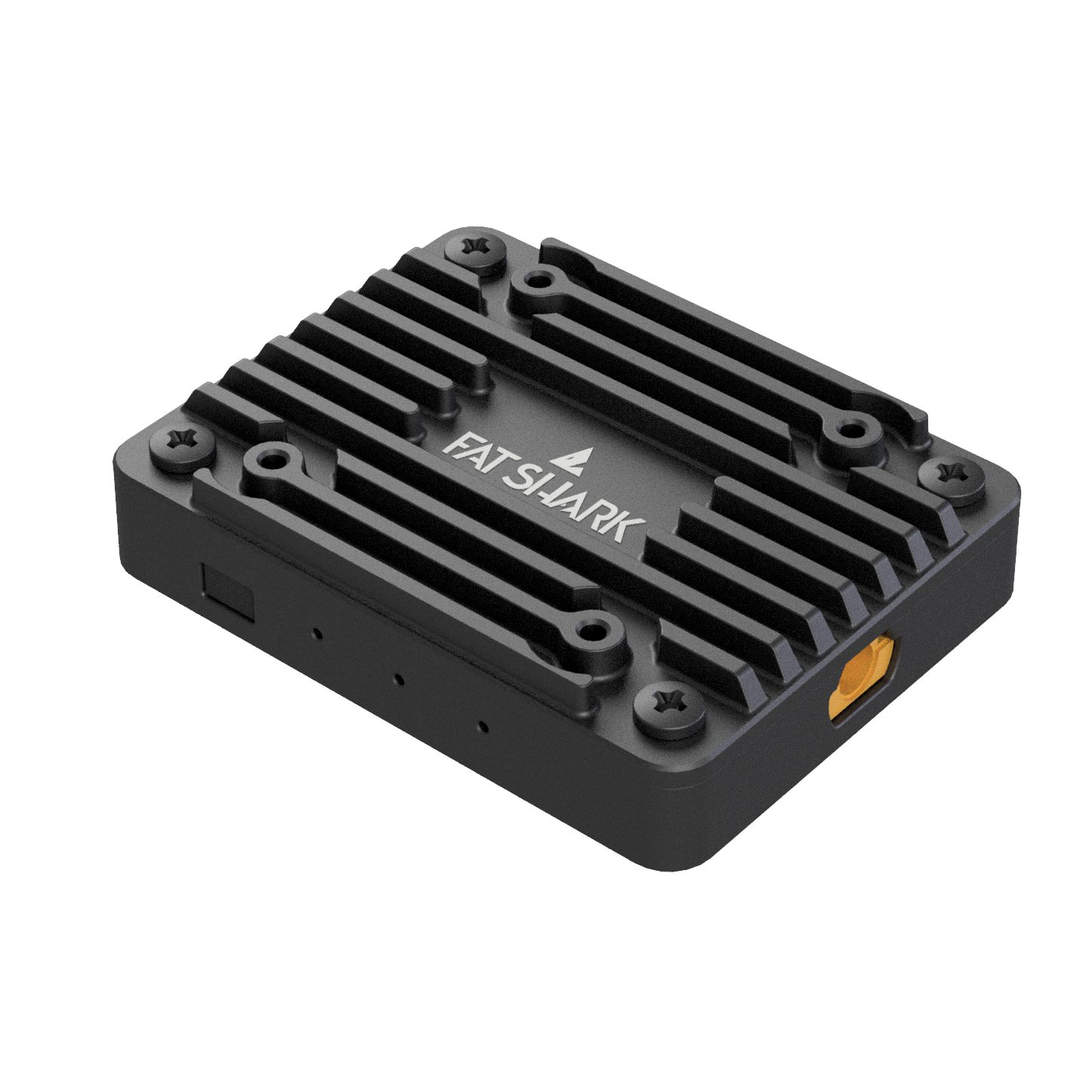

The Fat Shark Aura VTX is a compact, high-performance analog video transmitter built for both professional and hobby use. Blue UAS approved and designed for reliable operation, it delivers crisp analog video with adjustable output power up to 1 watt.
- BlueUAS Approved: Interoperable, NDAA compliant UAS components and software that provide options for Government and industry partners. The Framework provides advanced capabilities to sUAS developers and reduces risk for government customers. It includes critical components, sub-components, modules & software for use in DoD applications.
Specifications
- Input Voltage: 7~36V
- Output Voltage: 5V
- Channels: RaceBand Channels 1-8
- Control Protocol: Tramp
- Power Consumption: 1.2A @ 9V
- Power Output: Pit/25mW/100mW/200mW/500mW/1W
- Antenna Connector: MMCX
- Mounting Pattern: M2 20x20mm
- Dimensions: 37x29x9mm
- Weight: 13g
Includes
- 1x Aura VTX for Analog Video System - NDAA
- 1x MMCX to SMA Pigtail - 100mm
- 1x VTX to Brave FC Cable - 100mm
- 1x VTX to Unpinned Cable - 100mm
- 1x VTX to Camera Cable - 130mm
