Avatar Mini 1S VTX with Nano Camera For Avatar HD Video System
Available in stock (17)
Walksnail Avatar Mini 1S 350mW VTX & Avatar Nano Camera
Check out all our Fat Shark Dominator / Walksnail HD gear!
Features
- Lower latency than the competitor at an average of 22ms
- 6.8g Lightweight Mini VTX great for the 75x Quad
- Walksnail Avatar Mini 1S VTX Module
- Walksnail Avatar Nano Camera
- Built-in 8Gb Internal Storage
- 1080p Screen Resolution
- Switchable Aspect Ratio
- Walksnail IPEX Antenna
- 5.8GHz Frequency
- Onboard DVR
- Canvas Mode
- 170° FOV
- 3.1V-5V
Specifications
AVATAR HD NANO CAMERA
- Resolution: 1080p 60FPS / 720P 120FPS / 720P 60FPS
- Aspect Ration: 16/9 and 4/3 Switchable
- Minimum Illumination: 0.001Lux
- Shutter Style: Rolling Shutter
- Dimensions: 14x14x17mm
- Cable Length: 90mm
- Image Sensor: 1/27"
- Field Of View: 170°
- Aperture: F 2.0
- Lens: 2.1mm
- Weight: 3.5g
AVATAR MINI 1S VTX MODULE
- Transition Power: FCC<25.5dBm / CE <14dBm / SRRC <20dBm / MIC <25dB
- I/O Interface: JST1.0 x 6 (Power In) to JST1.0 x 4 (USB)
- Operational Frequency: 5.725-5.850GHz
- Operating Temperature: -20° to 40°c
- Supported FC Firmware: Betaflight
- Video Resolution: 1080p / 720p

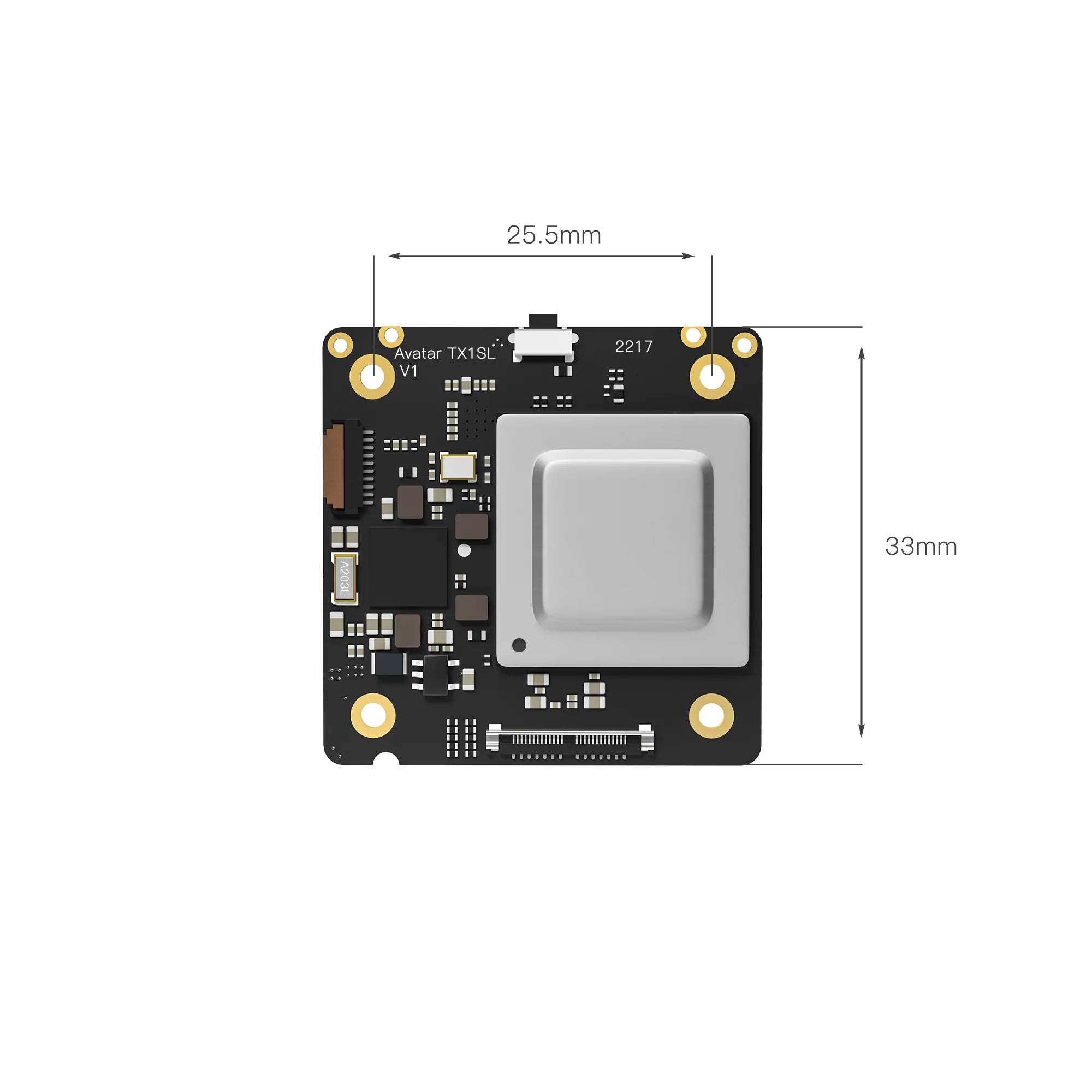

- Dimensions: 33x33x6.5mm
- Antenna Connector: IPEX
- Bitrate: 25mbps/50mbps
- Mounting: 25.5x25.5mm
- Latency: 22ms Average
- Internal Storage: 8GB
- Input Voltage: 3.1-5V
- OSD: Canvas Mode
- Weight: 6.8g
- Channels: 8
WALKSNAIL AVATAR VTX ANTENNA
- Radiation Efficiency: >= 98%
- Bandwidth: 5.6-5.9GHz
- Gain: 2dBi Average
- Polarization: LHCP
- Connector: IPEX
- Length: 90mm
- VSWR: <=1.4
- Weight: 1.5g

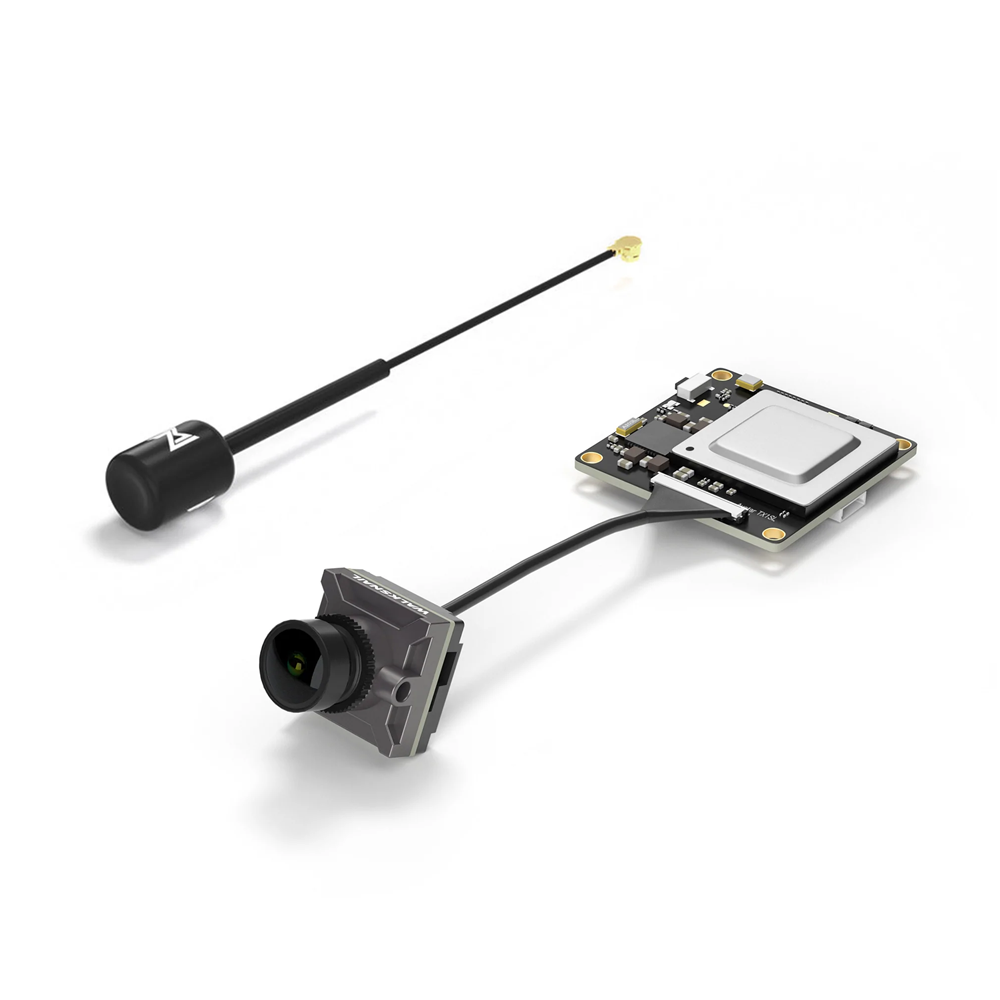

Includes
- 1x Walksnail Avatar HD Nano Camera w/ Avatar Mini 1S VTX
- 1x Walksnail Avatar IPEX Antenna
- 1x 6-Pin Power Cable
- 2x M2 4mm Screws
- 1x 4-Pin USB Cable
