Avatar HD VRX Kit for Avatar HD Video System - Choose Version

filler

Bundle Option: Avatar HD 1S Lite Kit
Price:
$239

Stock:
In stock

Description

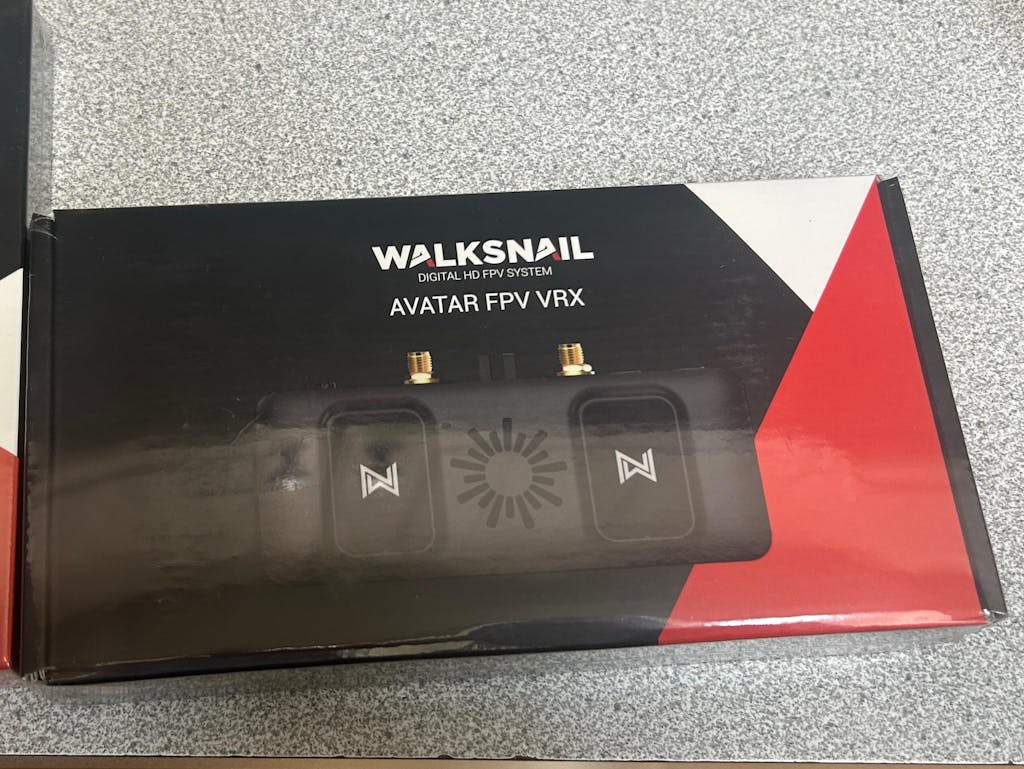

The Walksnail VRX adopts industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080p at 60FPS. The HD picture quality takes you to experience the fun of flying a drone. Featuring a 4-antenna design. 2 directional antennas and the maximum transmission distance is 4km. Walksnail VRX is only 83g and comes with 114x55x22mm; a size easy to carry.

Features

  • Lightweight Design - 83g
  • Max transmission distance of more than 4km
  • Supports 1080P 60FPS or 720P 100FPS
  • Supports Betaflight Canvas Mode
  • Compatible with Analog Goggles
  • HDMI Out




HDMI output ensures you enjoy uncompressed audio and video signals from the Walksnail HD system

Canvas Mode
Supports Betaflight, INAV, and KISS with full OSD.
You can easily adjust the parameters you want by remote control.

Specification

Camera:

Model Avatar nano/Avatar camera
Image Sensor: 1/2.7”1nch
Resolution: 1080P/60fps,720P/120fps,720P/60fps
Ratio: 16/9 4/3
Lens: 2.1mm
FOV: 170°
Aperture: F2.0
Shutter: Rolling shutter
Min.Illumination: 0.001Lux
Weight: 3.5g/6g
Dimensions: 14x14x17mm/19x19x22mm
Coaxial Cable: 90mm/140mm

VTX:

Model Avatar module
Communication Frequency: 5.725-5.850GHz
Transmitter Power: (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC: <25dBm
I/O Interface: JST1.0x6 (Power in) JST1.0x4(USB)
Mounting Holes: 25.5x25.5mm
Dimensions 33x33x9.5mm
Storage: 8GB
Recording: 1080p/720p
Weight: 16g
Operating Temperature: -20-40℃
Channels: 8
Wide Power Input: 6V-25.2V
Supported FC System Betaflight
OSD Canvas mode
Latency Average Delay: 22ms
Antenna: 2x (IPEX)
Goggles Antenna
Model: Red bird
Polarization: LHCP
Bandwidth: 5.6GHz-6.0GHZ
Average Gain: 1.9dBi
Radiation Efficiency: ≥97%
VSWR: ≤1.3
Cross-Polar Rejection: -15to-30dB
Connector: RP-SMA
Dimension: H24.8mm x R15.3mm
Weight: 4.2g

Avatar HD VRX

Model Avatar HD VRX
CommunicationFrequency: 5.725-5.850GHz
TransmitterPower: (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
I/O Interface: HDMI, micro SD card slot, DC5.5x2.1mm
HDMI output: 1080p/60fps, 720p/100fps, 720p/60fps
Power Input: 7-21V(2S-5S)
SD Card Support:256G
System: Avatar HD system

Includes:

Avatar VRX:
RedBirdAntenna x2
HDMI cable x1
2-in-1 DCPowerCable x1

Avatar HD KIT:
4 Pin USB Cable x1
6 Pin Power Cable x1
M2x3/4/5mm Screws x4
M1.2x1.5mm Screws x2

Avatar HD Nano KIT:
4 Pin USB Cable x1
6 Pin Power Cable x1
M2x3/4/5mm Screws x2
M1.2x1.5mm Screws x2
14-19mm Bracket x1

Avatar Mini 1S KIT:
4 Pin USB Cable x1
6 Pin Power Cable x1
M2x3/4mm Screws x2
M2x16mm Screws x4
M2 Screw nut x4
2.1x3.4x1mm Gasket x5

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
K
Kriss fly
Kriss fly

Hey all Kriss fly flying in the chemical wasteland where your food is grown. Also known as organic clean food connection on YouTube. I have not been on my Kriss fly drone channel for years because I nearly died from chemical spray drift. GMO corn chemicals. You know our wonderful gasoline taxpayers get to pay for the corn to be grown and then the taxpayers get to pay for the refineries that are failing.
Things have changed in the FPV world. I remember importing my first pair of fat shark gargles. Still have them some of the first pairs in history:-) The walk, snail updating and binding is fantastic easy to use. But flying in the house getting blips of blackout occasionally is a disappointment. My other problem is my equipment’s been laying around for years while I was laying around. And I’m running it with a pair of sky zone 02X :-) so I have the fat shark goggles coming. Hope that improves things. Go grow something worth eating because you’re worth it.

M
METALGEAR68
Must Have addition to goggles

Having the flexibility to fly multiple platforms the quality of the video the ease of set up makes it a must have item whether you fly analog or another digital platform.
