Description
The RadioMaster Bandit BR1 Expresslrs Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR1 ExpressLRS receiver also features superior resistance to vibration.

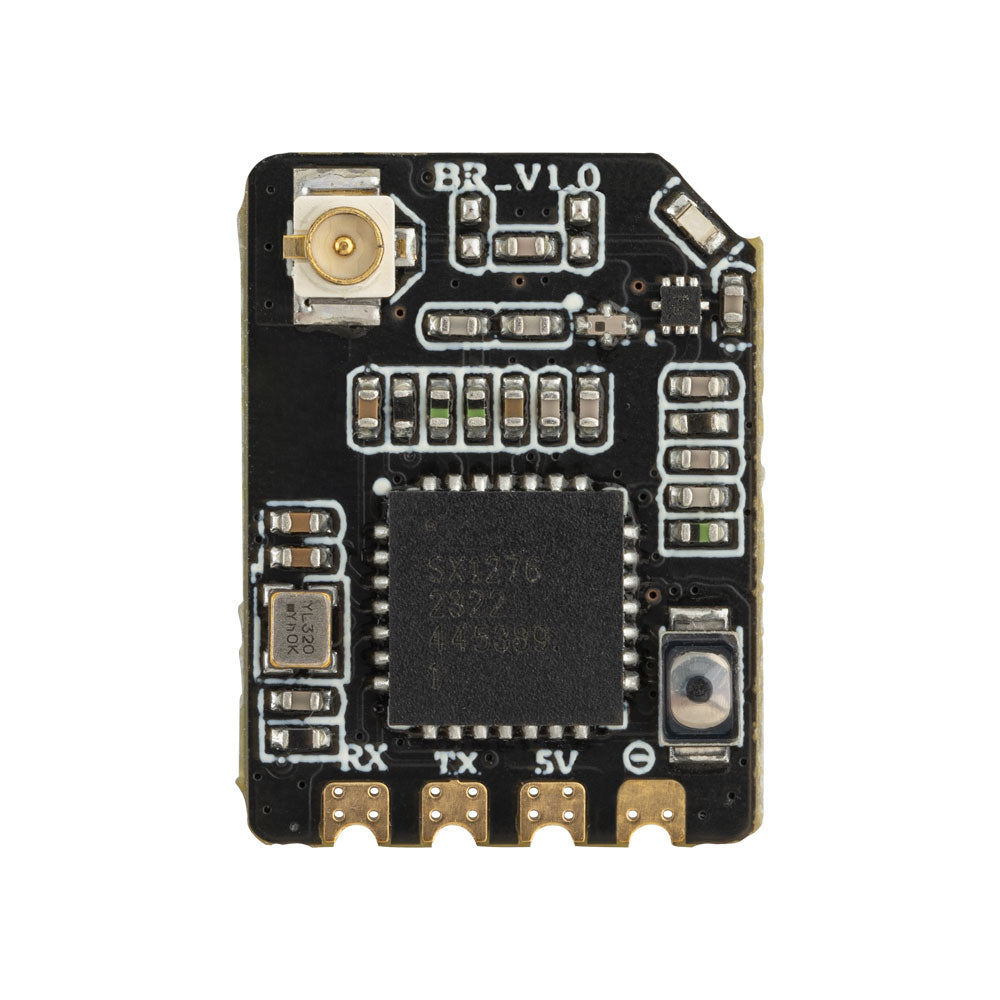

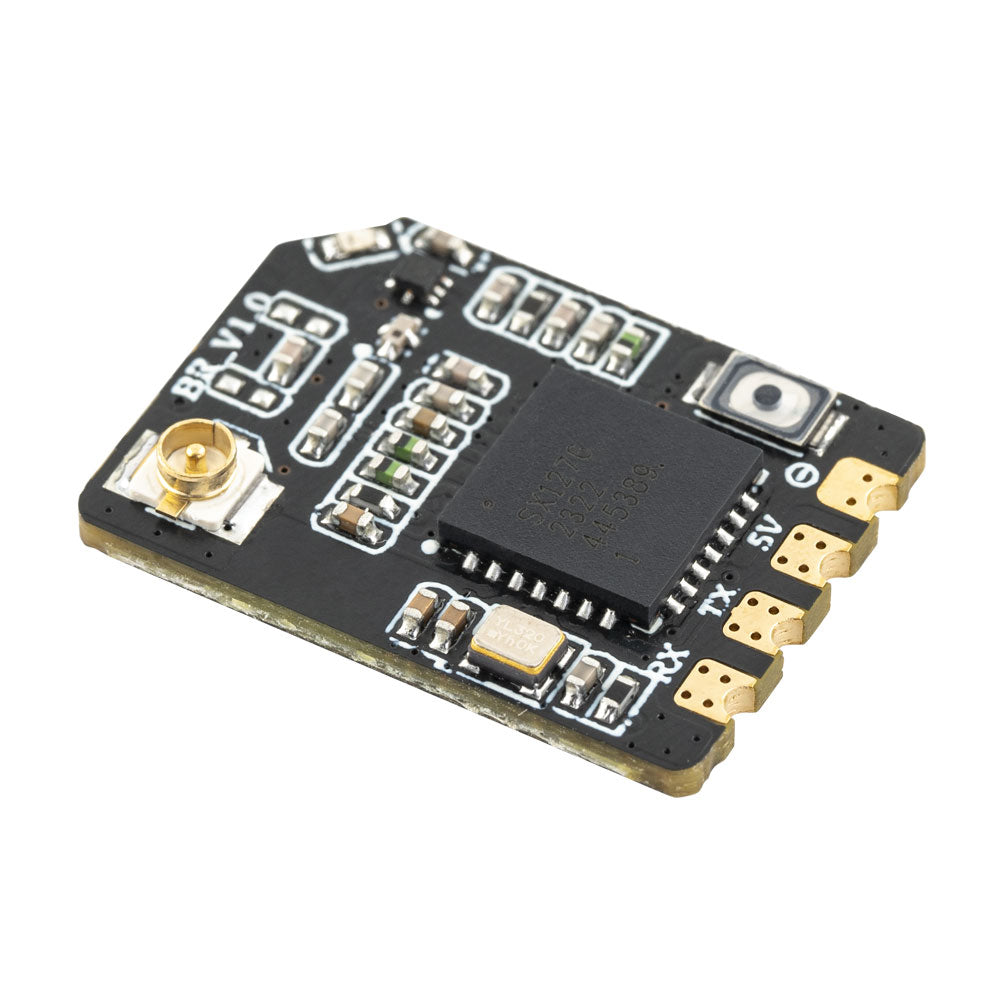

Bandit BR1 Expresslrs Receiver incorporates an ESP8285 MCU and SX1276 RF chip, renowned for its low latency, high sensitivity and exceptional long-range performance. The included T Antenna and Y Antenna designed with high-sensitivity are both lightweight and easy to install depending on your application.
Due to the low-latency and high-refresh-rate RF module, the Bandit BR1 Expresslrs Receiver is ideal for FPV freestyle or Long Range.
Features
- Built-in TCXO oscillator
- Utilizing 0402 components, superior resistance to vibration
- Lightweight and compact design

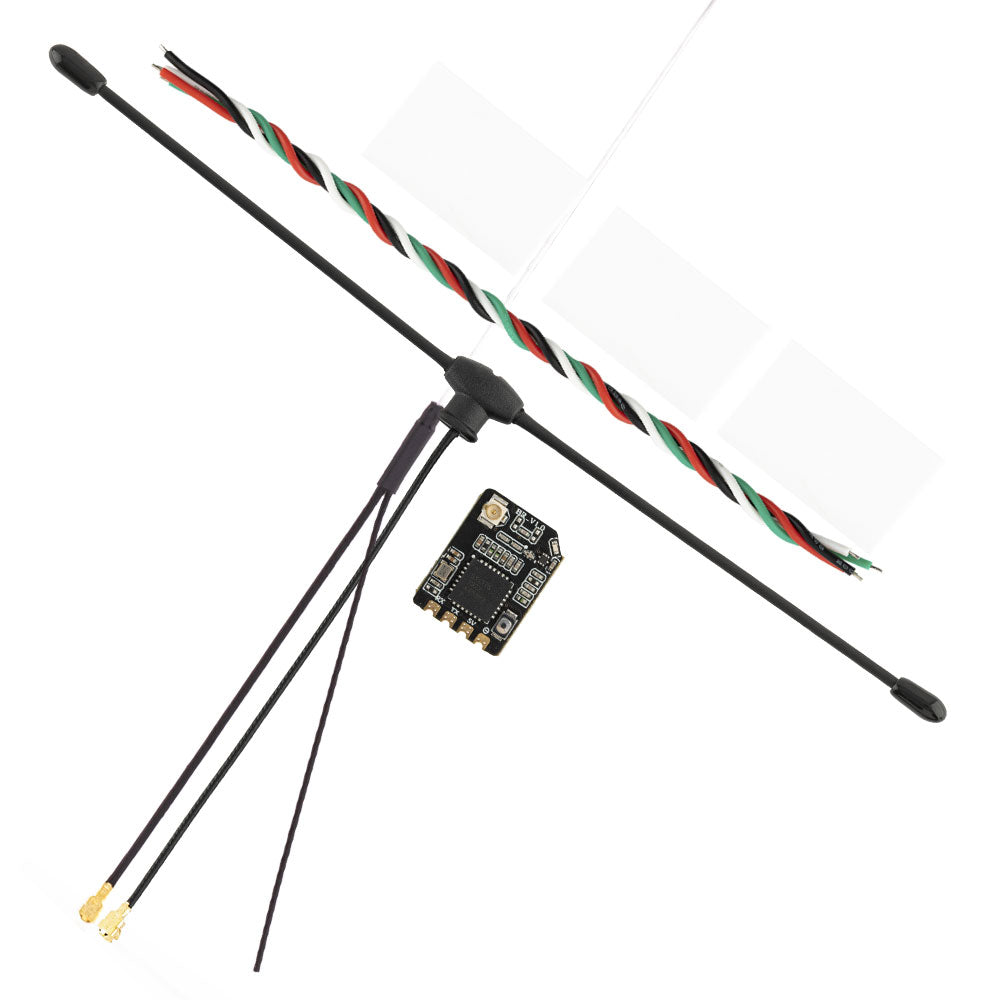

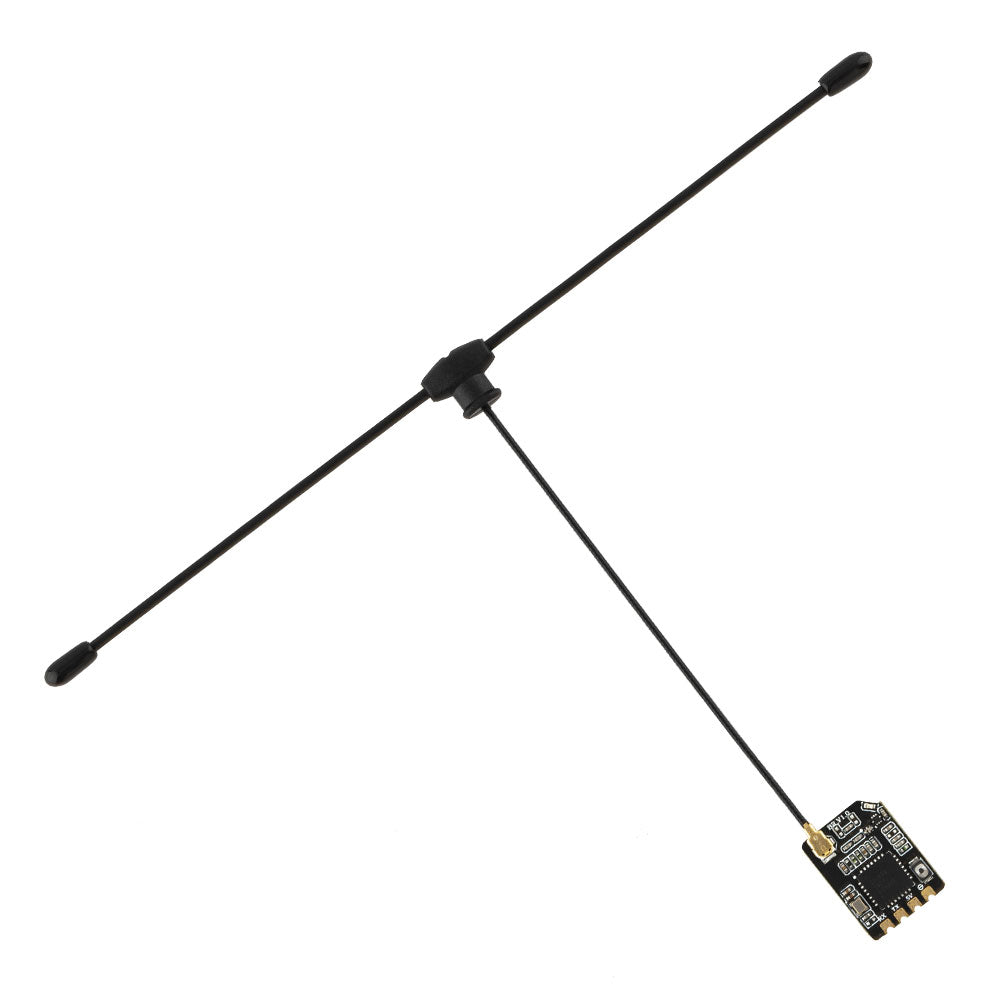

- High-sensitivity 915/868MHz T Antenna and Y Antenna included
Specifications
- Item: Bandit BR1 Expresslrs Receiver
- Regulatory Domain: FCC915
- MCU: ESP8285
- RF Chip: SEMTECH SX1276
- Telemetry RF Power: 50mw/17dbm
- Antenna: 915/868MHz T Antenna & Y Antenna
- Antenna Interface: IPEX1
- Bus Interface: CRSF
- Working Voltage: DC 5.0V
- Dimension: 18*13.8mm
- Weight: 1.7g (with Y antenna)/2.9g (with T antenna)
Dimensions
Bandit Series
- Bandit ExpressLRS RF Module
- Bandit Micro ExpressLRS RF Module
- Bandit Nano ExpressLRS RF Module
- Bandit BR1 Receiver
- Bandit BR3 Receiver
- Bandit MOXON Antenna
- Bandit T Antenna
- UFL 915Mhz T & Y Antenna for BR Series Receivers
Includes
- 1 * Bandit BR1 Expresslrs Receiver
- 3 * Receiver Shrink Tube Sleeves
- 1 * Y Antenna (Installed on Receiver)
- 1 * T Antenna
- 1 * CRSF Wire
- 1 * Manual
