Description

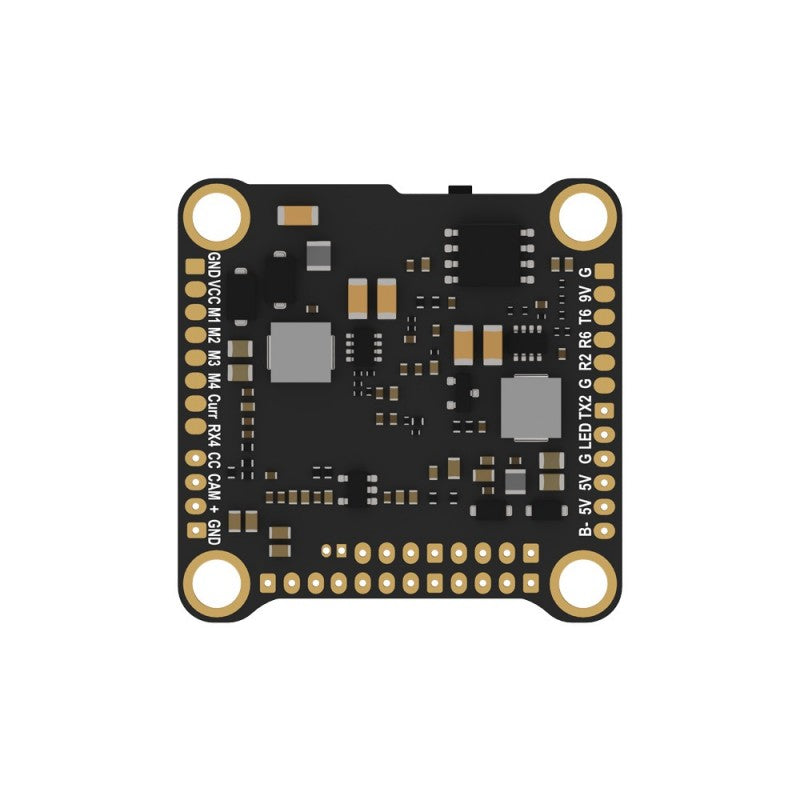

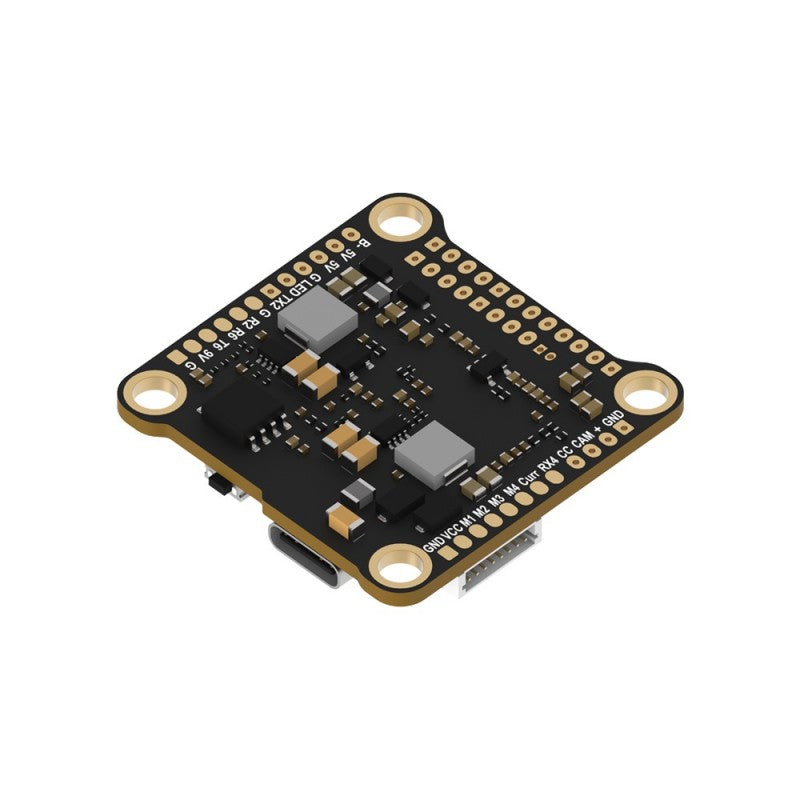

Foxeers's V3 F7 FC has a clean layout with some quality components. No more worrying about lifting pads during crashes, this FC has through holes for every solder point.
This is a replacement Flight Controller for The Moxy Pro-Spec Built & Tuned.
Pairs best with the Foxeer Reaper 128K 65A ESC.
This is a replacement Flight Controller for The Moxy Pro-Spec Built & Tuned.
Pairs best with the Foxeer Reaper 128K 65A ESC.
Specifications:
- MCU: STM32F722RET6
- Gyro: BMI270
- Power Supply: 3~6S (11V~30V)
- BEC Output: DC5V/3A; DC9V/3A
- OSD: BF OSD
- Black Box: 16M Flash Memory
- UART: 6
- ESC Telemetry: RX4
- Buzzer: Yes
- Smartaudio: YES
- LED: 1 Set 2812 LED
- USB: Type-C
- X8 Support: Need CLI
- Firmware: FOXEERF722V3
- Size: 37x37mm
- Mounting Hole: 30.5x30.5mm, Φ4mm
- Weight: 8g
Includes:
1x Foxeer F722 V3 Flight Controller
4x Silicone Grommets
Specifications
- CPU: STM32F722RET6
- Power Supply: 3~6S Lipo (11V~30V)
- BEC Output: DC5V/2A; DC9V/2A
- OSD: BF OSD
- Black Box: 16M Flash Memory
- UART: 5 Set
- ESC Telemetry: RX4
- Buzzer: YES
- Smart Audio: YES
- LED: 4 Set 2812 LED
- USB: Micro USB
- Fireware: FOXEERF722V2(FOXE)
- Size: 37X33mm
- Mounting Hole: 30.5X30.5mm,Φ4mm
- Weight(g): 7.6g
- Working Temperature: -20℃ ~ +55℃
- Working Humidity: 20～95%
- Storage Temperature: -20℃ ~ +70℃
Includes
- 1x Foxeer F722 V2 30x30 Flight Controller
