Description

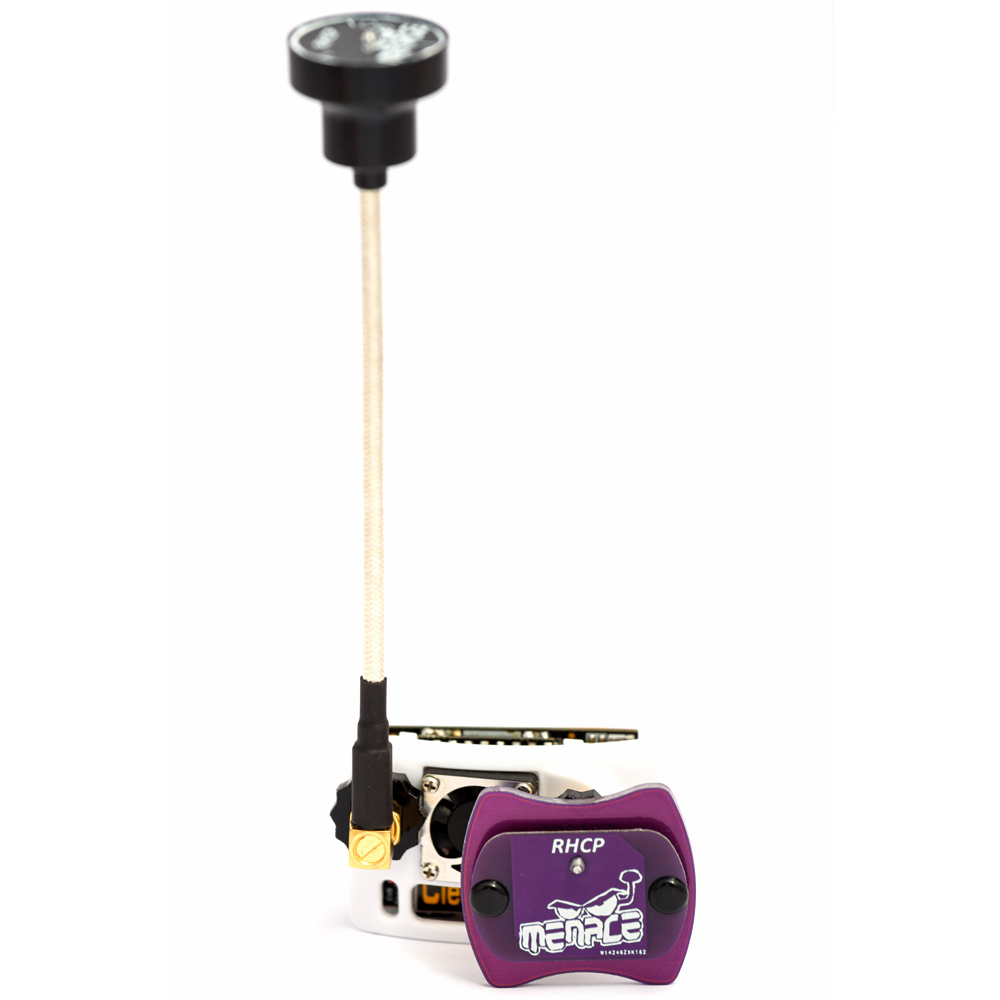

The Menace FPV Goggle Pack Antennas includes our smallest patch along with our tallest Omni antennas to get you the best experience in FPV straight out of the box.
Take the guesswork out of selecting your goggle receiving antenna’s and use this proven combination of patch and Omni over the head matched pair.
If you starting out or looking to upgrade your FPV setup then the Goggle Pack is for you.
The PICOpatch antenna is our smallest receiving patch that is big in performance.
The Periscope Antenna gets the active part of the antenna above your head for a clearer signal for not only flying behind yourself but in all directions.
Specifications
Pico Patch
- Frequency Range: 5645 – 5945 Mhz
- Gain: 9.4 dBi
- Beam Width: 61° at -3db points
- (Check polar plot comparison invader actual angular db)
- Left or Right Hand Circular Polarised (LHCP or RHCP)
- SMA Connector (Fits Fatshark Goggles)
- Dimensions: 37.0mm x 33.6mm x 19.2mm
- Weight: 10 grams
Periscope Omni
- Center frequency 5.8 GHz
- Frequency Range: 5550 – 6050 MHz
- Matching S11 < -20dB, VSWR <1.22
- Gain: 1.09dB with efficiency: 92%
- Axial Ratio <1.3
- Beamwidth: 360 degrees
- Left or Right Hand Circular Polarised ( LHCP or RHCP)
- SMA 90 Degree Connector
- Height: 138mm
- Weight: 14grams

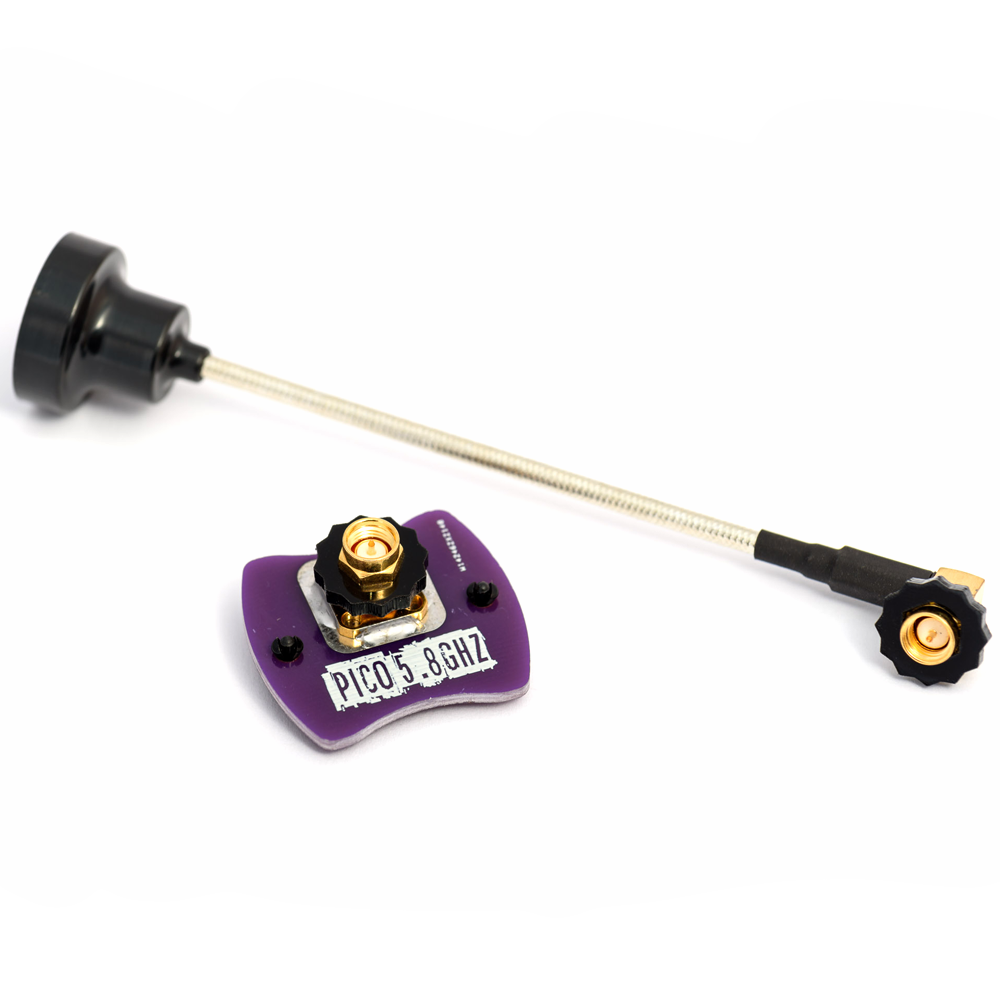

Includes
- 1x Pico Patch Antenna
- 1x Periscope Omni Antenna
- 2x SMA finger spinners
