Description
The Ghost is the next generation R/C control system from ImmersionRC. From the engineers who changed the Analog FPV world with rapidFIRE, comes the Ghost to set a new bar for R/C Control technologies. Go faster, further, and safer.
Features
- 2.4GHz ISM Band
- ‘R Compatible Transmitter with Diversity Transmission
- One Of The Smallest Receivers On the Market
- Chirp Spread Spectrum, with Adaptive FHSS
- Crazy Race Performance, 222.22Hz updates
- ~4ms End to End Latency, with OpenTx Integration
- More range than most pilots will ever need
Specifications
- Frequency Range: 2406 - 2479MHz
- Modulation: Chirp Spread Spectrum + Adaptive FHSS
- Binding: Bidirectional with confirmation and protocol negotiation
- RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come

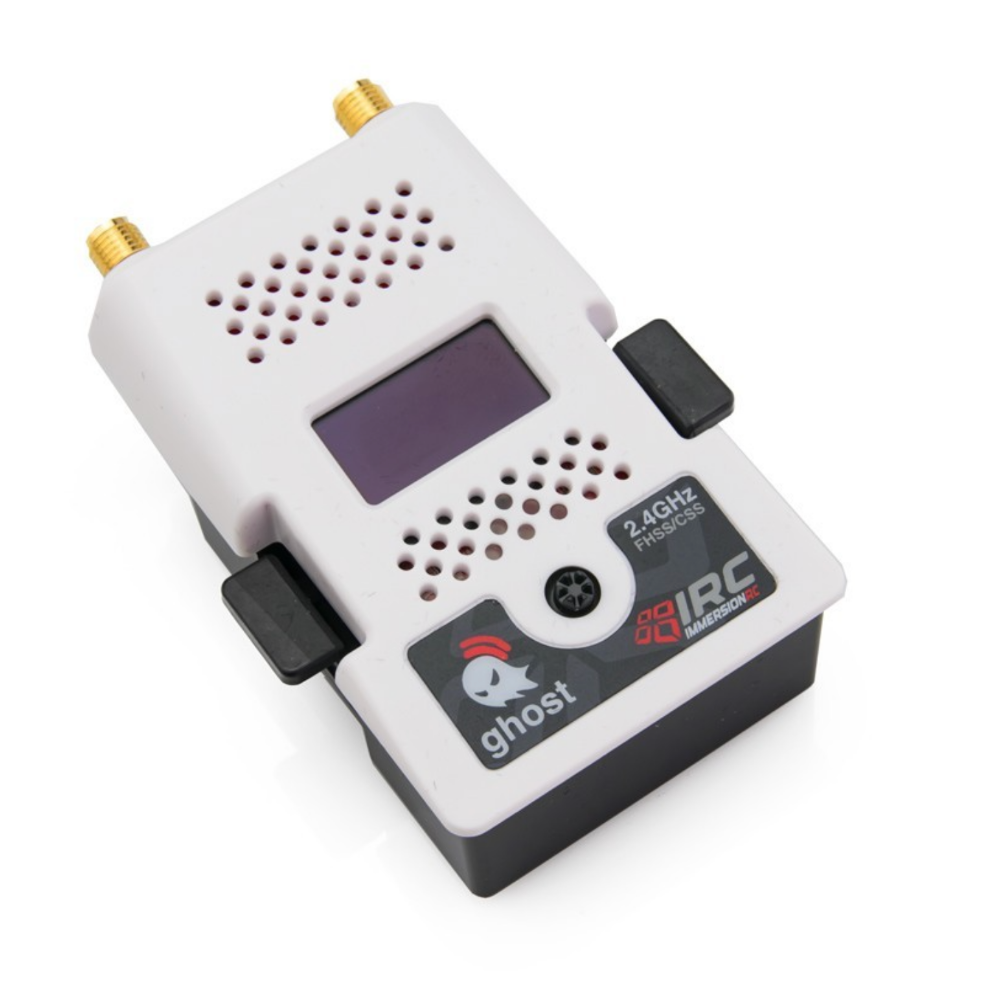

JR Module Transmitter Specifications
- Uplink Tx Power: 16uW - 350mW (+/- 0.5dB)
- Frame Rate: 222.22Hz (purerace), 166Hz (race), 62Hz (normal), 15Hz (long range)
- Format: Standard JR Module: tested with FrSky Taranis™, and RadioMaster™ radios
- Compatibility: Any R/C Tx which accepts JR modules (Taranis, etc. )
- Serial Formats: SBus, GHST 1 - Auto-Sense
- Firmware: USB Upgradable(with OTA updates for receivers)
- Power Supply: 6V-20V, 1.75W @ 400mW, ~250mA at 7.4V
For the latest firmware and or manuals please click here
