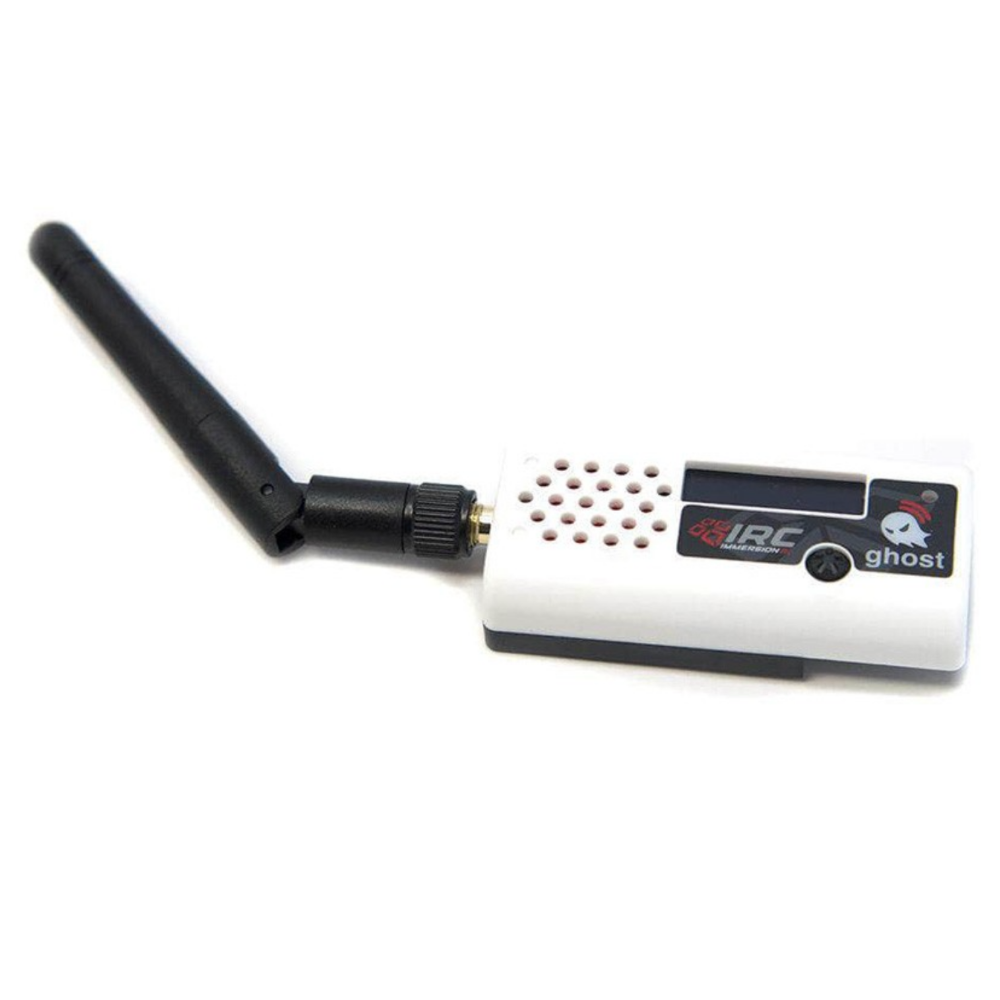

IRC Ghost Modular Transmitter Lite 2.4GHz

The ImmersionRC Ghost Lite Next Gen 2.4GHz RC Transmitter Module is designed for both reliable control at extreme range, and extremely low latency with a best-in-class frame rate for the Race circuit.

Features

• 2.4GHz ISM Band
• Standard 'Lite' Module:, tested with FrSky XLite™, and FrSky X9 Lite radios
• One Of The Smallest Receivers On the Market
• Chirp Spread Spectrum, with Adaptive FHSS
• Crazy Race Performance: 250Hz,
• ~4ms End to End Latency, with OpenTx Integration

Specifications

• Brand: ImmersionRC
• Item Name: IMMERSIONRC GHOST LITE TX MODULE
• Frequency Range: 2406 - 2479MHz
• Modulation: Chirp Spread Spectrum + Adaptive FHSS
• Binding: Bidirectional with confirmation and protocol negotiation
• RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
• Uplink Tx Power: 16uW - 350mW (+/- 0.5dB) 3
• Frame Rate: 250Hz (purerace), 166Hz (race), 62Hz (normal), 15Hz (long range)
• Format: Standard 'Lite' Module: tested with FrSky XLite™, and FrSky X9 Lite radios
• Serial Formats: SBus, GHST, Auto-sense
• OpenTx support: 2.3.11 release, or 'high performance' synced version of 2.3.11
• Firmware: USB Upgradable(with OTA updates for receivers)
• Power Supply: 6V-20V, 1.75W @ 350mW, ~250mA at 7.4V

Includes

• 1 x ImmersionRC Ghost Lite Tx Module

For the latest firmware and or manuals please click here

Note: All Ghost receivers currently have multiple binding methods. It is recommended to bind via SRXL2 on a standard UART, the Ghost Protocol will be available with the release of OpenTX3.4.
