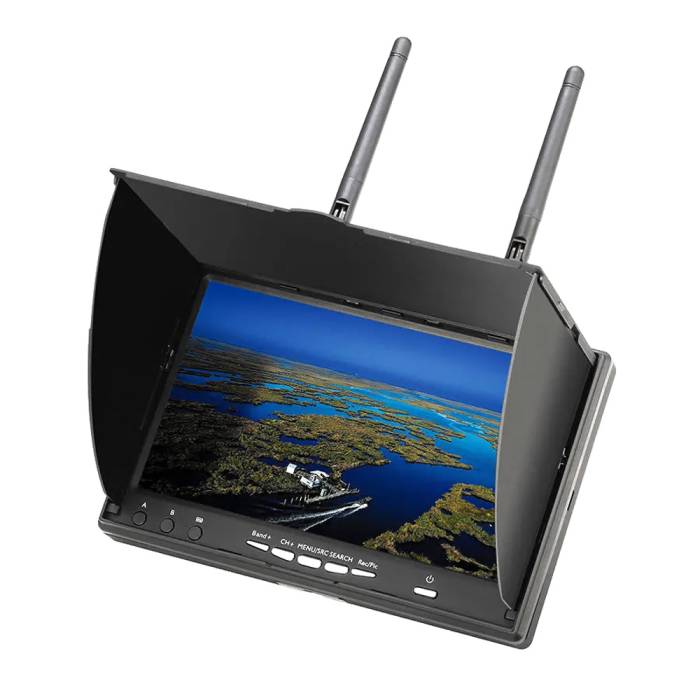

LCD5802D 7" LCD FPV Monitor

A super convenient analog LCD monitor with diversity receivers, internal battery, tripod mount & more!

Features

• Simple operation - A key to automatic signal search
• Built-in battery, easy to carry, great for outdoor use
• Built-in Dual Receiver for best reception
• Speakers allow headphone-free use
• 5 Bands and a total of 40 Channels
• No 2.4GHz R/C Radio interfference
• AV Receiver with Diversity inputs
• Small, lightweight, durable
• Work status OSD display
• Dual-buffered AV outputs
• DVR function

Specifications

• Receivers: Built-in 5.8Ghz Dual diversity receiver automatically for best reception

• Work status OSD display: RSSI indication, battery indicator; Channel indication

• Output/Input: Built-in 2CH 5.8Ghz AV output and 1CH AV input

• Screen type:TFT LCD Screen/long-life- LED backlight

• Antennas Connectors: RP-SMA male (inner hole)

• View Angle: 140/120degree (Horizontal/Vertical)

• Battery charging current : 850mA @12V (max)

• Connectors: RP-SMA female(outer needle)

• Memory: Support up to 32G, C10 SD Card

• Language: Supports Chinese and English

• Power Consumption: max 650 mA @12V

• Working temperature: -10℃~+ 65 ℃

• Battery: 7.4V 2000mAh (Built-in)

• Item Name: LCD5802D Monitor

• Size: 180mm x 120mm x 25mm

• Working Voltage: DC 7~16V

• Sunshield Height: 110mm

• Brand Name: Eachine

• Resolution: 800*480

• Frequency: 5.8GHz

• Format: JPEG, AVI

• Speakers: Yes

• Screen size:7”

• Channels: 40

• DVR: Yes

• Note: This device cannot receive 2 different channels at the same time.

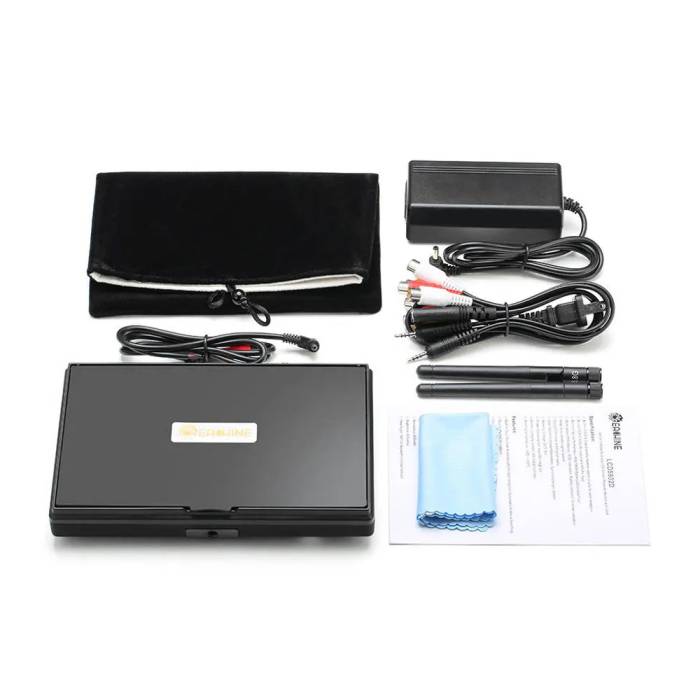

Includes

• 1x 7" LCD Screen Receiver Monitor with built-in Rechargeable Battery
• 2x 5.8Ghz Antenna
• 1x AV Cable
• 1x Charger
