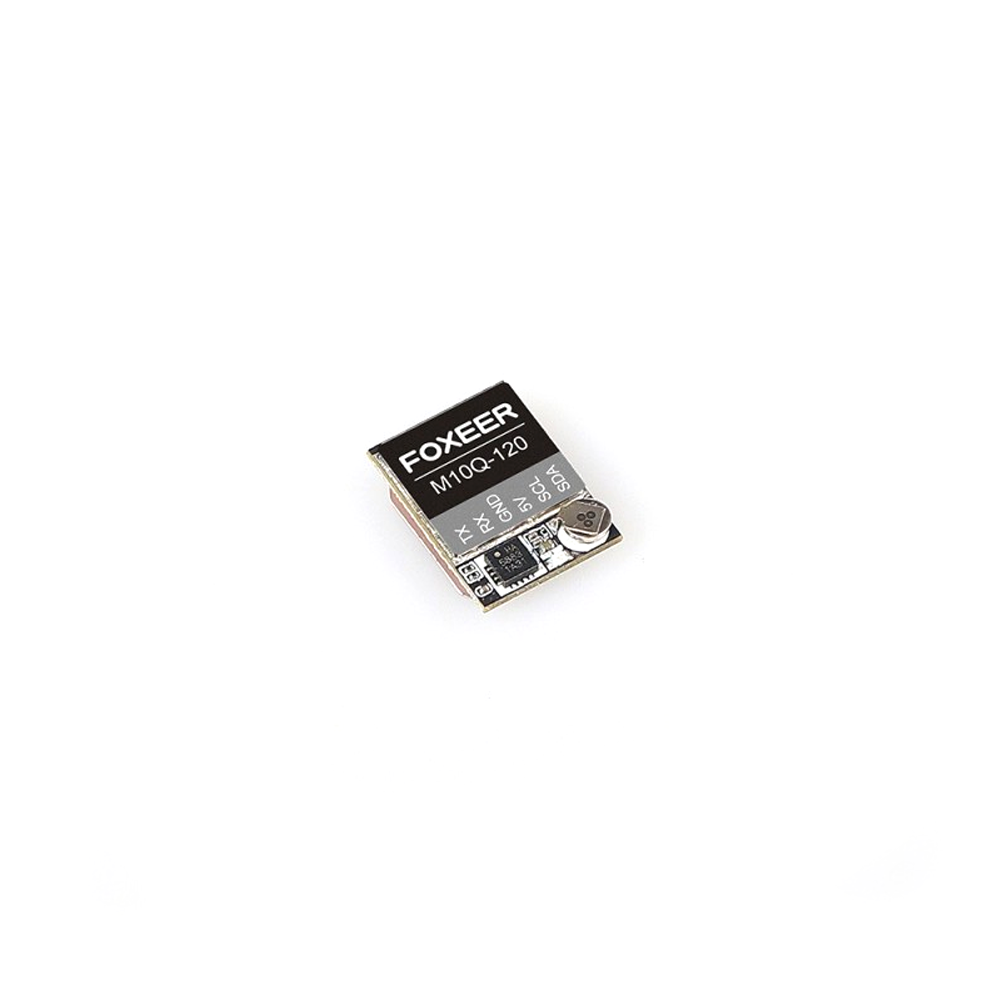

M10Q-120 GPS Module

filler

Price:
$19.90

Stock:
In stock

Description

M10Q-120 is based on the UBLOX M10 chip, featuring fast and precise positioning. The same great performance as the M10Q-180 in a smaller package.

Specifications

  • Chip: M10(10th Generation Chip)
  • Frequency: GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
  • Input Voltage: 5V
  • Antenna: Ceramic
  • Channels: 72
  • Battery: Built-in
  • Compass: QMC5883
  • Compass Orientation: Plug facing direction of flight and obviously antenna up, BF: CW 180° Flip
  • Baud Rate: 115200bps
  • Protocol: Dual NMEA/UBLOX
  • Output Frequency: 1Hz-10Hz,10Hz default
  • Speed Accuracy: 0.05m/s
  • Horizontal Positioning Accuracy: 2D ACC1.5m(outdoor)
  • Receiver Sensitivit:y Trace -166dBm; Capture -160dBm
  • Dynamic Characteristics Height: 50000m; Speed 500m/s; Acceleration 4G
  • Operating Temperature: -40C-+85C
  • Storage temperature: -40C-+105C
  • Weight: 2.7g
  • Size: 12.5*17*5mm


    Customer Reviews

    Based on 2 reviews
    50%
    (1)
    50%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    K
    Kyle McLain
    GPS auto landing success on BF. 4.5

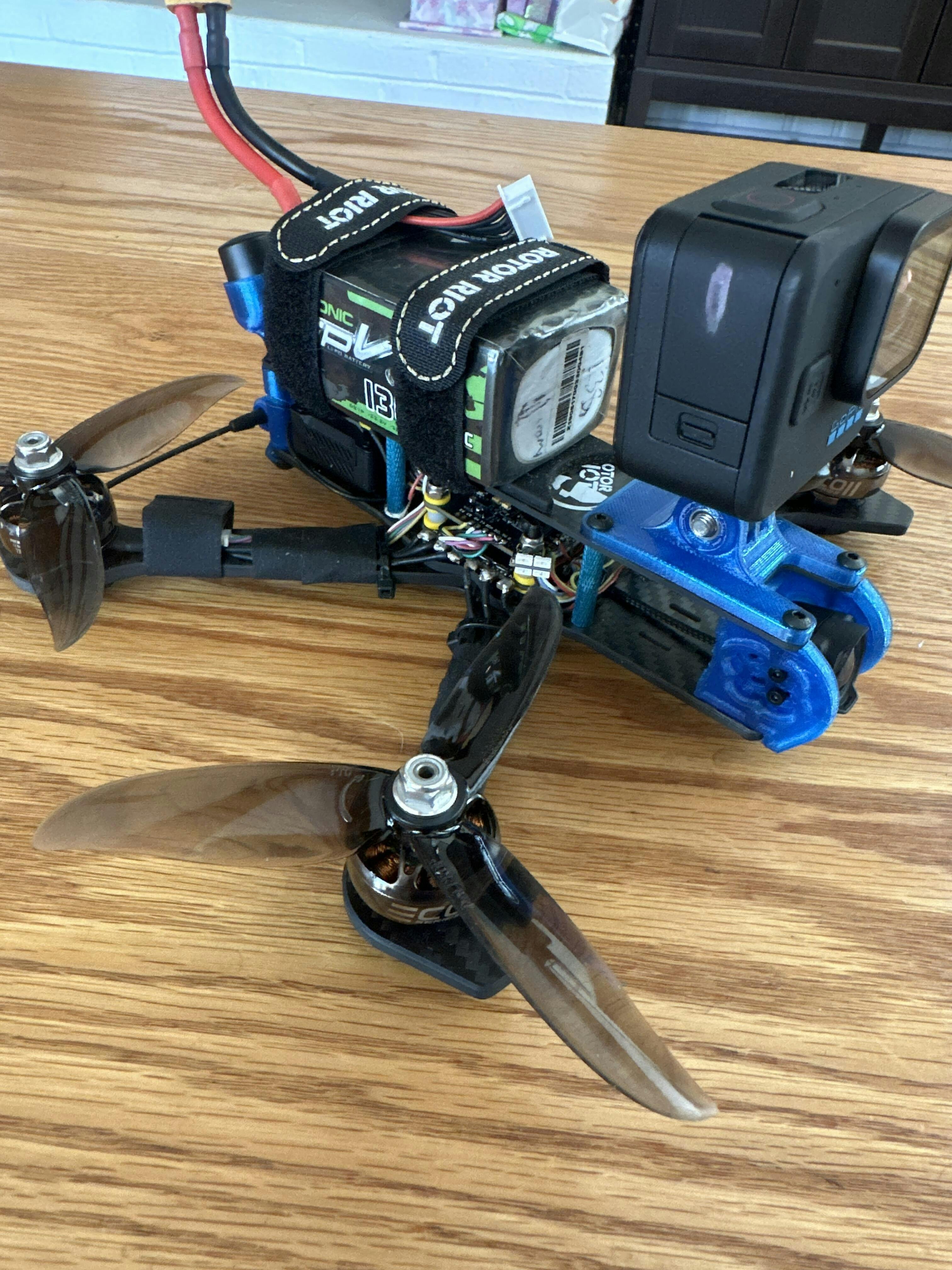

    Bought for my 5” build, I wanted to try GPS rescue
    Satellites are found pretty quickly when 20-30’ away from taller objects.

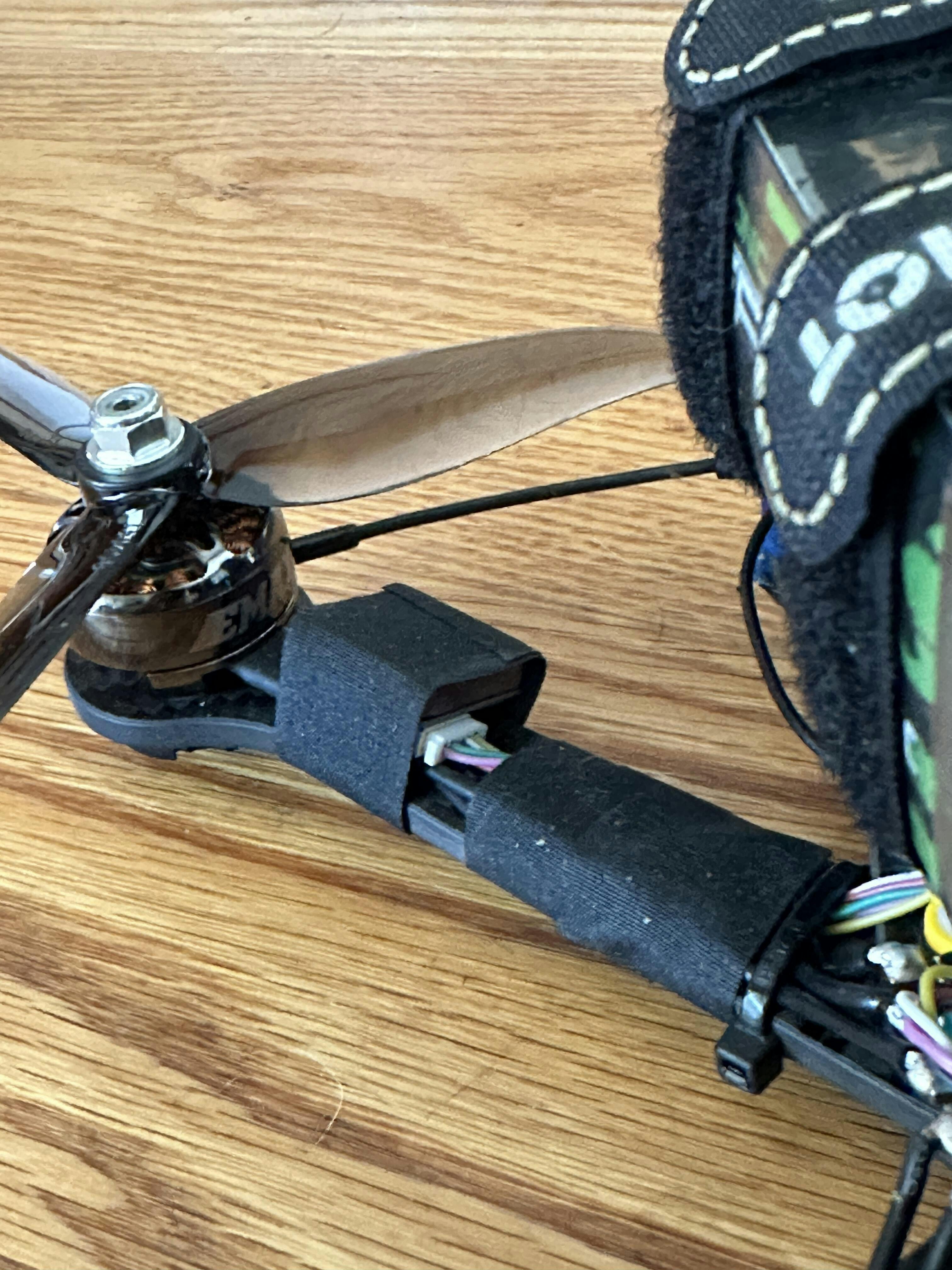

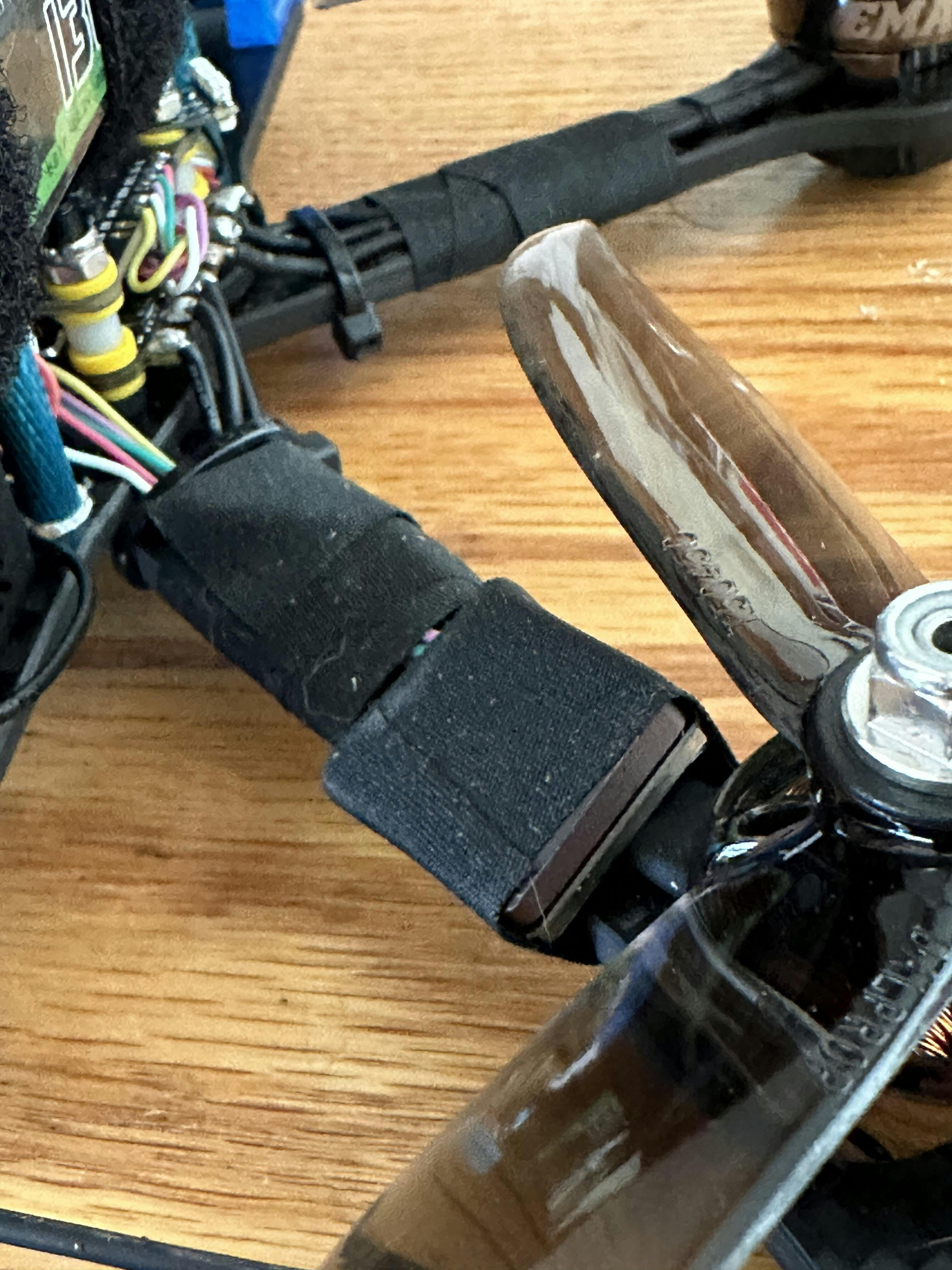

    Mounted on the rear drone arm and wrapped with tape. Simple and effective. Laying on the motor wires gives proper angle. Also less interference from the VTX having the wires run down the arm and not over the VTX to a traditional GPS mount. I find quicker satellites now running this way.
    Check out my photos

    G
    Griffin Sack
    Good not great

    If you want something small and cheap is is the best option however it is very slow to lock satellites and is not very accurate
