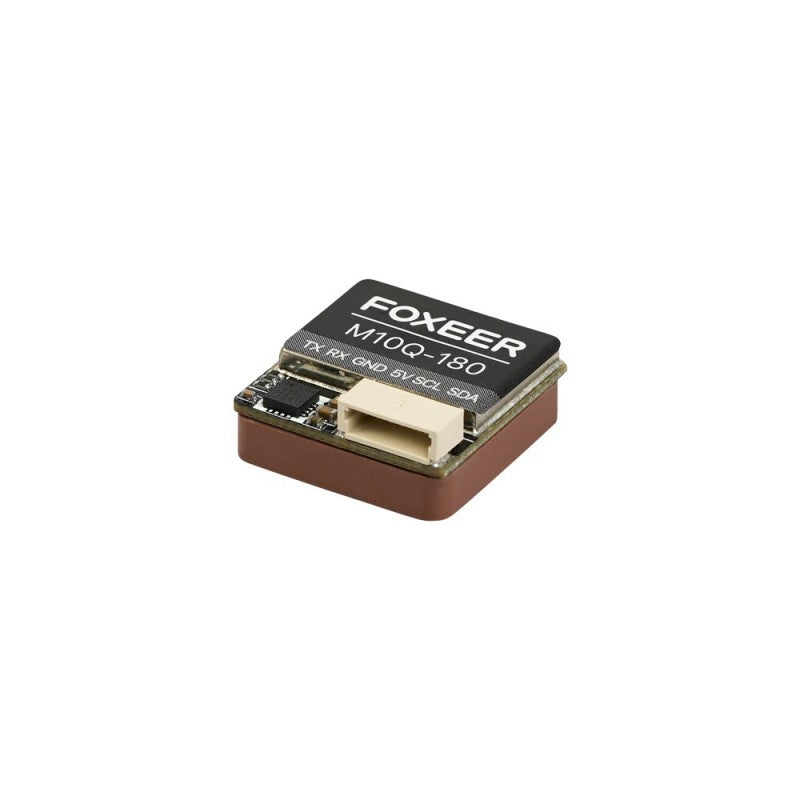

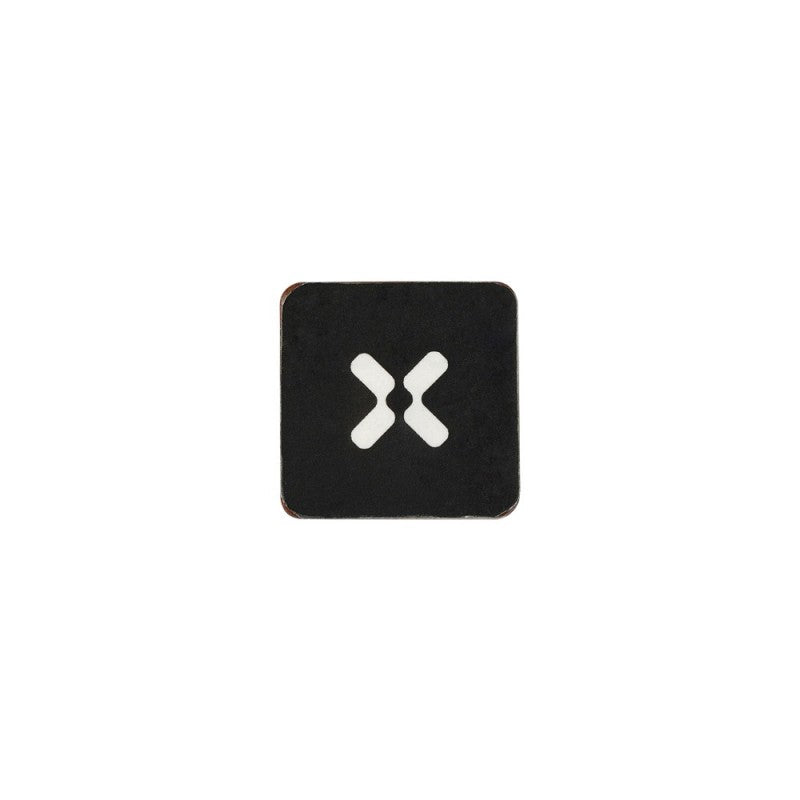

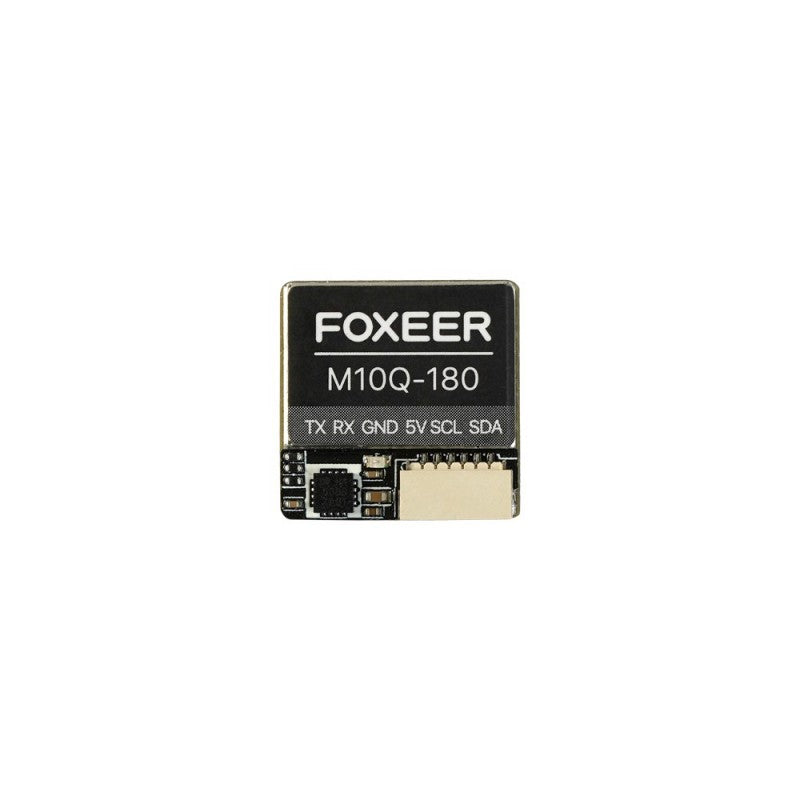

M10Q-180 GPS Module

filler

Price:
$19.90

Stock:
In stock

Description

 M10Q-180 is based on the UBLOX M10 chip, featuring fast and precise positioning.

Specifications

  • Chip: M10(10th Generation Chip)
  • Frequency: GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
  • Input Voltage: 5V
  • Antenna: Ceramic
  • Channels: 72
  • Battery: Biult-in
  • Compass: QMC5883
  • Compass Orientation: Plug facing direction of flight and obviously antenna up, BF: CW 180° Flip
  • Baud Rate: 115200bps
  • Protocol: Dual NMEA/UBLOX
  • Output Frequency: 1Hz-10Hz,10Hz default
  • Speed Accuracy: 0.05m/s
  • Horizontal Positioning Accuracy 2D ACC1.5m(outdoor)
  • Receiver Sensitivity Trace -166dBm; Capture -160dBm
  • Dynamic Characteristics Height 50000m; Speed 500m/s; Acceleration 4G
  • Operating Temperature -40C-+85C
  • Storage temperature -40C-+105C
  • Weight 7.5g
  • Size 18*18*8mm

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
c
cristopher
good.

the wires really need some coper tape shielding, but it can fly my cl2-xr home without an onboard barometer. it acquires satellites fairly quickly and I've gotten 15-20 sats consistently.
