Description

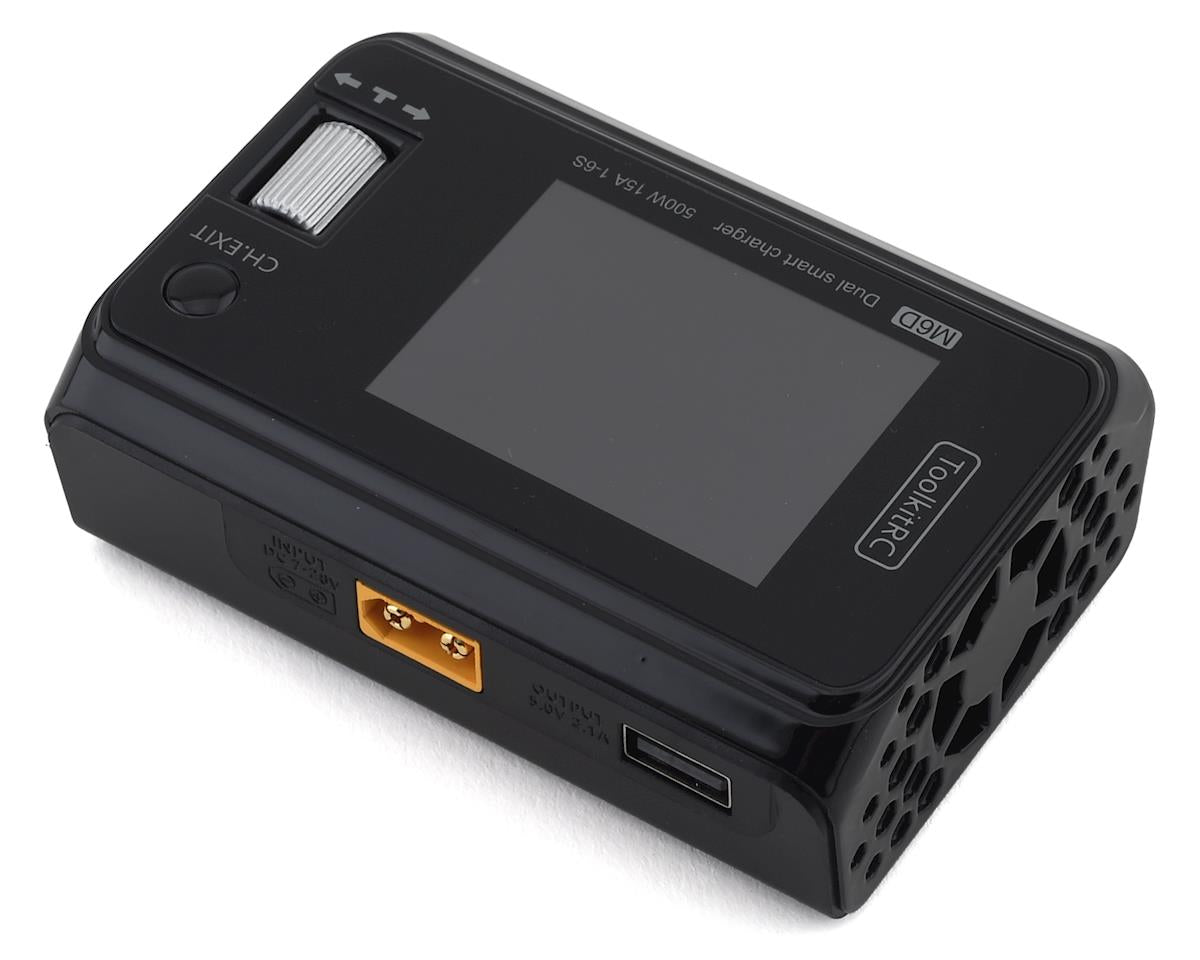

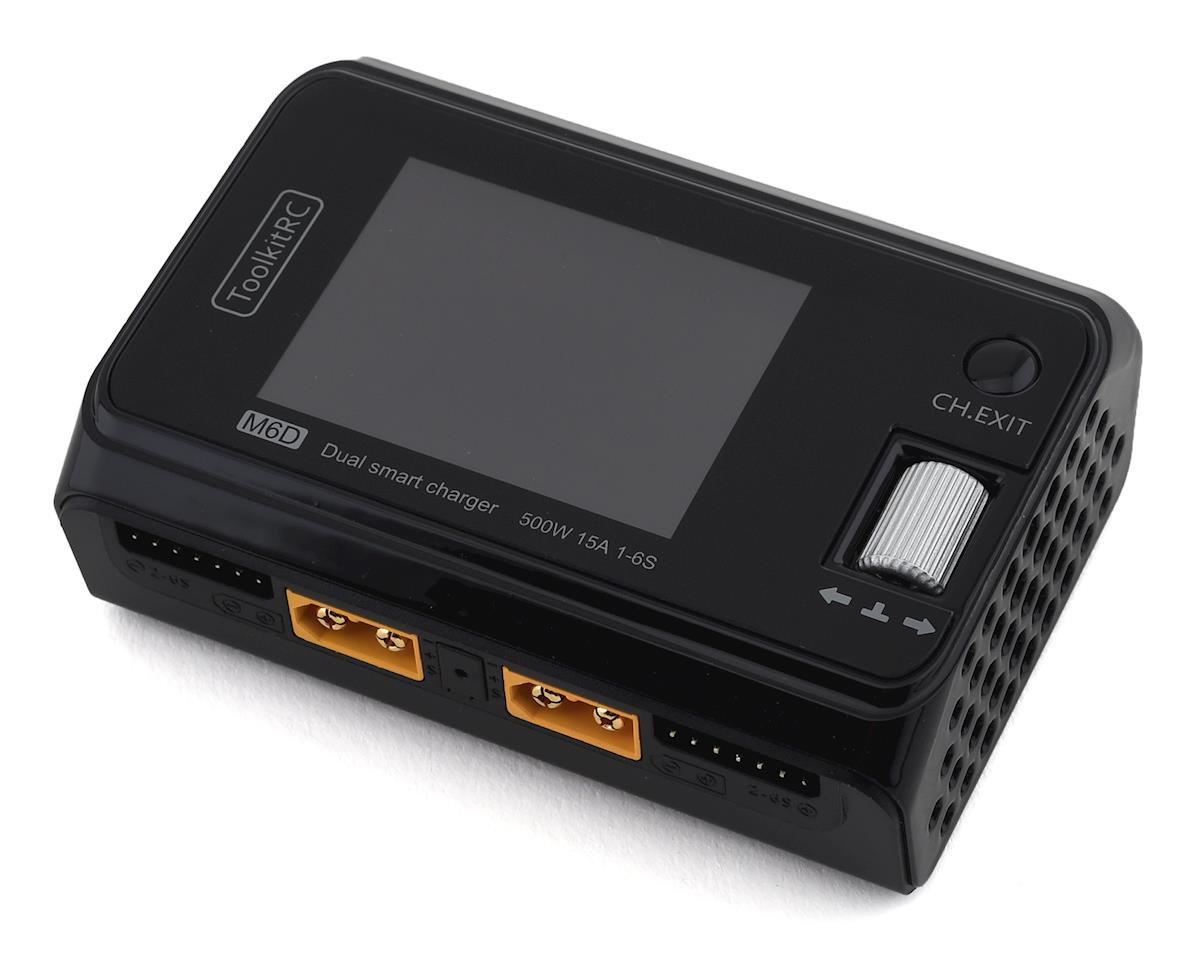

The ToolkitRC M6D is a high powered compact DC dual channel charger.
DC Power supply not included.
Features
- Dual channel Double Convenience
- Asynchronous automatic power distribution
- Synchronous output greater power
- 500W Increased power again
- M8 size, power increase 66.7%
- Optimize Heat Dissipation
- Impressive heat dispersing system dissipating high power heat in time
- IPS Display w/ wide view
- Highlights make it easier to watch outdoors
- Updated UI
- Designed for charging more intuitive and simple
- 8 built-in languages
- Integrated USB Interface
- 5V output for mobile phone, and firmware upgrade
Specifications
- Input voltage: 7.0-28.0V @MAX 30A
- Type of battery:
- Lipo LiHV LiFe Lion@1-6S
- NiMh @1-16S Pb @1-10S
- Balance current: 800mA @2-6S
- Balance accuracy: < 0.005V
- Voltage range: 0.2-5.0V @1-6S
- Internal resistance: 1-100mR @1-6S
- Charge power:
- 500W @MAX 25A SYNC
- 250W @MAX 15A *2 ASYC
- Discharge power:
- 500W @MAX 15A Recycle
- 12W @MAX 3A Nomal
- USB: 2.1A @5.0V Upgrade@USB3.0
- Product size: 98*68*35 mm
- Product weight: 220g
- Pack size: 108*80*46 mm
- Pack weight: 300g
- LCD: IPS 2.4inch LCD 320*240 pixel
Includes
- 1x M6D Dual DC Charger
