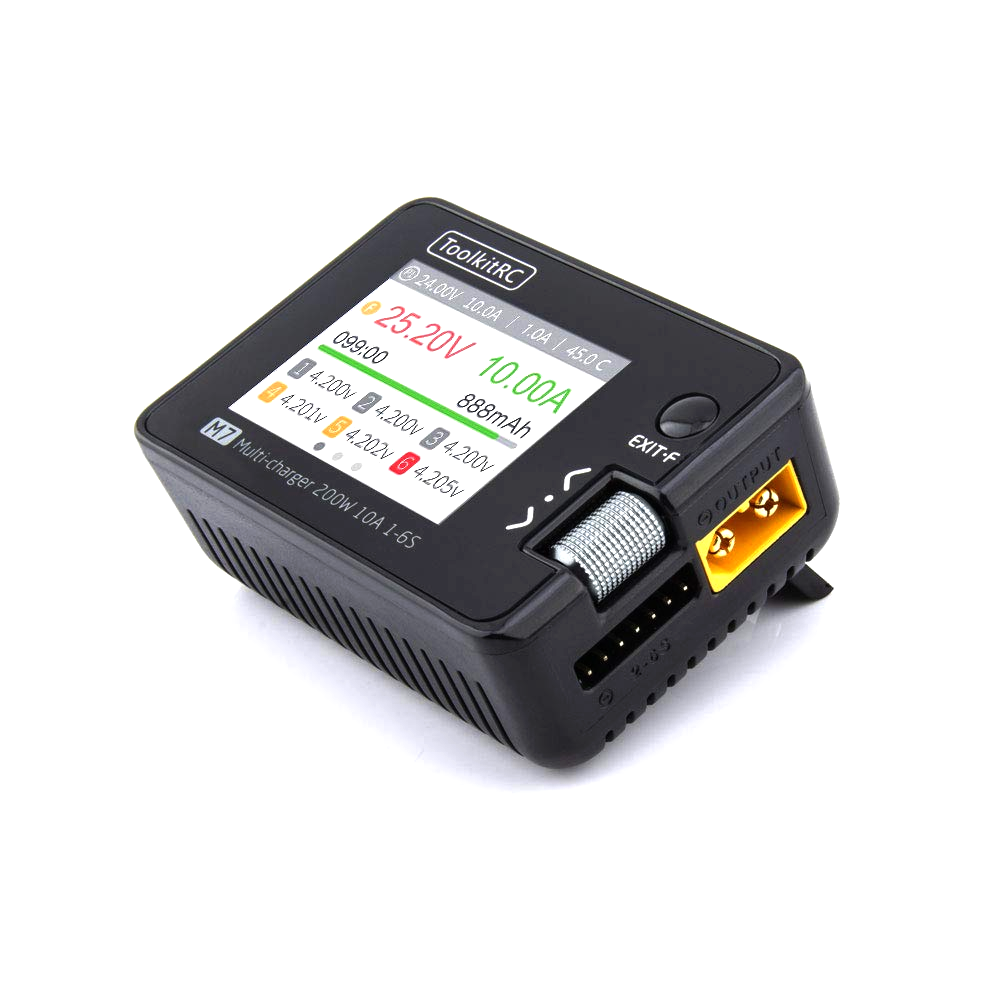

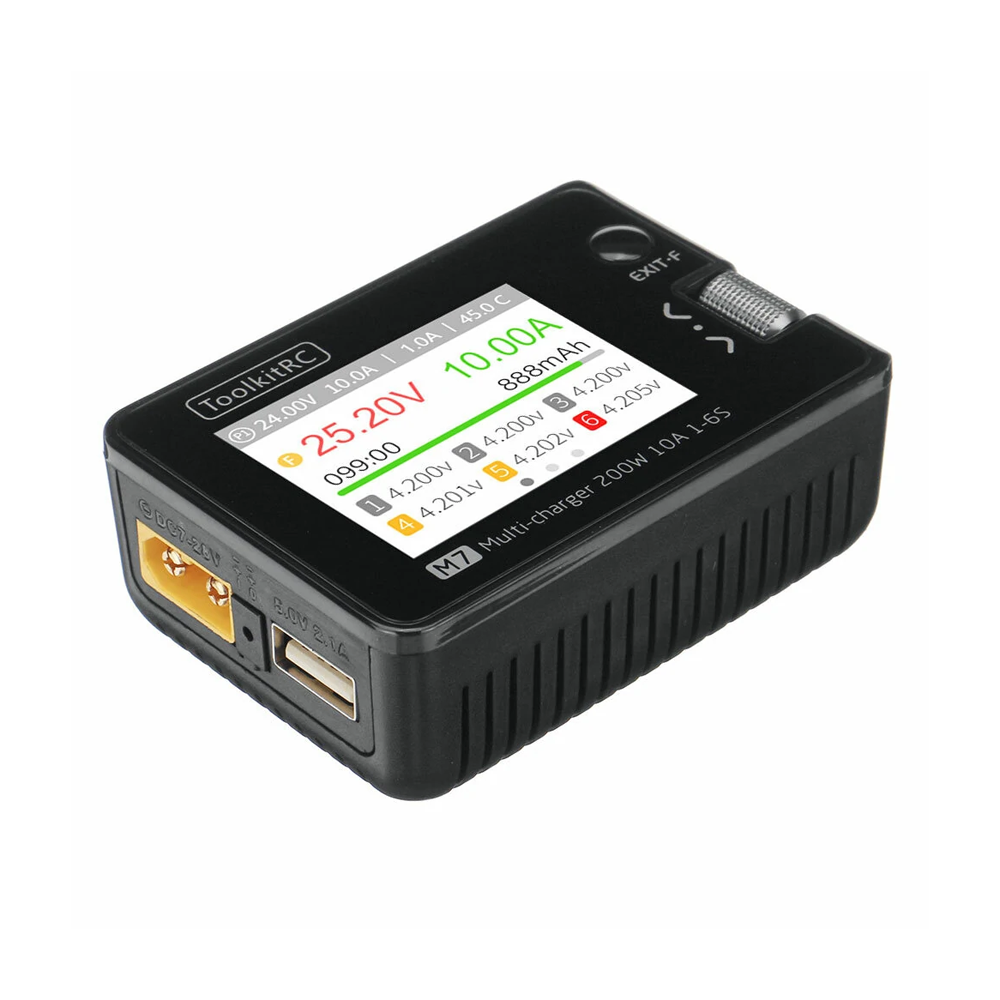

M7 200W 1-6S DC Smart Charger

filler

Price:
$39.99

Stock:
Low stock - order soon!

Description

All the multi-functionality you've come to expect from a ToolkitRC charger, in a more compact package!

Works great with ADP-100 or ADP-180 power supplies.

Features

  • Same size as M6 with 33.3% more power
  • Bright 2" 32x240 IPS wide angle display
  • Long life scroll wheel sensor
  • New simplified interface
  • Small size, many functions:
    • Balance charge
    • Electrical measurement
    • Signal source
    • Drone charge
    • Signal testing

Specifications

Charger

  • Input Voltage: 7.0-28.0V @MAX 12A
  • Battery Type: Lipo LiHV LiFe Lion@1-6S , NiMh @1-16S Pb @1-10S
  • Balance current: 400mA @2-6S
  • Charger power: 200W @MAX 10A
  • Discharge power: 200W @MAX 10A Recycle mode, 10W@3A Normal mode
  • USB: 2.1A @5.0V

Measurement

  • PWM: 880-2200us @20-400Hz
  • PPM: 880-2200us*8CH @20-50Hz
  • SBUS: 880-2200us*16CH @20-100Hz
  • Voltage: 1.0-5.0V @1-6S
  • Internal resistance: 1-99mR @1-6S
  • ESC: 200W@10A PWM Output

Output

  • PWM: 500-2500us @20-1000Hz
  • PPM: 880-2200us*8CH @20-50Hz
  • SBUS: 880-2200us*16CH @20-100Hz
  • Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
  • OverCurrent Cutoff time: <5ms

Includes

  • 1x M7 200W DC Smart Charger

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Matthew Olson
M7 DC charger

Great little charger. Especially for the price. Has a bunch of extra functionality packed into the charger. I really like that it is compact and can handle 6s.

M
MCBikeWild
Not a bad charger!

Only bad part is it can only charge one at a time. But it totally does the trick to charge, discharge and storage charge your fpv batteries. Using this for my 6s batteries. Charges fully in 30-40 min from depletion.
