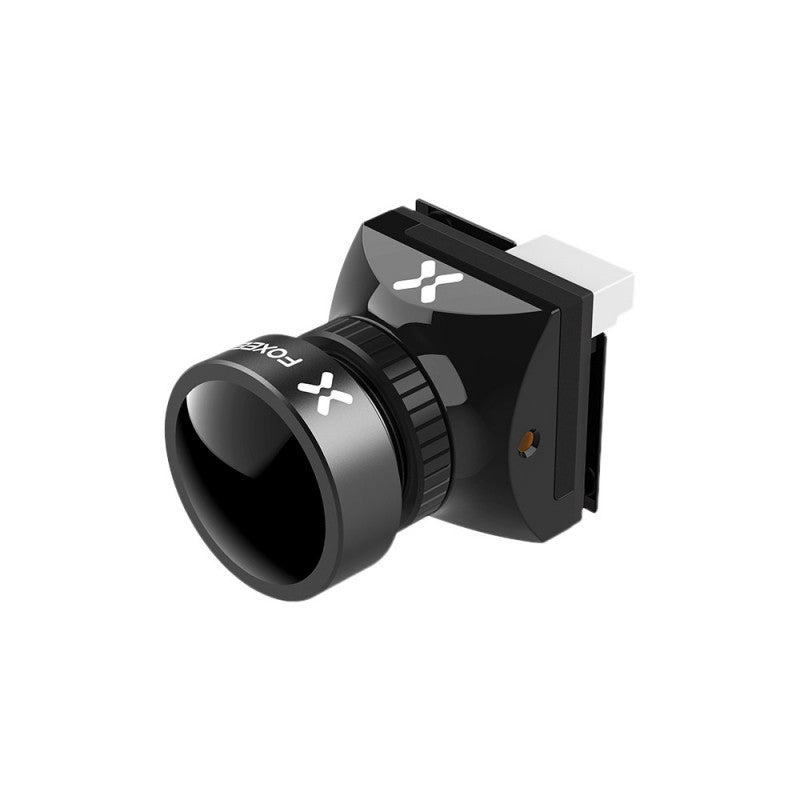

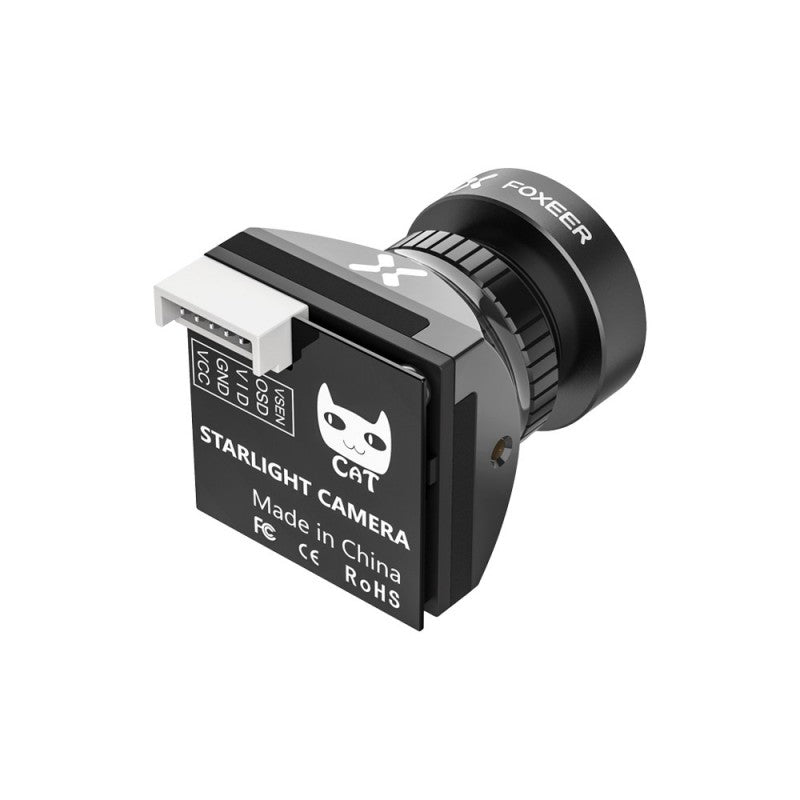

Micro Cat 3 Camera - Black

An excellent analog FPV camera for both day and low light flying.

Specifications

• Sensor Type: Sony 1/3" CMOS Sensor
• Scale: 4:3(Default)/16:9 Switchable
• Tv System: PAL(Default)/NTSC Switchable
• Resolution: 1200TVL
• Lens: M12 2.1mm Low Light Lens
• FOV: 4:3 FOV-H: 100° FOV-D:125°, 16:9 FOV-H: 100° FOV-D:115°
• Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
• Video: Output CVBS Analog Signal
• Minimum Illumination: 0.00001Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 100dB
• DAY/NIGHT: EXT/Auto/Color/B&W
• Flight OSD: Voltage/Cam Title/Time
• Input Voltage: 4.6V~20V
• Language: ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA
• Working Temperature: -10°~50°C RH90% MAX
• Working Humidity: 20~80%
• Storage Temperature: -20°~70°C
• Consumption: 95mA±15% @ DC12V
• Dimension: 19*19mm
• Weight: 10.7g(Exclude cable)

Includes

• 1x Micro Cat 3 Camera - Black
• 1x Camera Cable
• 4x Bracket Screws
• 4x Gasket Ring
• 1x OSD Board & Cable
