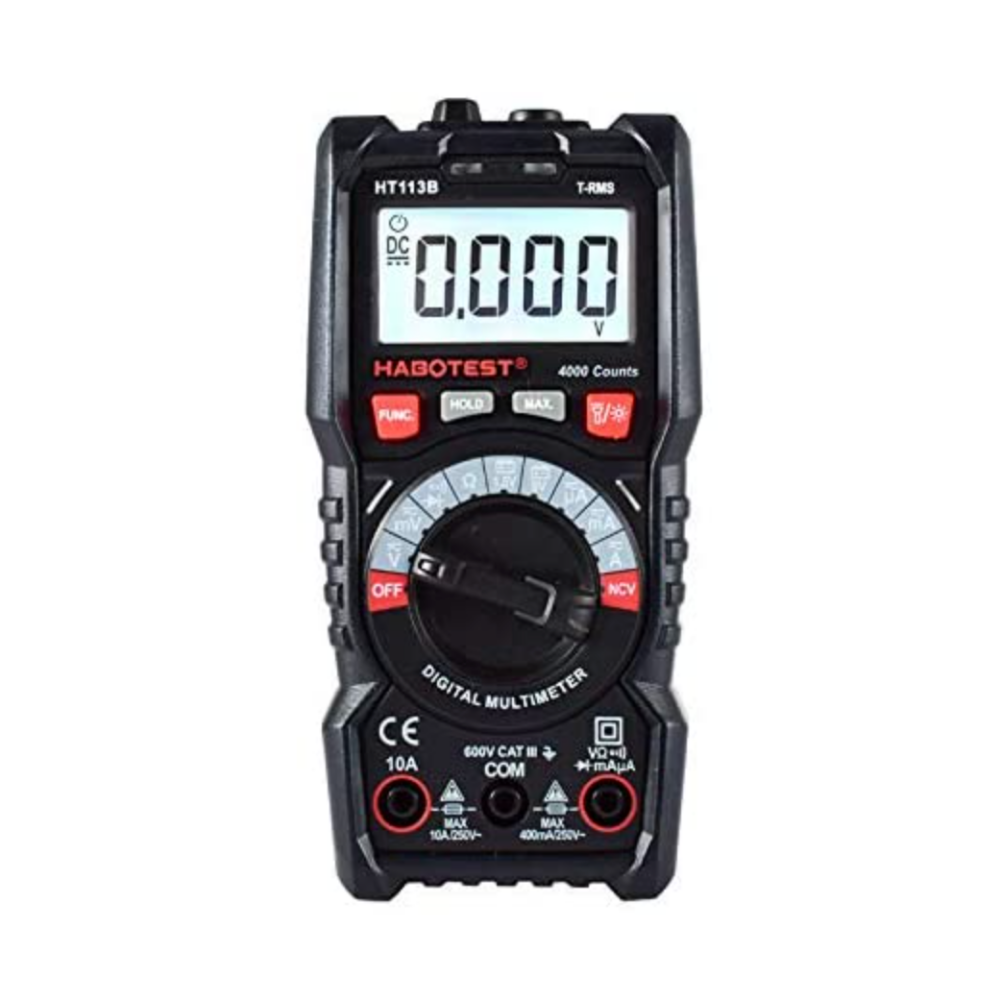

Multimeter HT113B Digital Auto Ranging

Specifications

• Model:(B)HT113B
• Material: ABS
• Maximum Display: 4000
• Functions: It can measure DC voltage, DC voltage, AC current, AC current, DC/AC mV voltage measurement, resistance, on-off test, diode test (see the instruction for detailed data)
• Function Range
• DC Voltage: 400mV/4V/40V/400V/600V ±(0.5%reading+3)
• Input impedance:10MΩ
• Overload protection:600V Maxium input voltage:600V
• AC Voltage :400mV/4V/40V/400V/600V ±(1.0%reading+3)
• Input impedance:10MΩ
• Overload protection:600V Maxium input voltage:600V
• Frequency Response:10Hz~1kHz:TRMS
• DC Current :400μA/4000μA/40mA/400mA/10A ±(1.2%reading+3)
• Overload protection: μA/mA:F400mA/250V fuse
• A:F10A/250V fuse
• Maxium input voltage: mA:400mA; A:10A
• AC Current :400μA/4000μA/40mA/400mA/10A ±(1.5%reading+3)
• Overload protection: μA/mA:F400mA/250V fuse
• A:F10A/250V fuse
• Maximum Input voltage: mA:400mA; A:10A
• Frequency Response:10Hz~1kHz TRMS
• Resistance :400Ω/4KΩ/40KΩ/400KΩ ±(1.0%reading+3)
• 4MΩ/40MΩ ±(1.2%reading+3)
• Overload protection:600V
• Sampling rate: about 3 times per second
• Overrange indication: display "OL"
• Maximum measurement: Yes
• FUNC function: Yes
• On-off measurement: Yes
• Diode measurement: Yes
• Resistance measurement: Yes
• NCV detection: Yes
• Data retention: Yes
• Low Voltage Indicator: Yes
• Backlight: Yes
• Flashlight: Yes
• Automatic shutdown: Yes

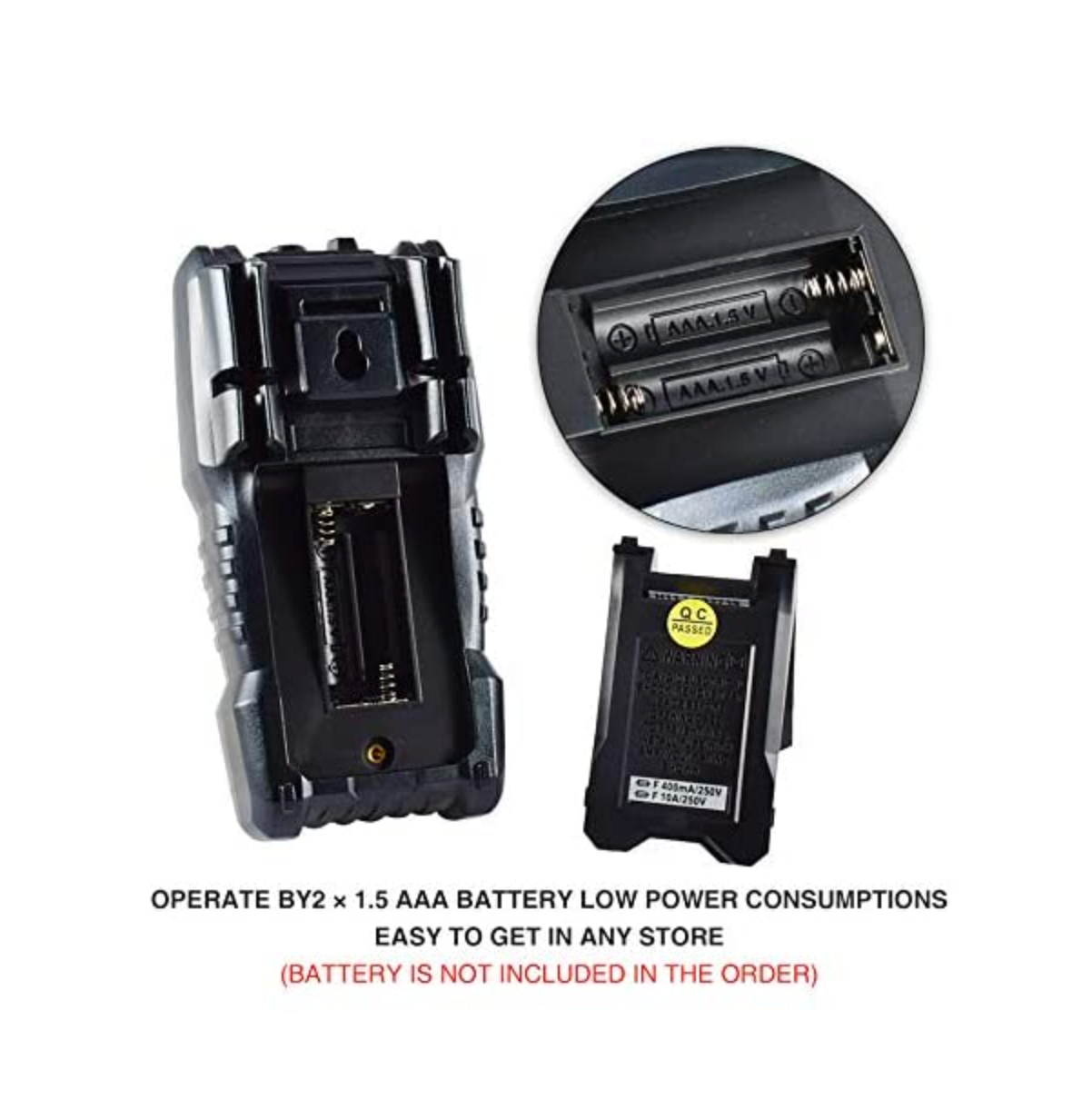

• Power supply: 2*1.5V AAA battery（not included）

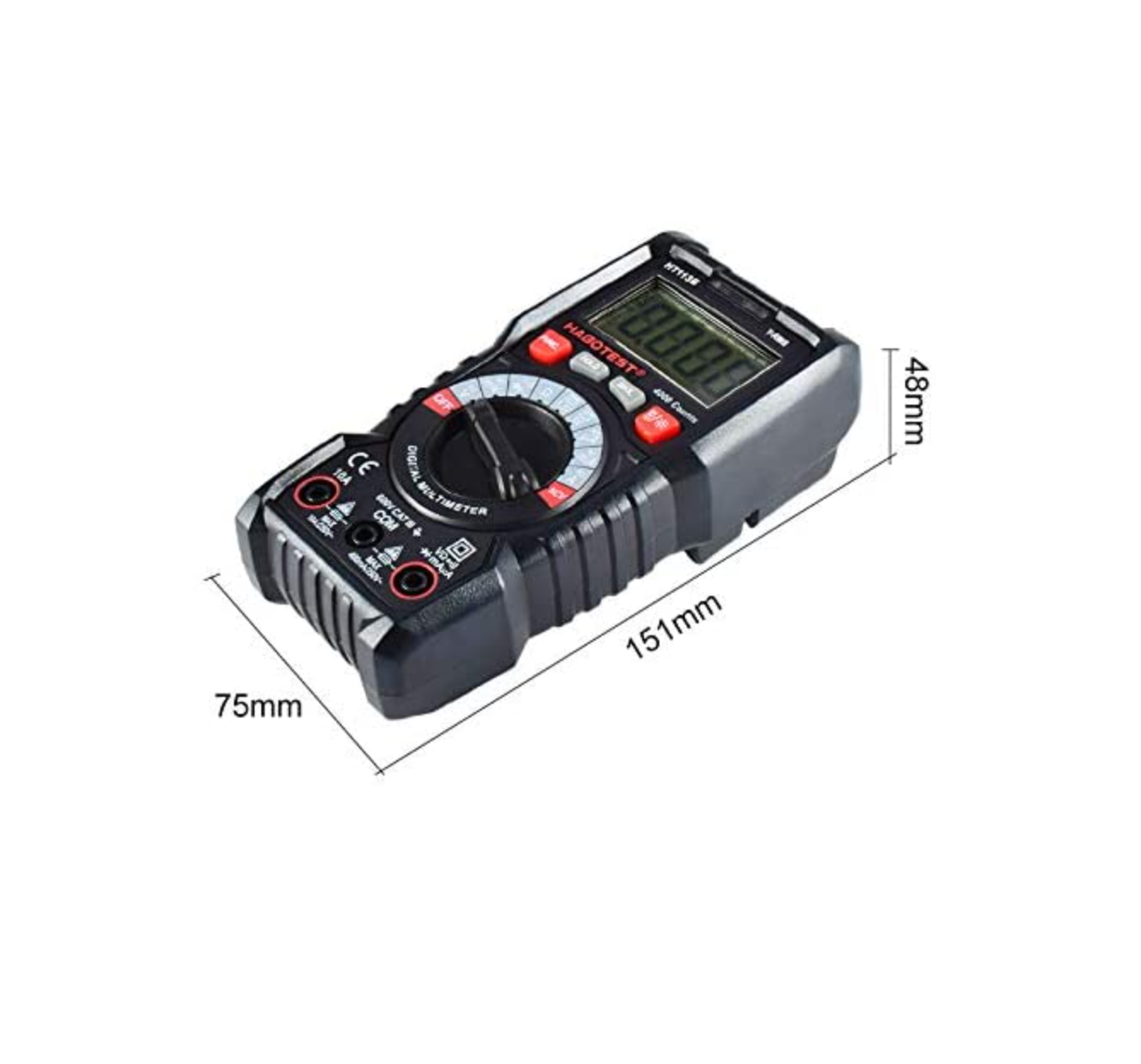

• Size: 151*75*48mm
• Weight:250g
