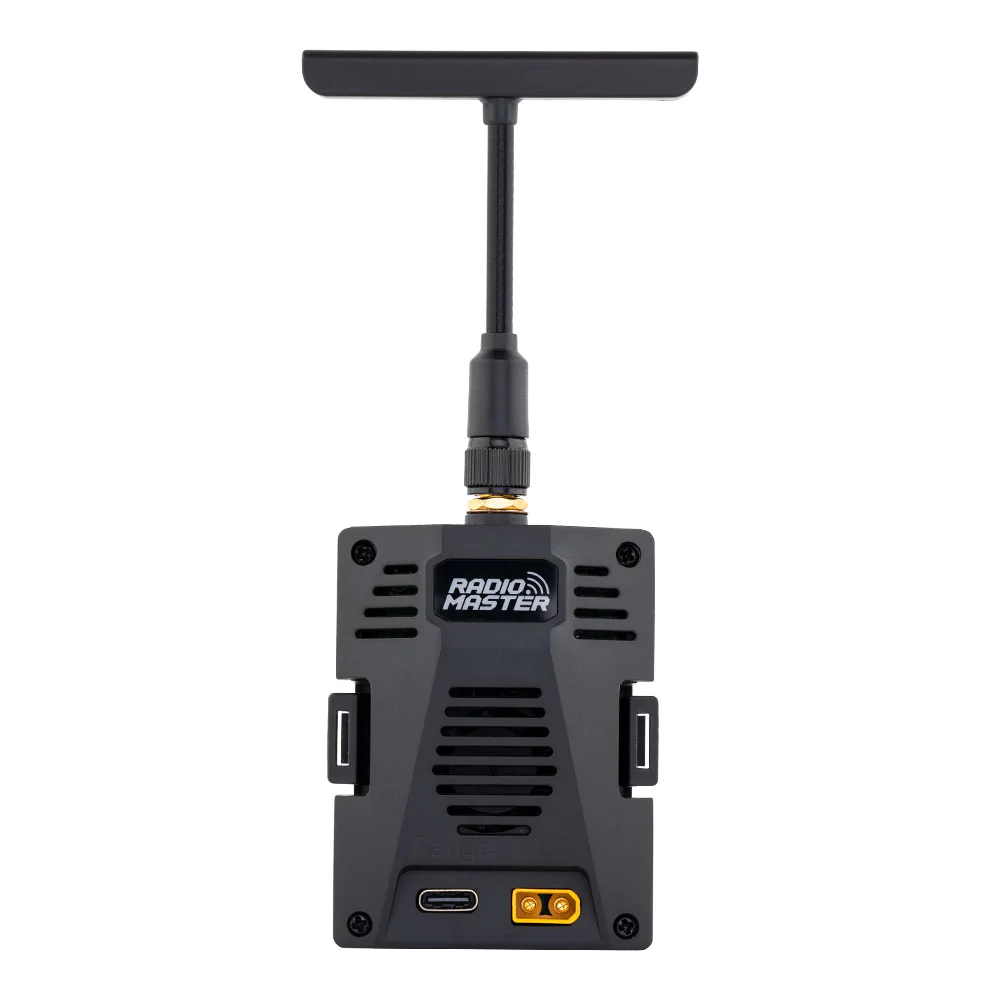

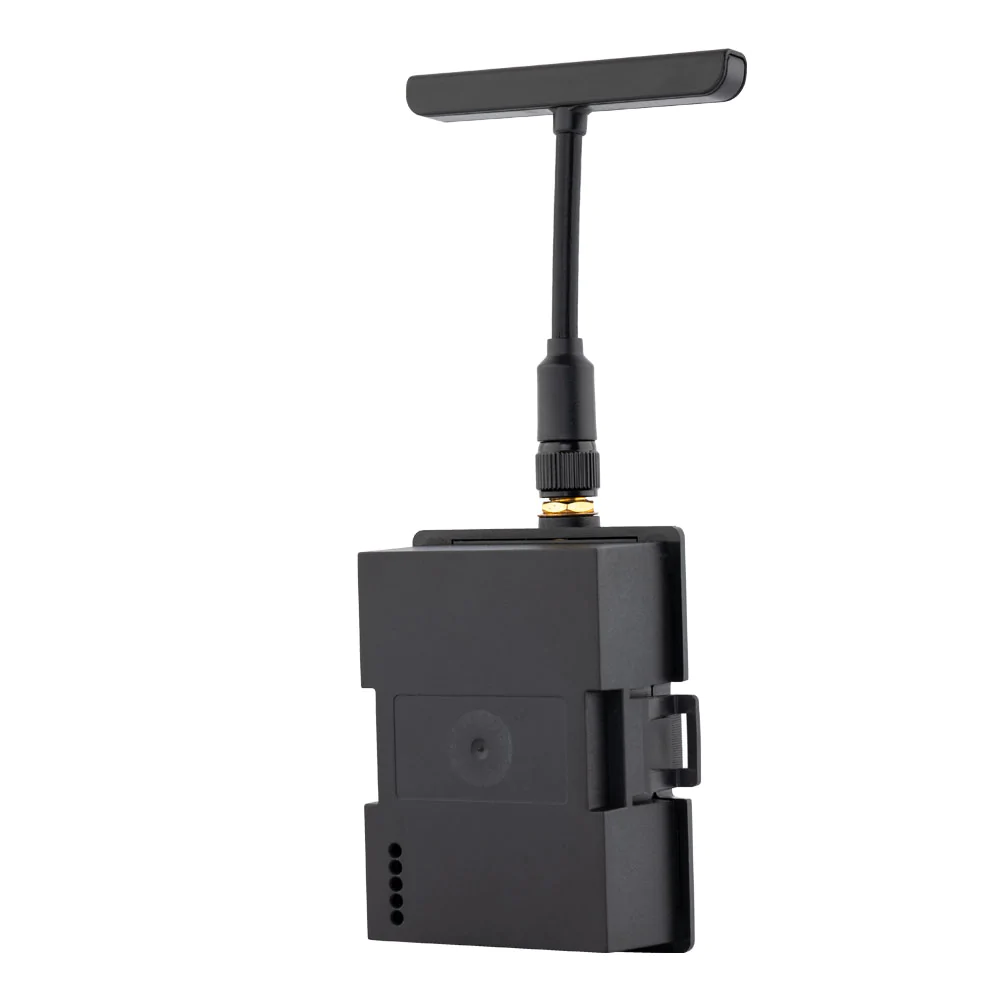

Ranger ELRS 1W 2.4GHz Micro TX Module
Available in stock (22)
Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!
Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.
Features
-
High-efficiency cooling system
- Up to 1Watt Power output
-
Wifi and Bluetooth support
-
Packet rates up to F-1000Hz
-
T-antenna included
-
With Micro connector, supports TX16S MKII, TX16S MKII MAX and TX12 MKII radio and more.
Specifications
-
Regulatory Domain: ISM2400
-
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
-
RF chip: SX1281IMLTRT
-
Frequency Range: 2400 MHz - 2480 MHz
-
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
-
Minimum receiver refresh rate: 25Hz
-
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
-
Wifi Support: Yes
-
Bluetooth support: Yes
-

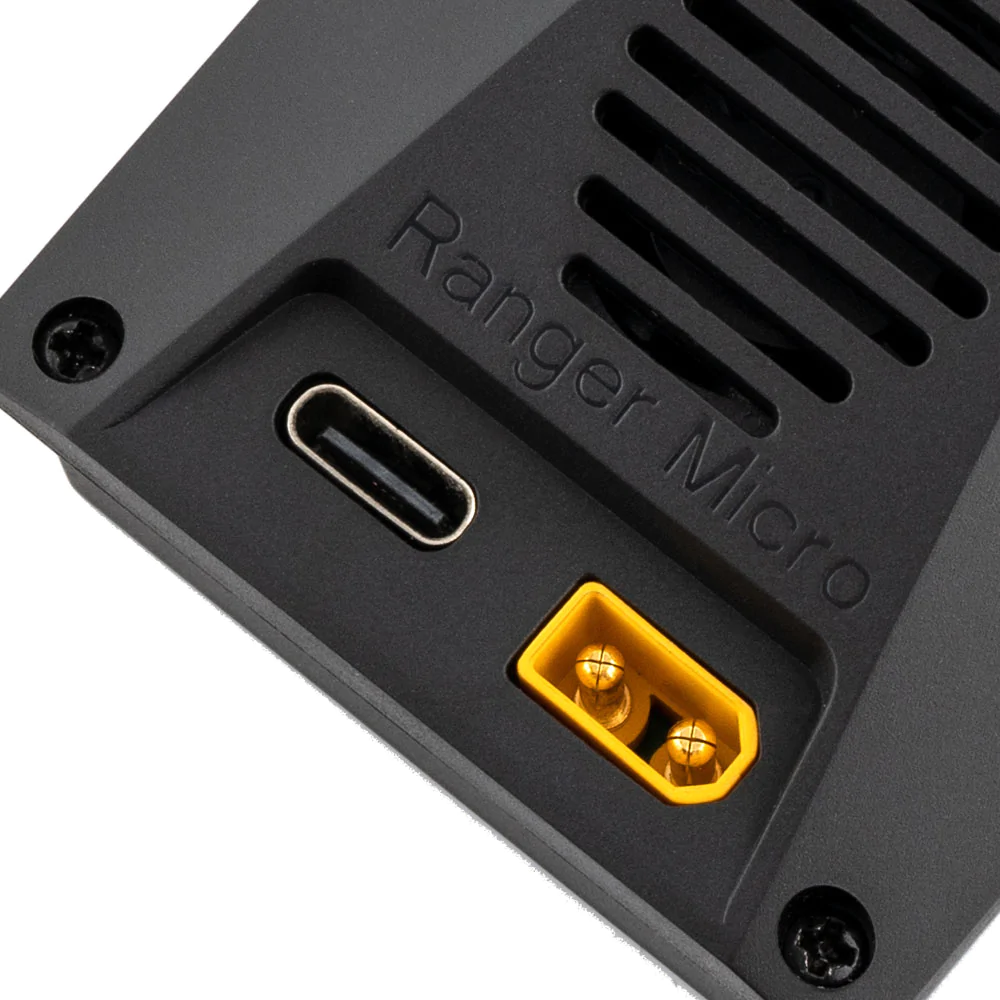

XT30 Power supply voltage: DC 6V - 16.8V
-
Weight: 48g (with antenna) / 39g (without antenna)
-
Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)
Includes
- 1x Ranger ELRS 1W 2.4GHz Micro TX Module
- 1x T Antenna
