Reaper Nano 25-350mW VTX for Analog Video System

Roll over image to zoom in

Reaper Nano 25-350mW VTX for Analog Video System

Name: Reaper Nano 25-350mW VTX for Analog Video System
Brand: Foxeer
SKU: RR1582
Price: 24.90 USD
Availability: InStock

Foxeer

filler

Share this product

An ultralight analog VTX perfect for micros and racing builds featuring 25-350mW output and IRC Tramp control protocol.

Specifications
- Input Voltage: 5V
- Output Voltage: 5V
- Channels: 40
- Protocol: Tramp
- Transmit Power: 25mW/100mW/200mW/350mW
- Consumption: 340mA@350mW
- Connector: U.FL
- Dimensions: 12x16mm
- Weight: <1g
Includes

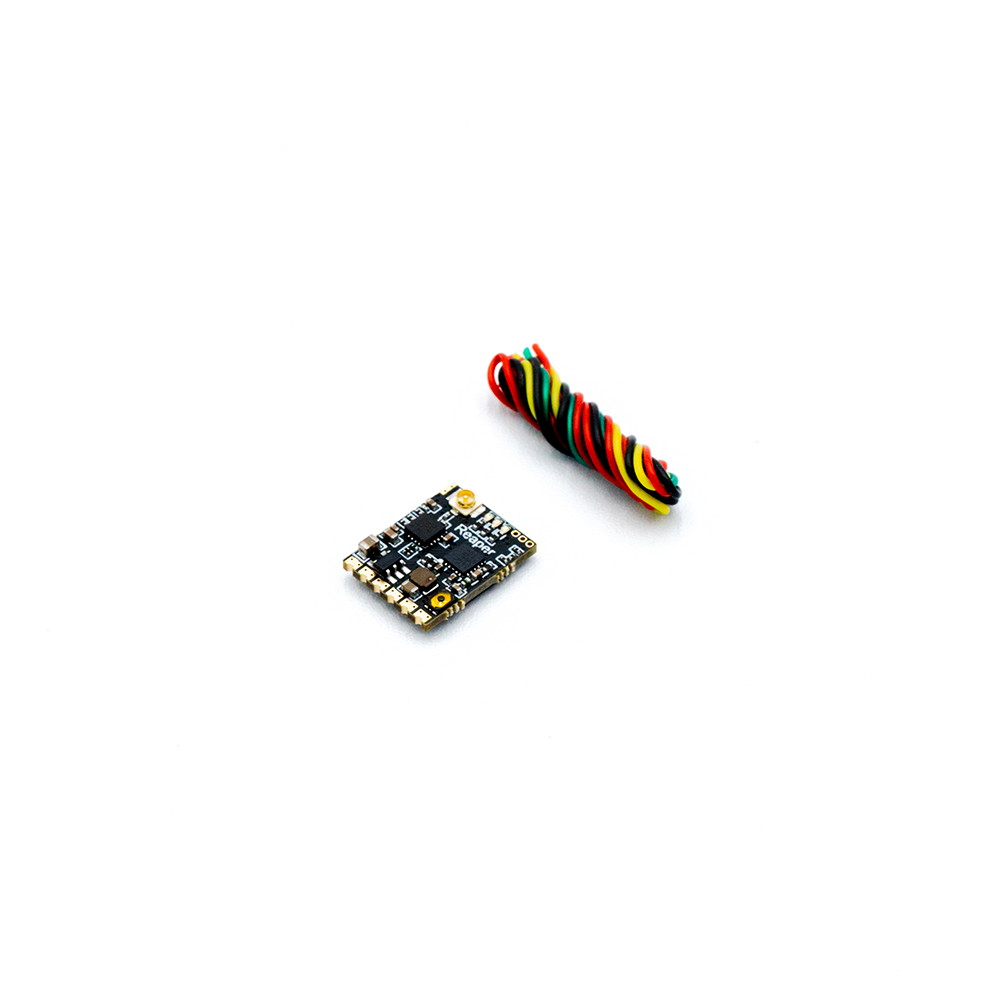

- 1x Reaper Nano VTX
- 1x Wire Set
- 1x Heat Shrink

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area.

It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices.

Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. Rotor Riot cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.

Reaper

I am building a drone but it’s not done yet

Great Little VTX

This is a great little VTX which fits nicely on 2.5" and larger builds. Solder pads on the PCB seem robust and are well labeled. The unit appears to handle heat dissipation well.

Way better than the BetaFPV M03 that comes on the Meteor 75

A good choice for a micro VTX

Bought this for an 80 mm build to replace beta fpv unit that couldn't be manually operated. Manually selecting frequency and power on this unit through the button is a little quirky but it gets the job done

Great VTX, in stock, fast shipping

I needed a nano VTX for my 1s 3” build and it was out of stock in the other supply stores. Make sure you have or purchase a ufl antenna because it doesn’t come with one.
