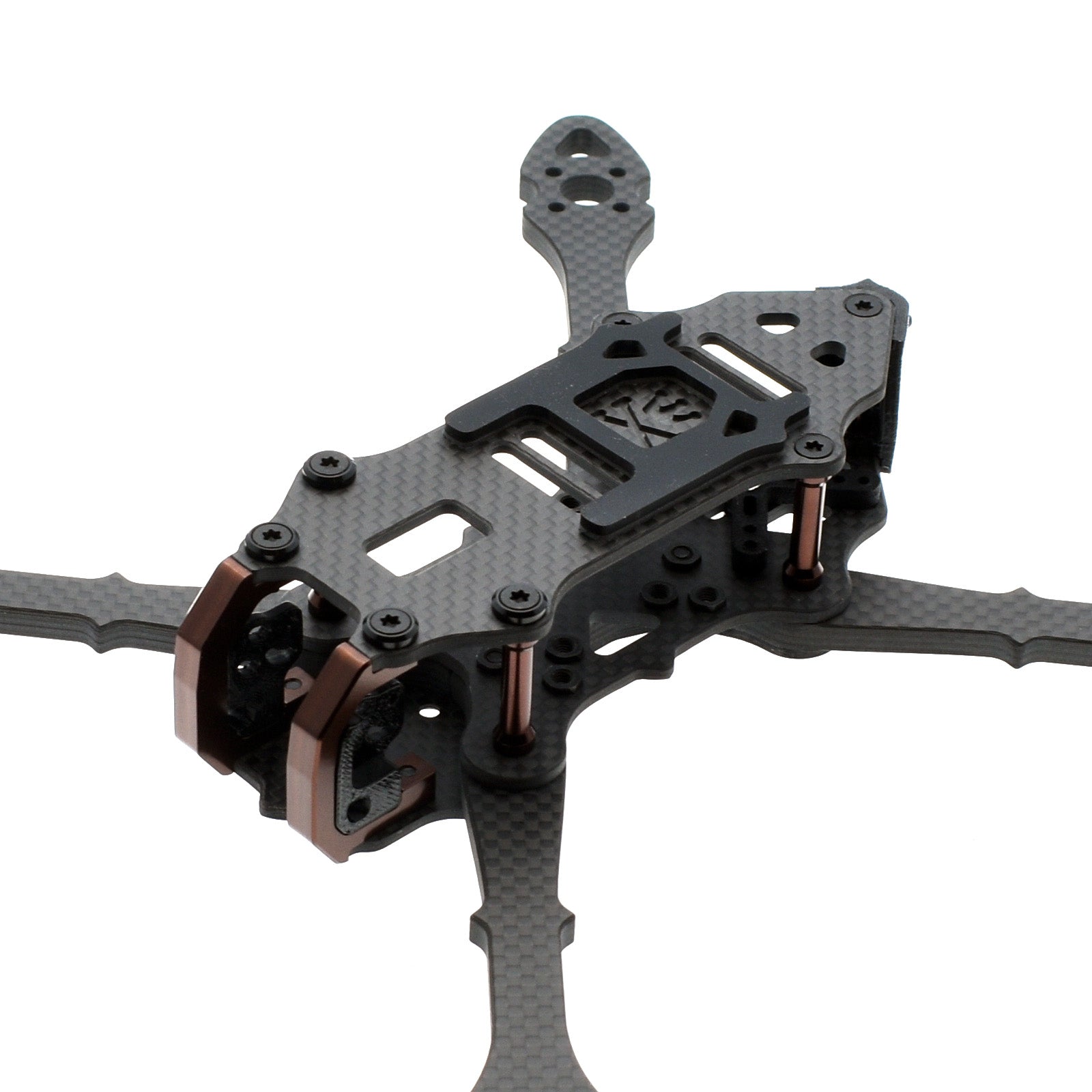

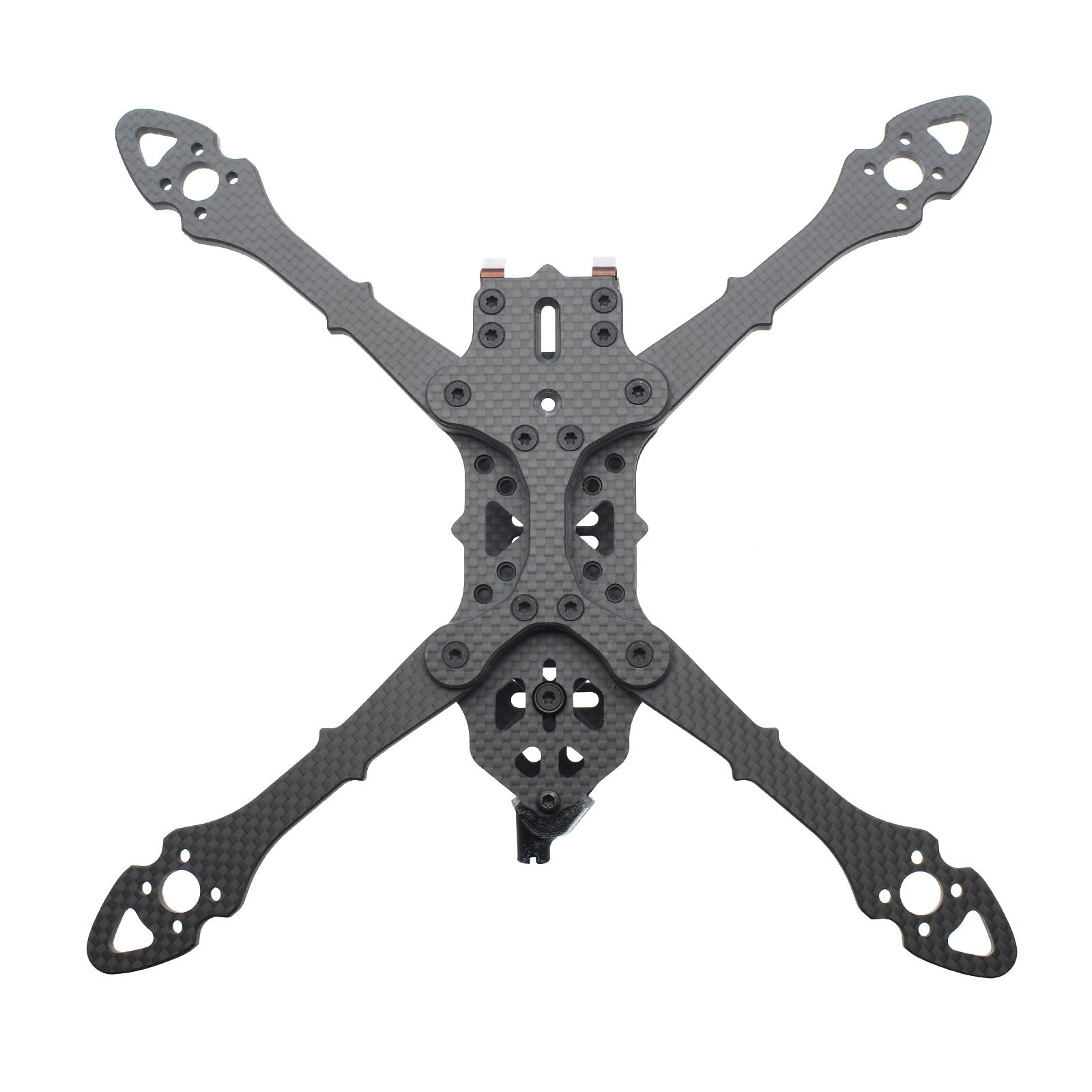

Shorty 5" Frame

Rotating excellence in your hands. The Shorty is the spirited little sister of the Punch.
It shares a lot, but as you may have guessed, the Shorty is shorter and dedicated to the Toilet Tank battery position. This provides a very different flying sensation from the traditional format.

We also carry the Punch 5" Frame!

Features

• Reinforced top plate to deal with your toilet tank battery. Multiple slots to choose your balance depending on your battery size and HD camera type.

• Choose between Squished and True-X geometry using the same arms.

• Fit up to 5.2 inch props.
• No frame in view. TPU camera mount fit 20 and 19mm camera.
• 12.9 dacromet steel screw set
 & 7075 aluminum parts. (Motor screws provided.)
• Feel the torque. We use T10 Torx hardware to keep everything tight and stiff.
• 23mm standoffs to avoid your lipo straps touching the electronics.
• XT60 holes prevent your power cable from being pulled out or banged.
• The stack screws are not related to arms vibrations.
• With one screw, your vtx goes where you want it for easy mounting
• Easily change arms with just two screws without sacrificing rigidity.
• The stack screws are completely separate from the arms to prevent vibrations.
• The standoffs are up to the arms to reinforce the body and top plate.
• Tail and Nose are shorter to be stronger.
• 240mm / Fully stitched, Reinforced one piece loop lipo strap (Based on the Pedvx lipo strap)
• frame weight plus hardware = 178g

Assembly Manual
Thingiverse
GrabCAD

Includes

• 1x Shorty 5" Frame
