The Skyeliner's little brother!

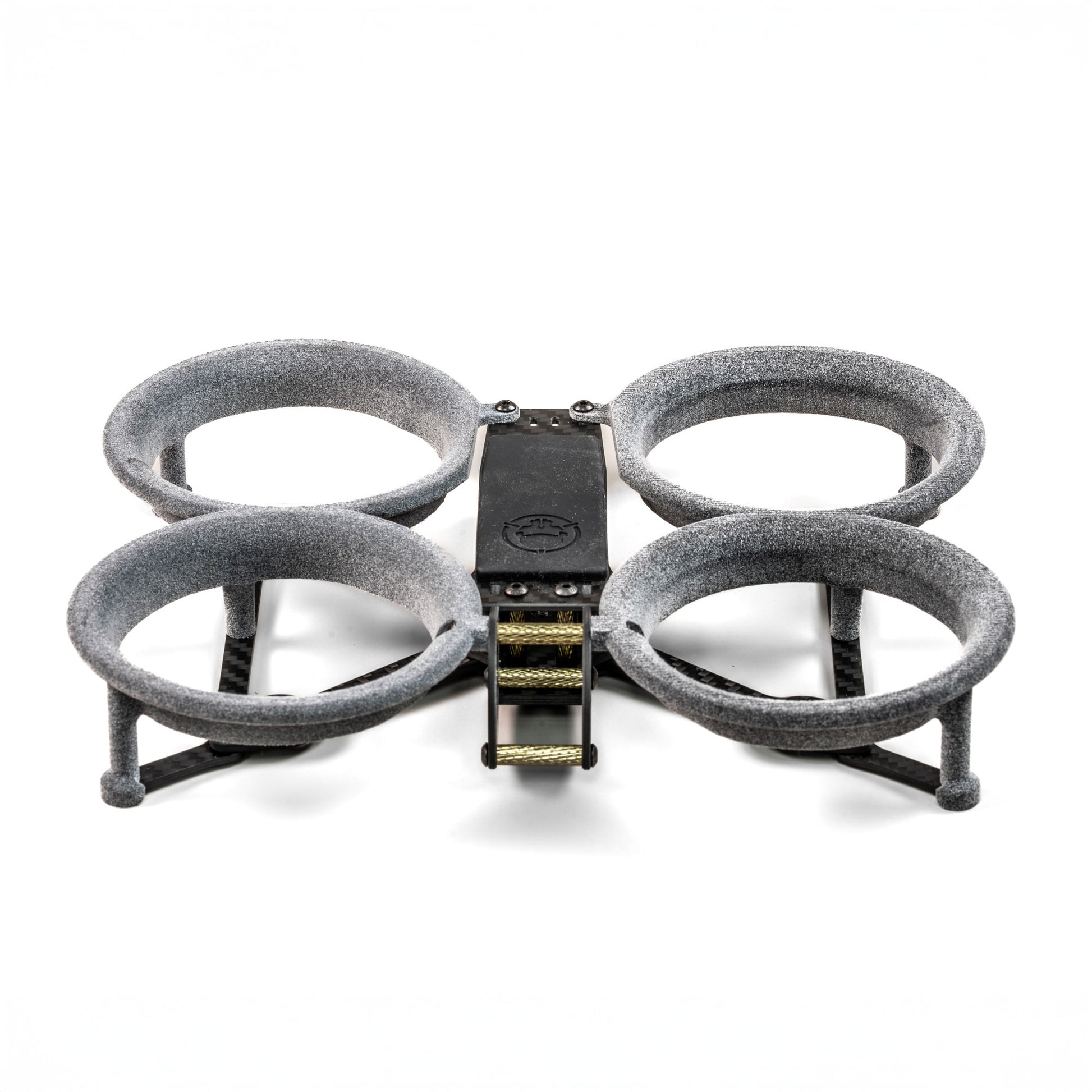

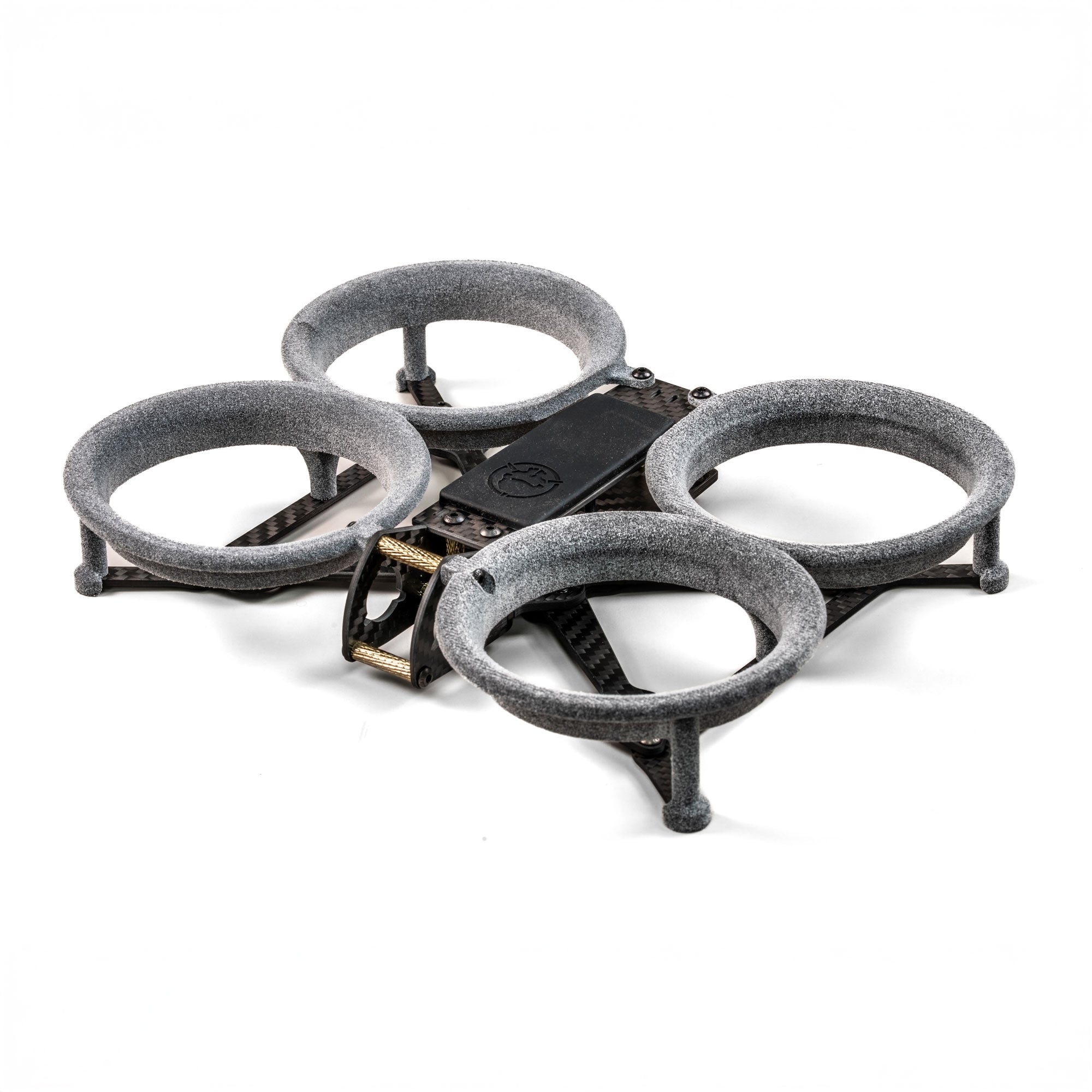

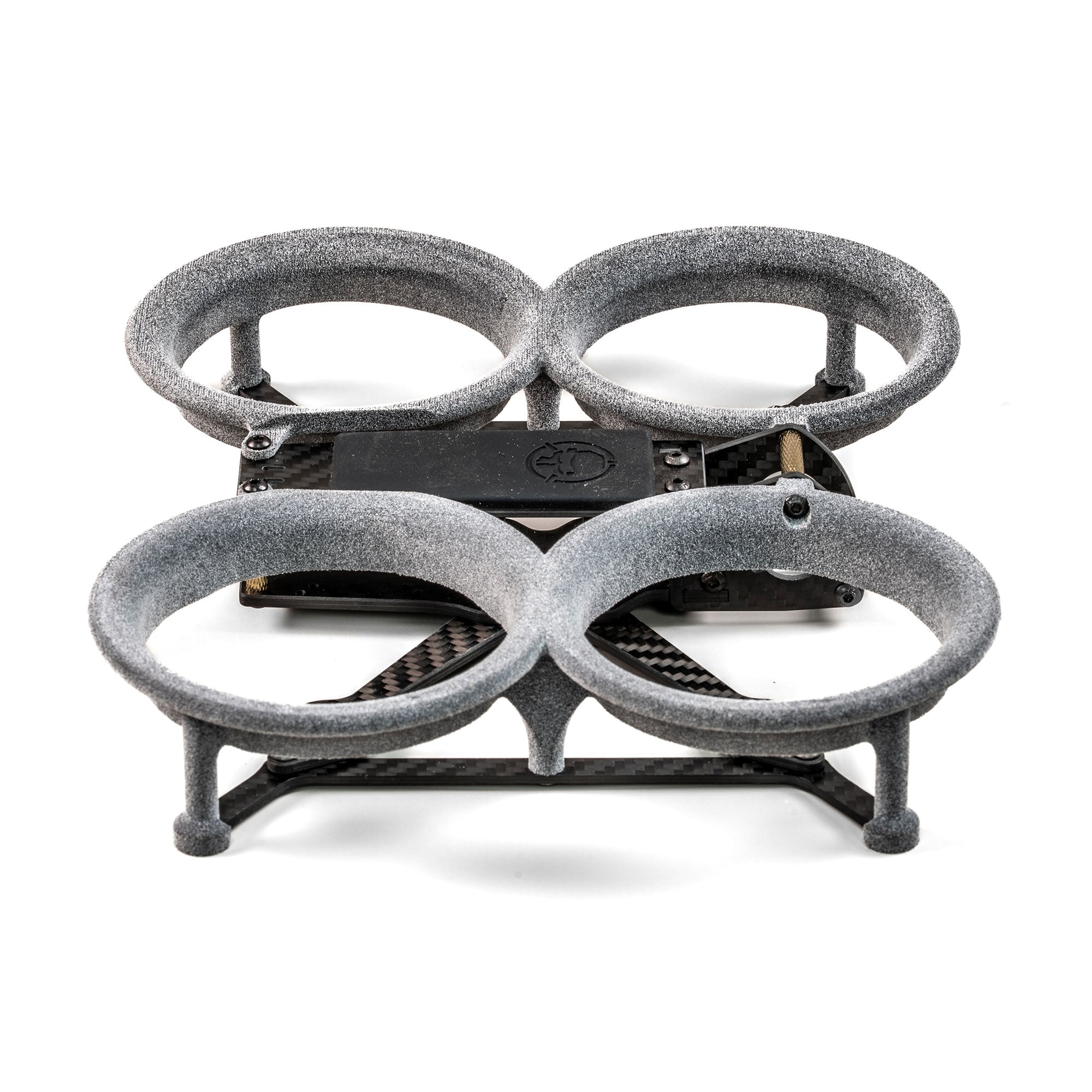

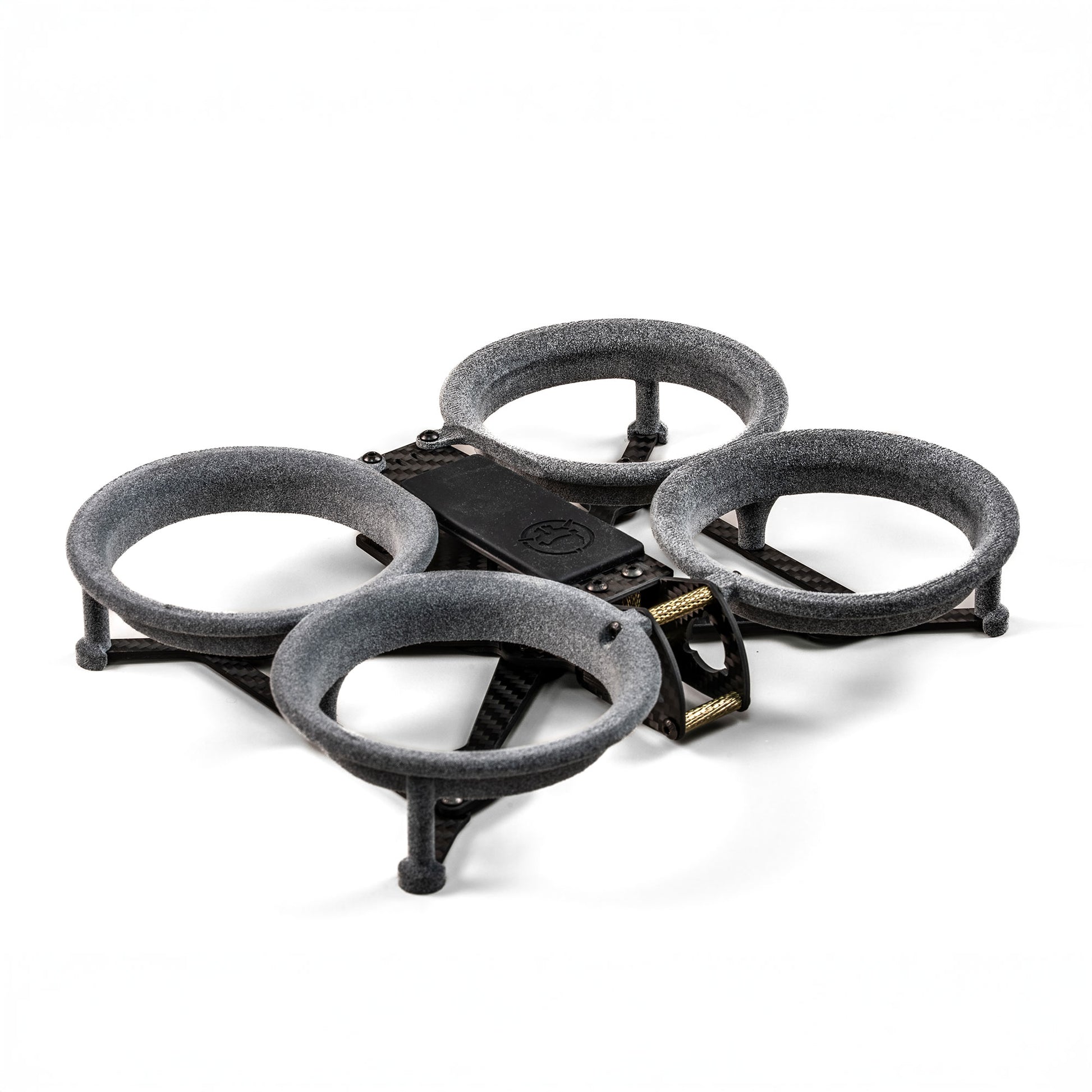

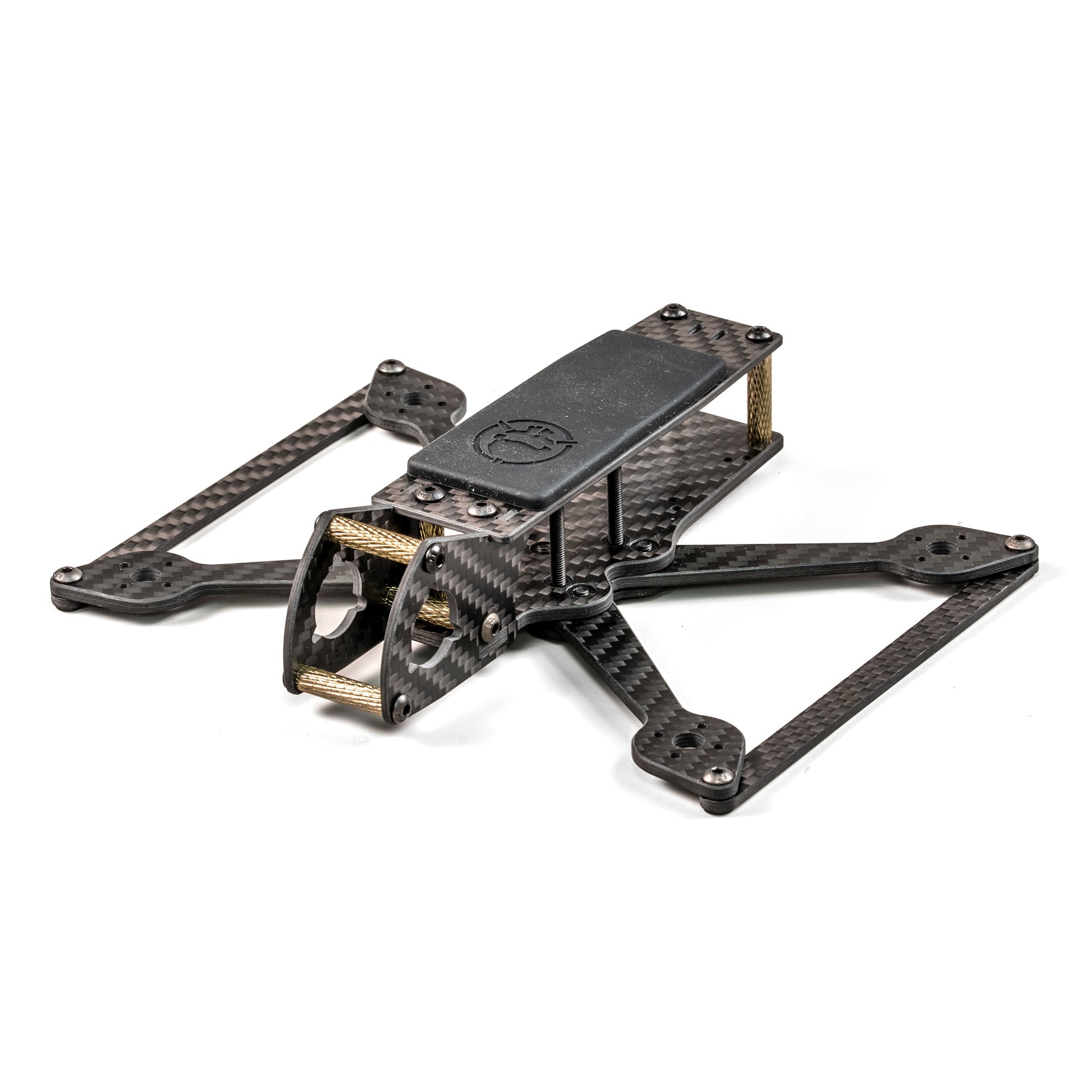

The SkyLite Frame supports up to 3.5" props, can be flown with or without ducts, and features individual arms that allow for better resonance, tuning, and easier repairs. It's easy to install and remove ducts! Fly it outdoors without ducts for an extremely durable freestyle kwad, or fly it indoors with ducts for an agile cinematic drone on par with The Cinewhoop!

Don't forget to grab some 3D prints. We also have this frame fully built both ducted and without ducts.


  • Compatible with the Fatshark Dominator HD system
  • Compatible with Caddx Vista DJI HD system
  • Compatible with analog video systems
  • Vertical side plates that allow for camera angles to be locked in place
  • Swappable 3D prints to accommodate different camera sizes
  • 20x20 stack mounting
  • 20x20 / 25x25 rear mounting
  • Comes with all the screws we think you'll need, from cameras to stacks


  • Wheelbase: 154mm
  • Frame Style: Wide X
  • Main Plate Thickness: 3mm
  • Top Plate Thickness: 2mm
  • Arm Thickness: 3mm
  • Arm brace Thickness: 2mm
  • Camera Plate Thickness: 2mm
  • Stack Size: 20x20mm
  • Rear Mounting: 20x20mm / 25x25mm
  • Stack Height: 20mm
  • Motor Mount: Φ12mm
  • Camera Mount: Supports Up to 20mm camera
  • Dimensions: 155x115mm
  • Weight: 86g
