Description

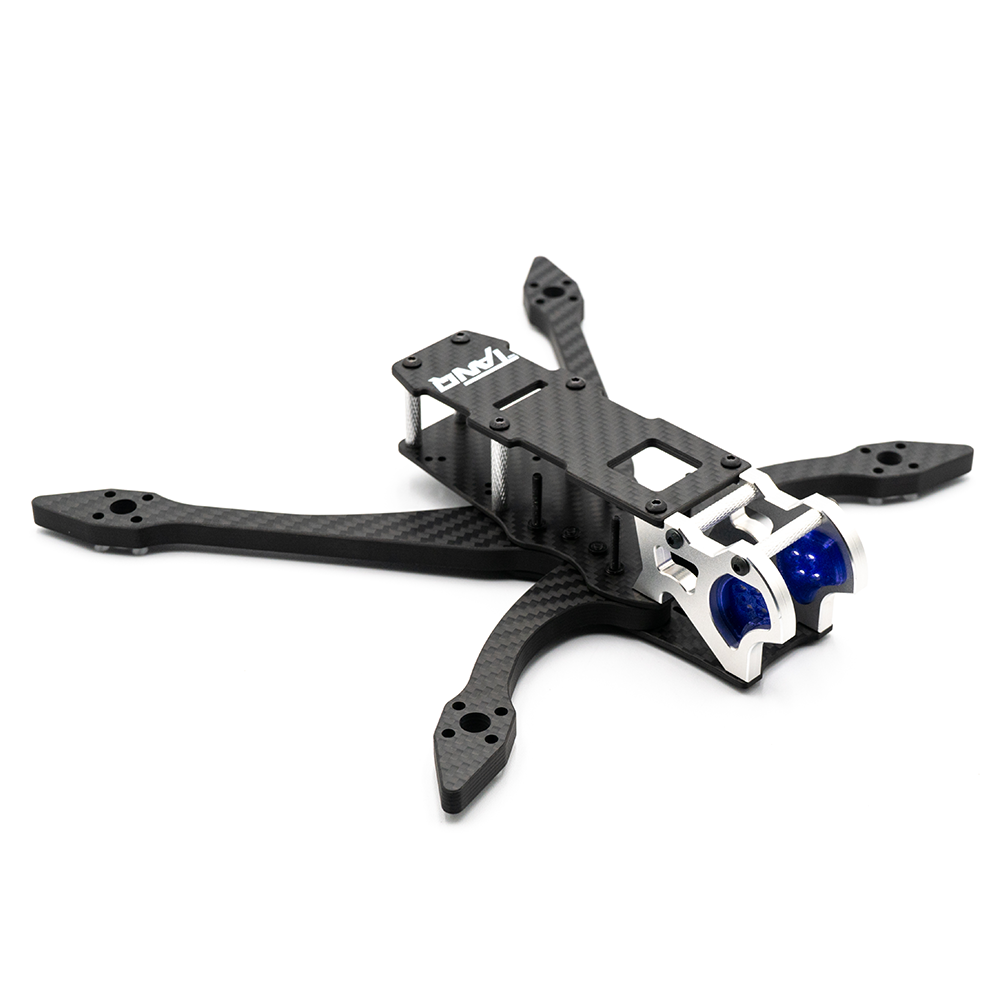

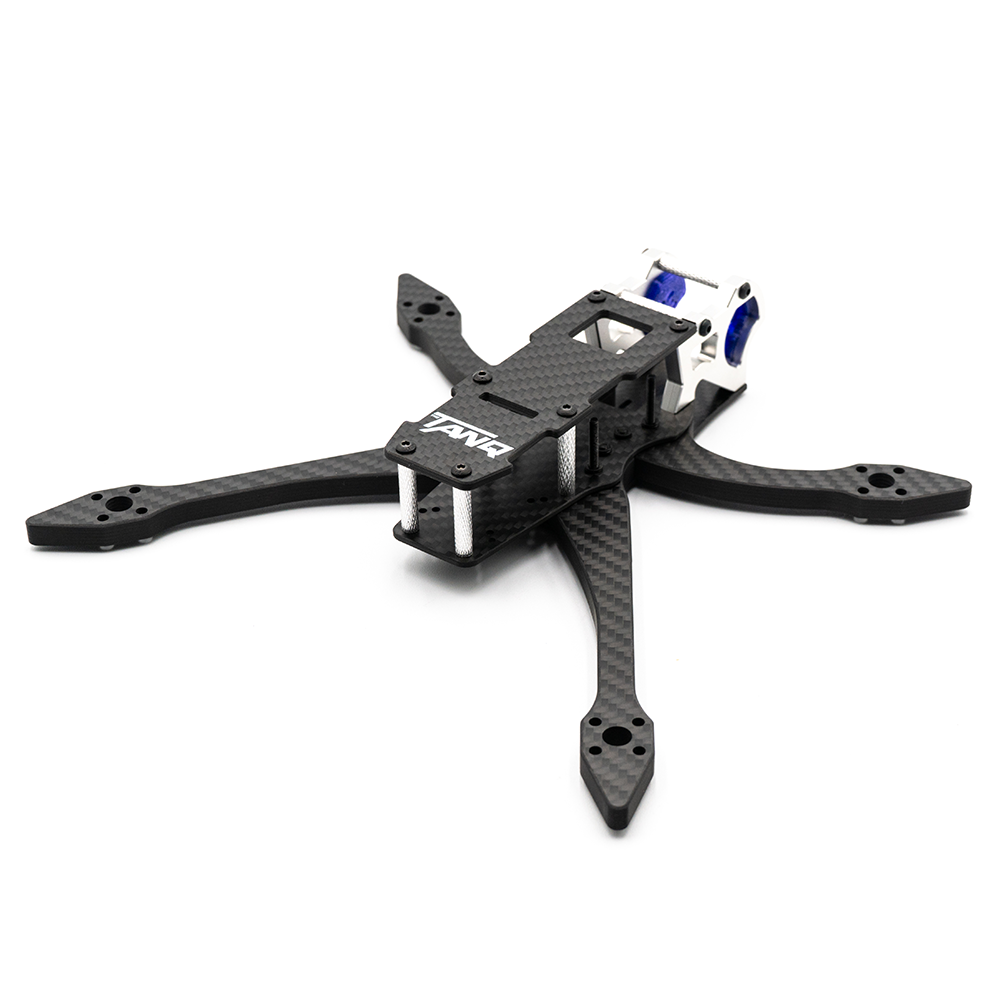

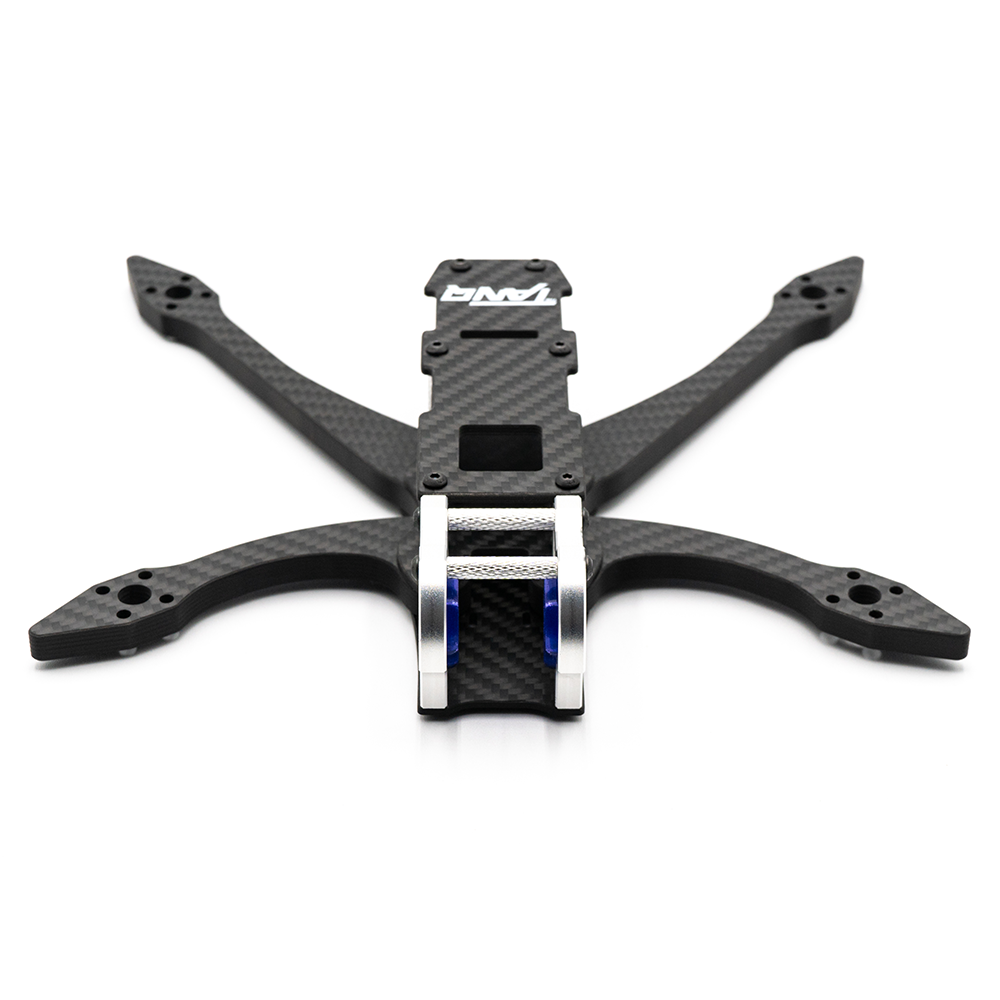

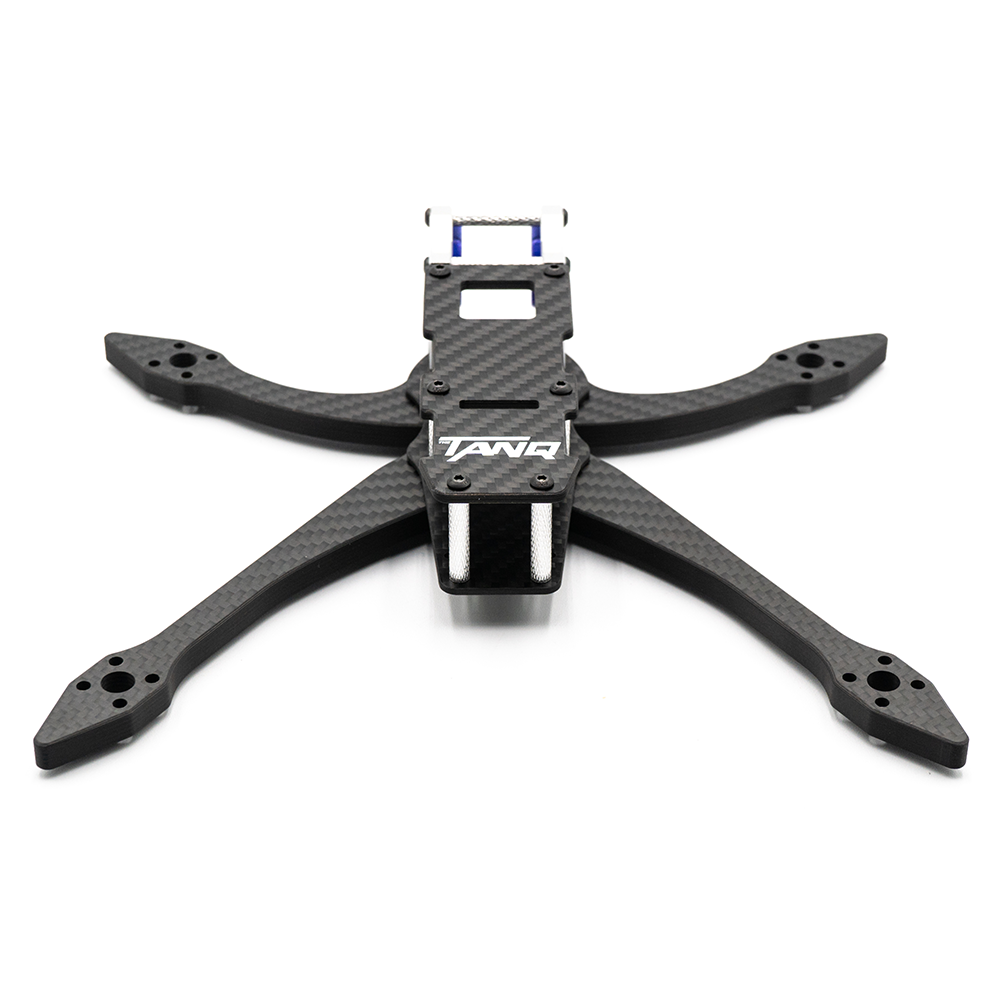

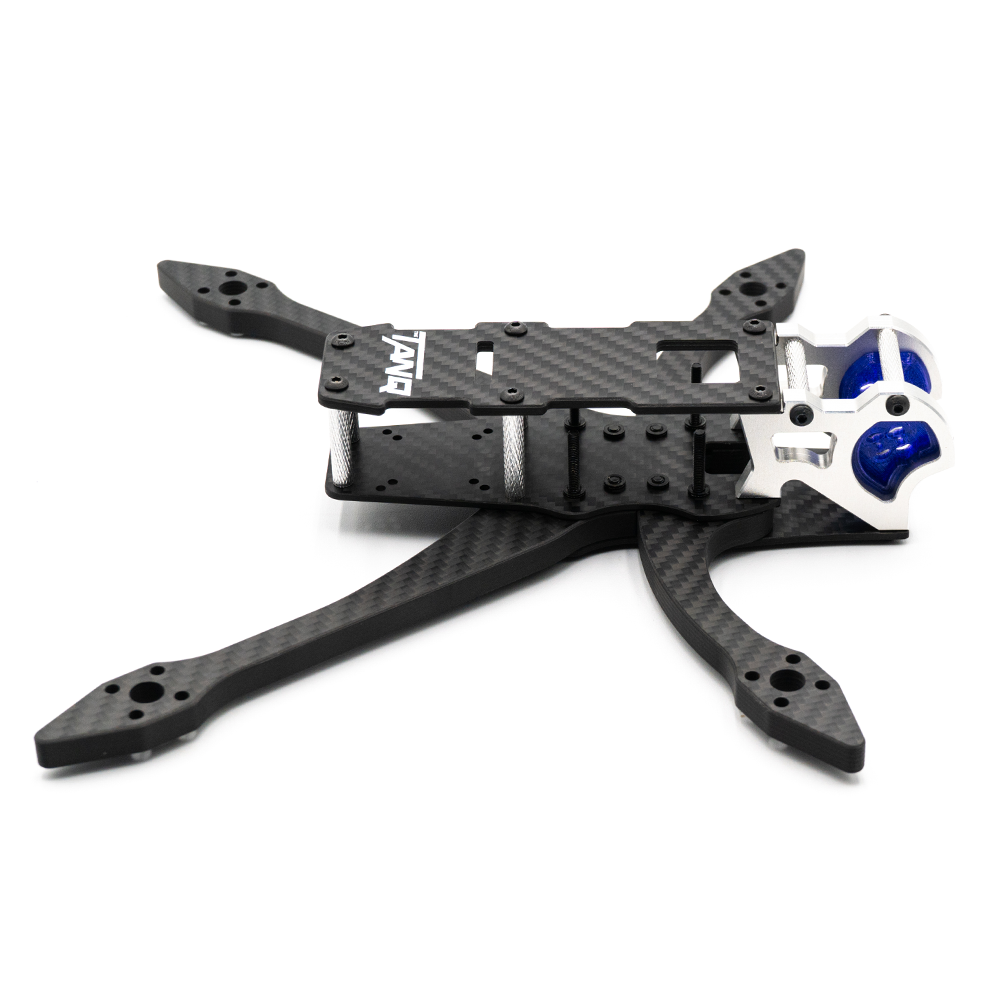

Introducing the TanQ 2 5" Deadcat by Let's Fly RC – Your next level in FPV drone frames has arrived!
In response to valuable feedback from the FPV community, Let's Fly RC meticulously enhanced the TanQ frame to create the TanQ 2. Building on the foundation of the original TanQ's success, this latest iteration not only integrates all previous improvements but also introduces exciting new features.
Upgraded Design: TanQ2 boasts a 3mm top plate with battery strap slots, offering you flexibility in mounting options—whether it's the battery toilet TanQ style or the standard setup.
Improved Stack Height: At 25mm, the increased stack height makes building a breeze, giving you extra room to make the build process a lot easier.
Enhanced Cage Design: The extra durable cage design now allows for highly customizable camera mounting, catering to all the latest camera models out there.
Compatibility: TanQ2 is not just a new frame; it's a commitment to compatibility. It works seamlessly with 5”, 5" deadcat, 5" racing, and 7/8” deadcat arms.
Specifications
- Wheelbase: 220mm
- Frame Style: Deadcat
- Mid Plate Thickness: 2mm
- Top Plate Thickness: 2mm
- Bottom Plate Thickness: 2mm
- Arm Thickness: 8mm
- Stack Size: 30x30mm
- Stack Height: 20mm
- Motor Mount: 16x16mm
- Camera Mount: Up To 25mm
- Dimensions: 225x221x37mm
- Weight: 182g
Includes
- 1x Top Plate
- 1x Mid Plate
- 4x Arms
- 1x Bottom Plate
- 1x RX Mounting Plate
- 1x Aluminum Cage Set (1 Left 1 Right)
- 4x M3 Press Nuts (Installed in Mid Plate)
- 1x Hardware Set
- 4x M3 20mm M3 Standoffs
- 4x M3 25mm M3 Standoffs
- 10x M3 8mm Screws
- 4x M3 14mm Screws
- 4x M3 18mm Screws
- 20x M3 12mm Screws
- 2x M3 20mm Screws
- 12x M3 Nylon Nuts
- 4x M2 20mm Screws
- 8x M2 Nylon Nuts
- 2x 3D Printed Camera Mounts (1 Left 1 Right)
- 1x Set of Kwad Skidz
- 1x Rotor Riot Sticky Battery Pad
- 1x 250mm Battery Strap
