XR1 Nano Multi-Frequency Receiver for ELRS Protocol
Out of stock

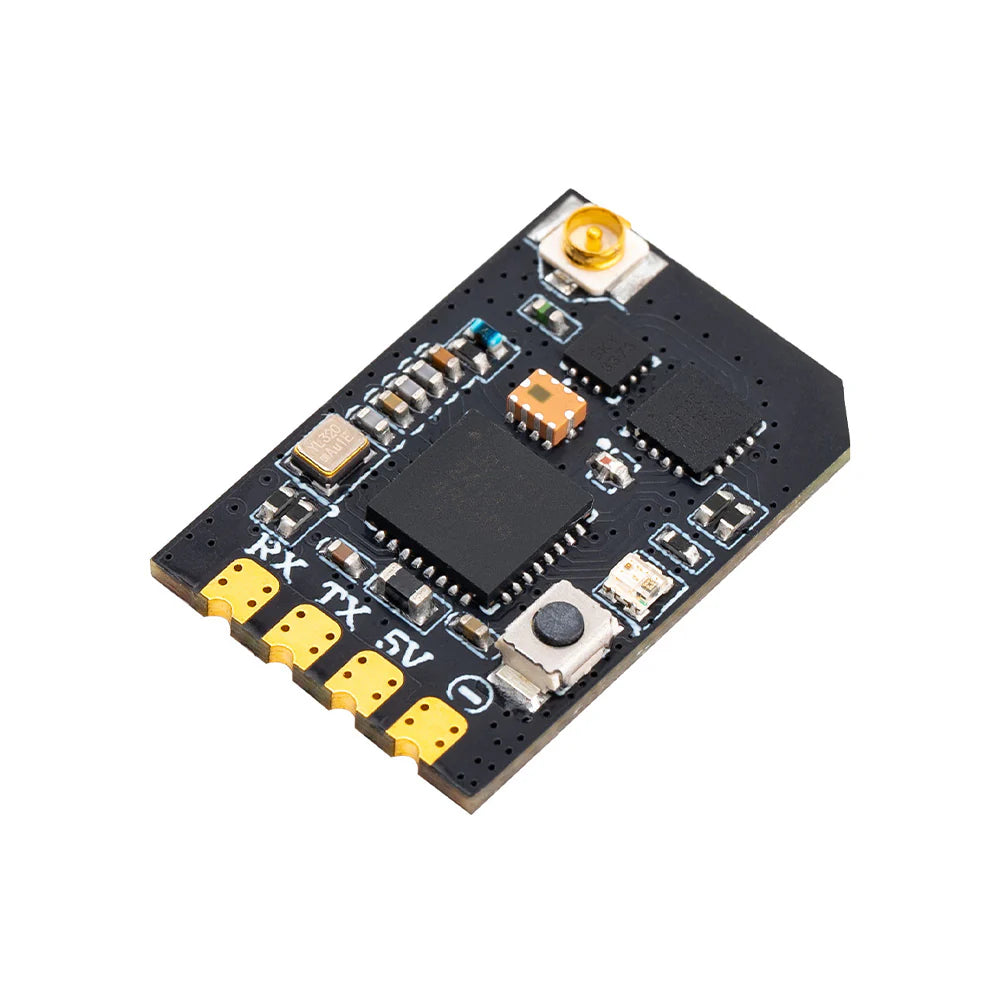

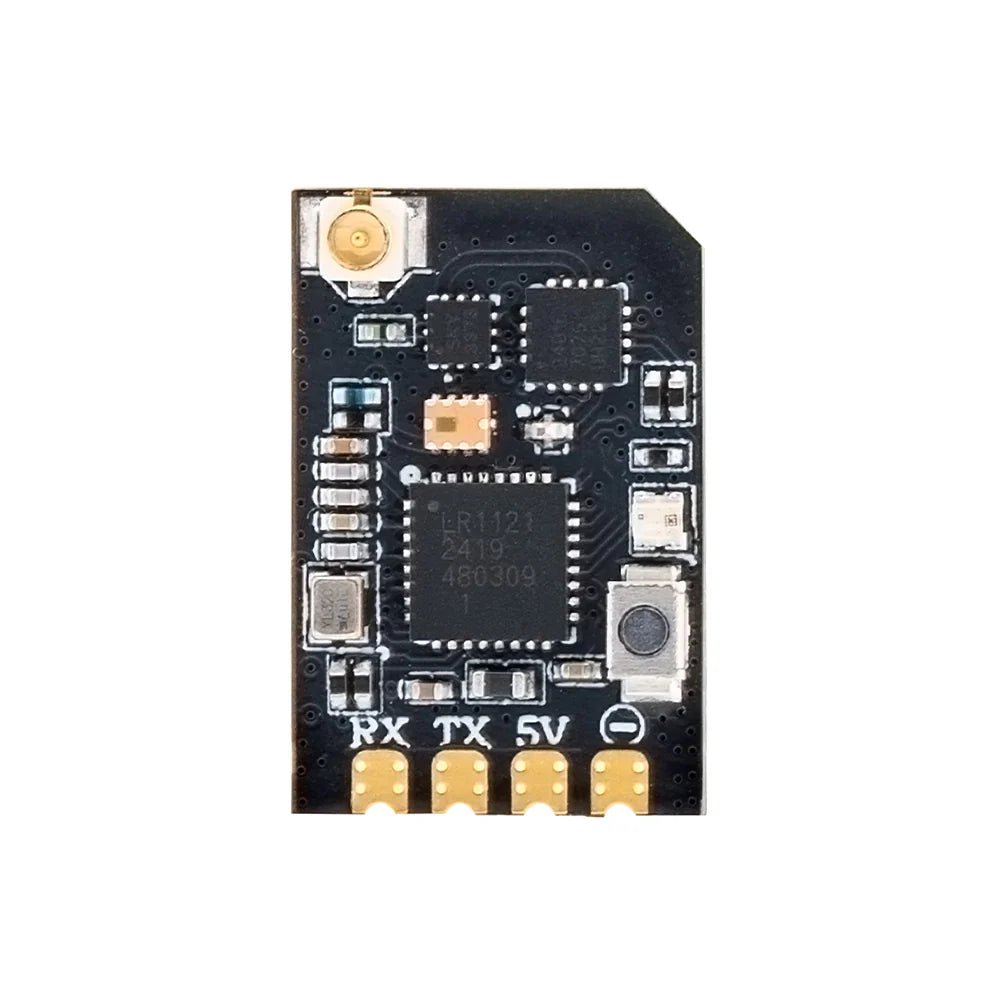

The XR1 Receiver is a versatile, ultra-compact ExpressLRS receiver, measuring just 20 x 13mm. Powered by the advanced third-generation Semtech LR1121 transceiver, the XR1 operates seamlessly on 2.4GHz OR Sub-G 900MHz bands. Whether you’re flying on 2.4GHz or 900MHz, the XR1 delivers exceptional range and sensitivity in a small, lightweight package — perfect for any build. With the reliability of ExpressLRS, you can focus on flying without worrying about link quality.
Designed for convenience, the XR1 features built-in Wi-Fi for effortless configuration and firmware updates. Access and manage settings through an intuitive WebUI on your PC or mobile device with ease.
For more details and support, visit expresslrs.org.
Please note this is the pre-order. Orders start shipping at the end of January 2025.
Features
- Telemetry RF power: 100mW
- ExpressLRS 2.4GHz or Sub-G 900MHz
- ESP32C3 high-performance MCU
- Semtech LR1121 2.4GHz & Sub-G 900MHz Transceiver
- Secondary UART port
- Castled pads for easy soldering
Specification
- Item: XR1 Nano Multi-Frequency ExpressLRS Receiver
- Type: ISM2.4 or FCC915
- MCU: ESP32C3
- RF chip: Semtech LR1121
- RF connector: IPEX-1

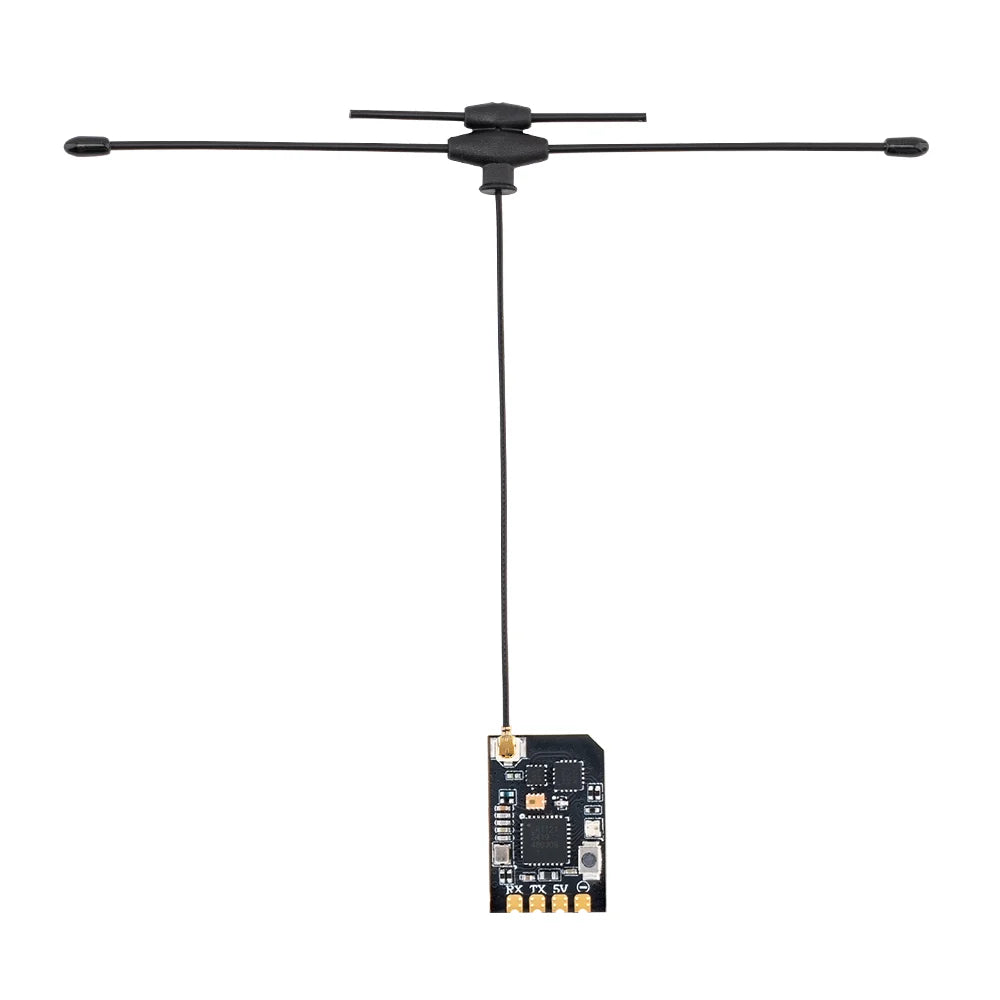

- Antenna: 1x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
- Frequency Range: 2.4GHz or Sub-G 900MHz
- Telemetry Power: 100mW
- Maximum Packet rate: DK500Hz / K1000Hz
- Minimum Packet refresh rate: 50Hz
- Working voltage: 5V
- Weight: 1.0g (without antenna)
- Dimension: 20mm * 13mm * 3mm
- Firmware Version: ExpressLRS v3.5.1 pre-installed
- FW Target: RadioMaster XR1 2.4/900 RX
- Bus interface 1: CRSF
- Bus interface 2: UART
Tailored to Your Needs
The XR1 Receiver is available in three configurations, ensuring you have the flexibility to meet your exact requirements: Choose between 2.4GHz, Sub-G 900MHz, or a Dual-Band antenna that allows switching between 2.4Ghz and 900Mhz without an antenna change! All antenna types are available as optional accessories so you can change frequency at a later stage without needing to purchase a new receiver!
Weight
Dimensions
Associated Products
- XR2 Nano 2.4GHz ExpressLRS Receiver
- XR3 Nano Multi-Frequency ExpressLRS Receiver
- XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver
- 2.4GHz / Sub-G 900MHz Dual-Band T Antenna
- UFL 2.4Ghz T Antenna 65mm/95mm for ELRS Receivers
- UFL 915/868MHz T & Y Antenna for BR Series Receivers
Includes
- 1 * XR1 Nano Multi-Frequency ExpressLRS Receiver
- 1 * T Antenna (Dual-band)
- 1 * CRSF wire
- 3 * Heat-Shrinkable Tube
- 1 * Manual Card
