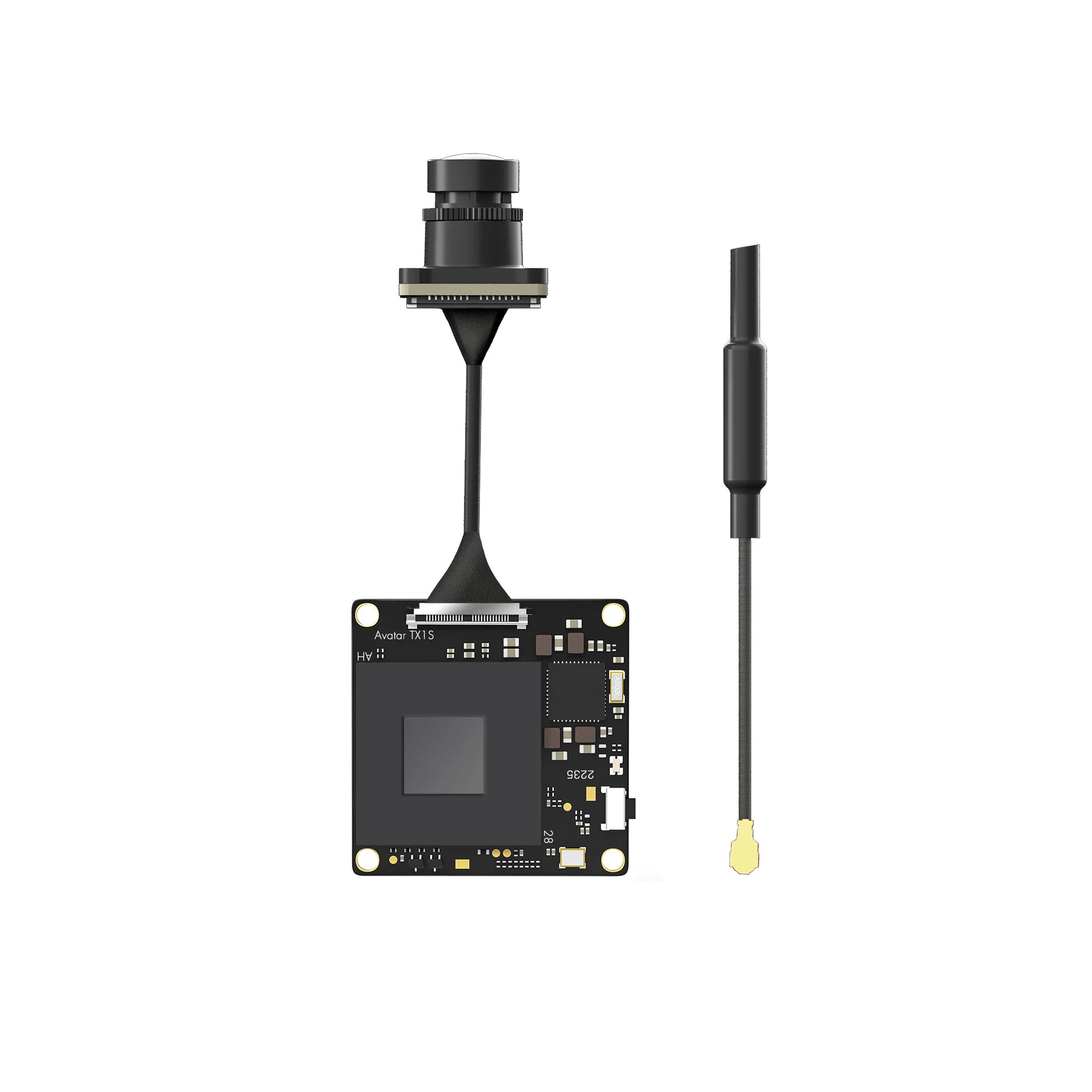

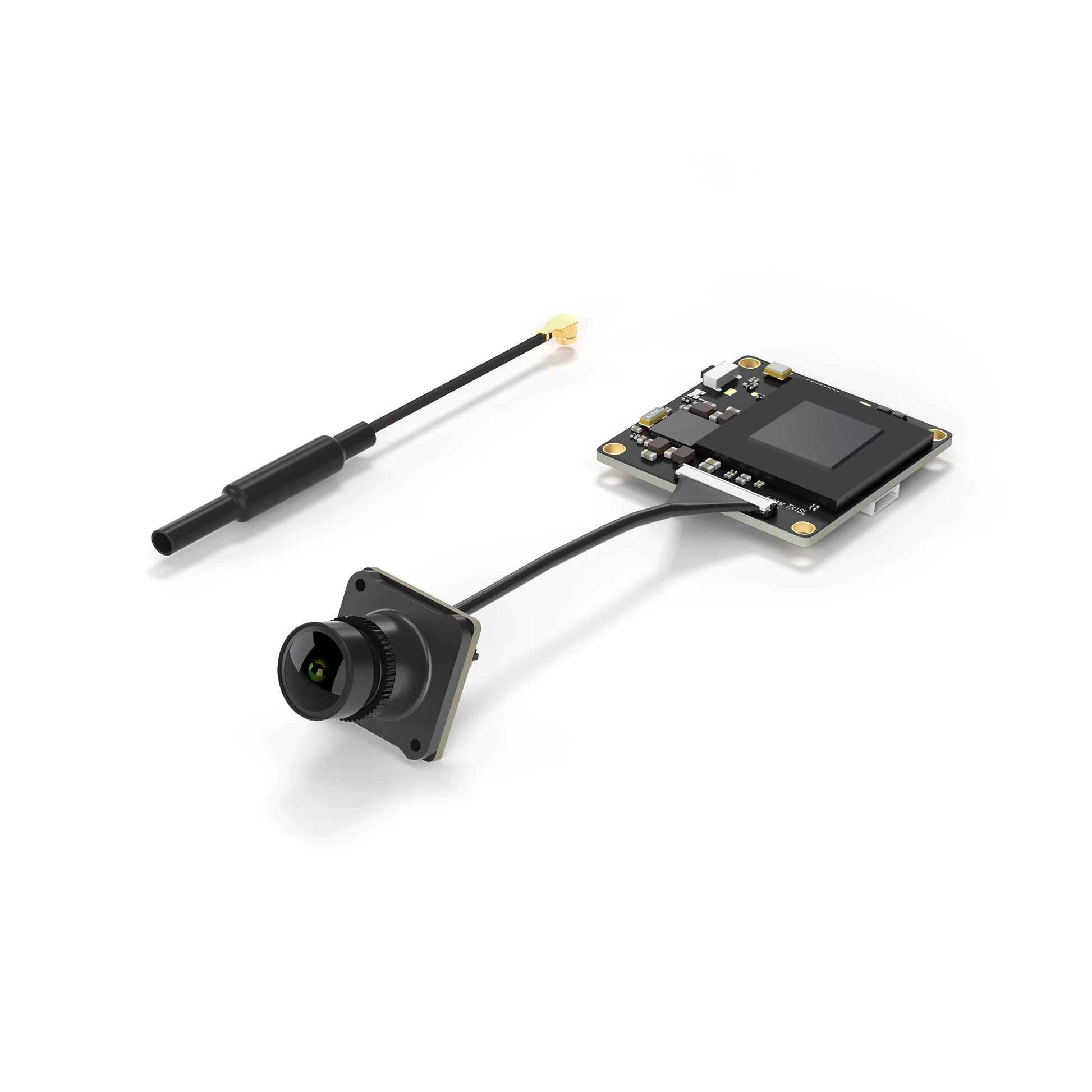

Avatar Mini Lite 1S VTX with Nano Camera For Avatar HD Video System

filler

Price:
$89

Stock:
In stock

Description

Avatar HD mini 1S lite kit comes with the smaller, lighter and stronger new version VTX board, 30x30mm size, 5.1g, which can be installed in smaller drones. Avatar HD lite camera weighs only 1.8g, but with a 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality.

Check out all our Fat Shark Dominator / Walksnail HD gear!

Features

  • Lower latency than the competitor at an average of 22ms
  • 6.8g Lightweight Mini VTX great for the 75x Quad
  • Walksnail Avatar Mini 1S VTX Module
  • Walksnail Avatar Nano Camera
  • Built-in 8Gb Internal Storage
  • 1080p Screen Resolution
  • Switchable Aspect Ratio
  • Walksnail IPEX Antenna
  • 5.8GHz Frequency
  • Onboard DVR
  • Canvas Mode
  • 170° FOV
  • 3.1V-5V

Specifications

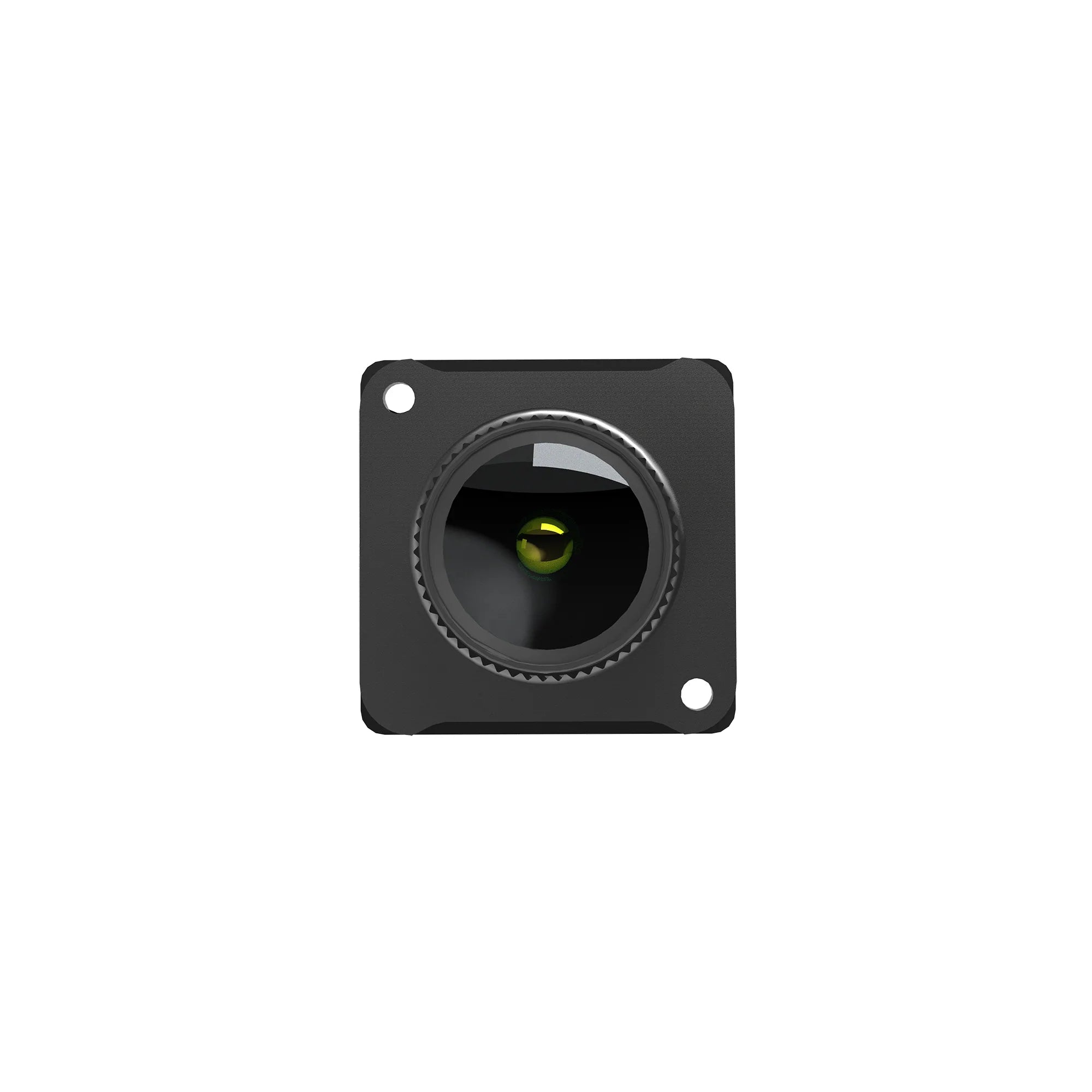

AVATAR HD LITE CAMERA

  • Image Sensor: 1/2.7”1nch
  • Resolution: 1080P/60fps,720P/120fps,720P/60fps
  • Aspect Ratio: 16/9 4/3
  • Lens: 2.1mm
  • FOV: 170°
  • Aperture: F2.0
  • Shutter: Rolling shutter
  • Minimum Illumination: 0.001Lux
  • Weight: 1.8g
  • Dimensions: 14x14x16mm

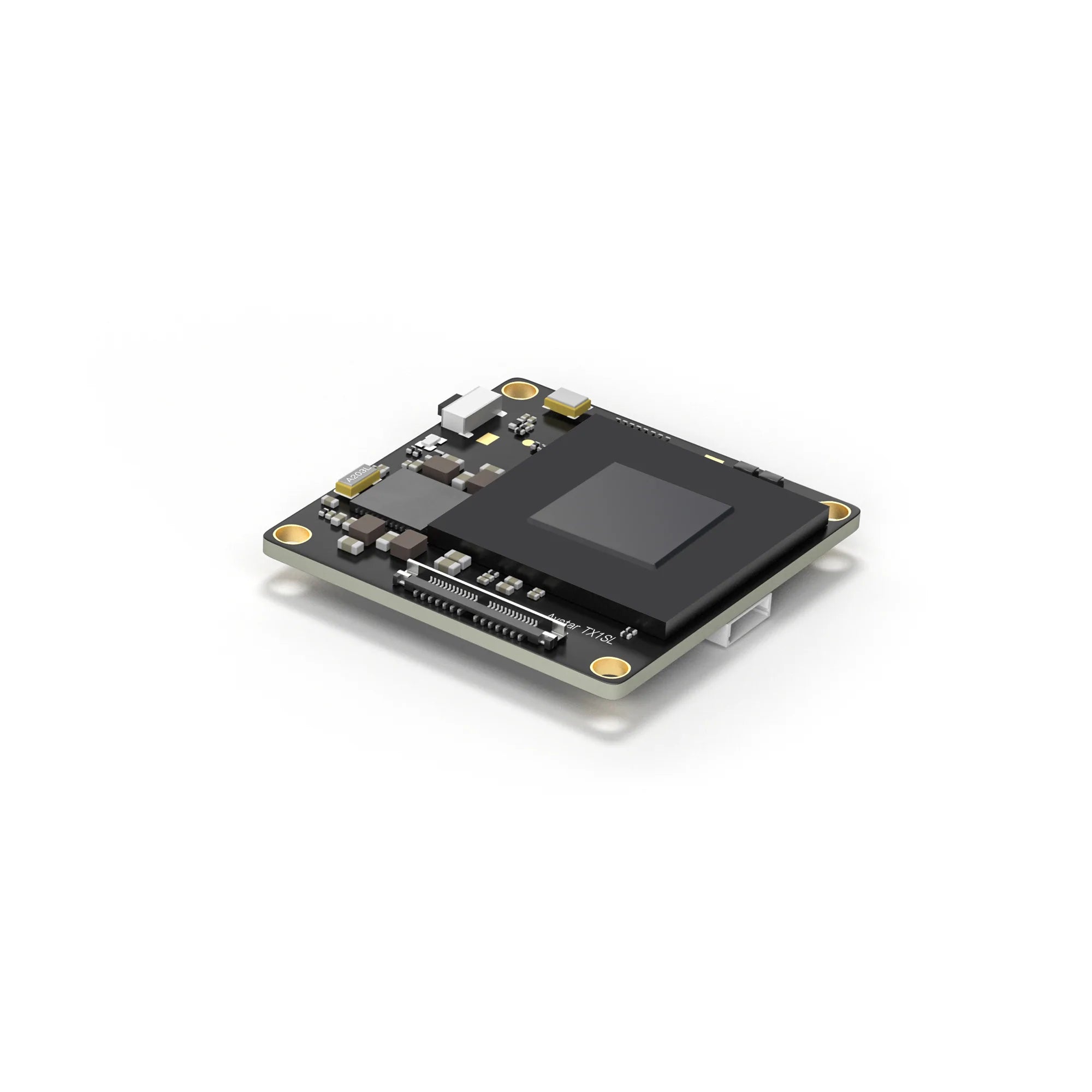

AVATAR MINI LITE 1S VTX MODULE

  • Communication Frequency: 5.725-5.850GHz
  • Transmitter Power: (EIRP) FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm;
  • MIC:<25dBm
  • I/O Interface: JST1.0*6(Power in)JST0.8*4(USB)
  • Mounting Holes: 25.5x25.5mm
  • Dimensions: 30x30x6.5mm
  • Storage: 8G
  • Recording: 1080p/720p
  • Weight: 5.1g
  • Operating Temperature: -20-40℃
  • Channels: 8
  • Power Input: 3.1V-5V
  • Supported FC System: Betaflight
  • OSD: Canvas mode
  • Bitrate: 25mbps 50mbps
  • Latency: Average delay 22ms
  • Antenna: IPEX

WALKSNAIL 1S LITE VTX ANTENNA

  • Polarization: Linear
  • Frequency range: 5600-5900MHz
  • Gain: 1.6 dbi
  • VSWR: ≤1.5
  • Input Impedance: 50Ω
  • Interface: IPEX-1
  • Size: 5x70mm
  • Weight 0.5g

Includes

  • 1x Avatar Mini Lite 1S VTX with Nano Camera For Avatar HD Video System
  • 1x Walksnail Avatar IPEX Antenna
  • 1x 4-Pin Power Cable
  • 1x 4-Pin USB Cable
  • 4x M2 Anti-vibration Dampeners
  • 4x 1.4x8mm Screws
  • 2x 1.4x10mm Screws

Recommended Accessories

FPV Regulatory Notice ⚠

Customer Reviews

Based on 7 reviews
57%
(4)
43%
(3)
0%
(0)
0%
(0)
0%
(0)
D
Don Prince
Works perfectly.

Does what you need. No issuse.

M
Mike S
Great VTX with one issue

There is no way to mount the camera to a whoop canopy. Rotor Riot sells a separate part called "Vision40 1S Lite Camera Adapter" that you can use for their canopy. You can buy that, or figure out something else. Otherwise, it is working great for me.

K
Kevin Moore
Awesome for my woop build

I love it! I should’ve been went HD

K
Kevin

Install was smooth. My first step into HD, I love it.

J
Jason Peloquin
Impressive image quality

I’ve bought 3 of these. The image quality and range is pretty impressive for the size and power constraints
