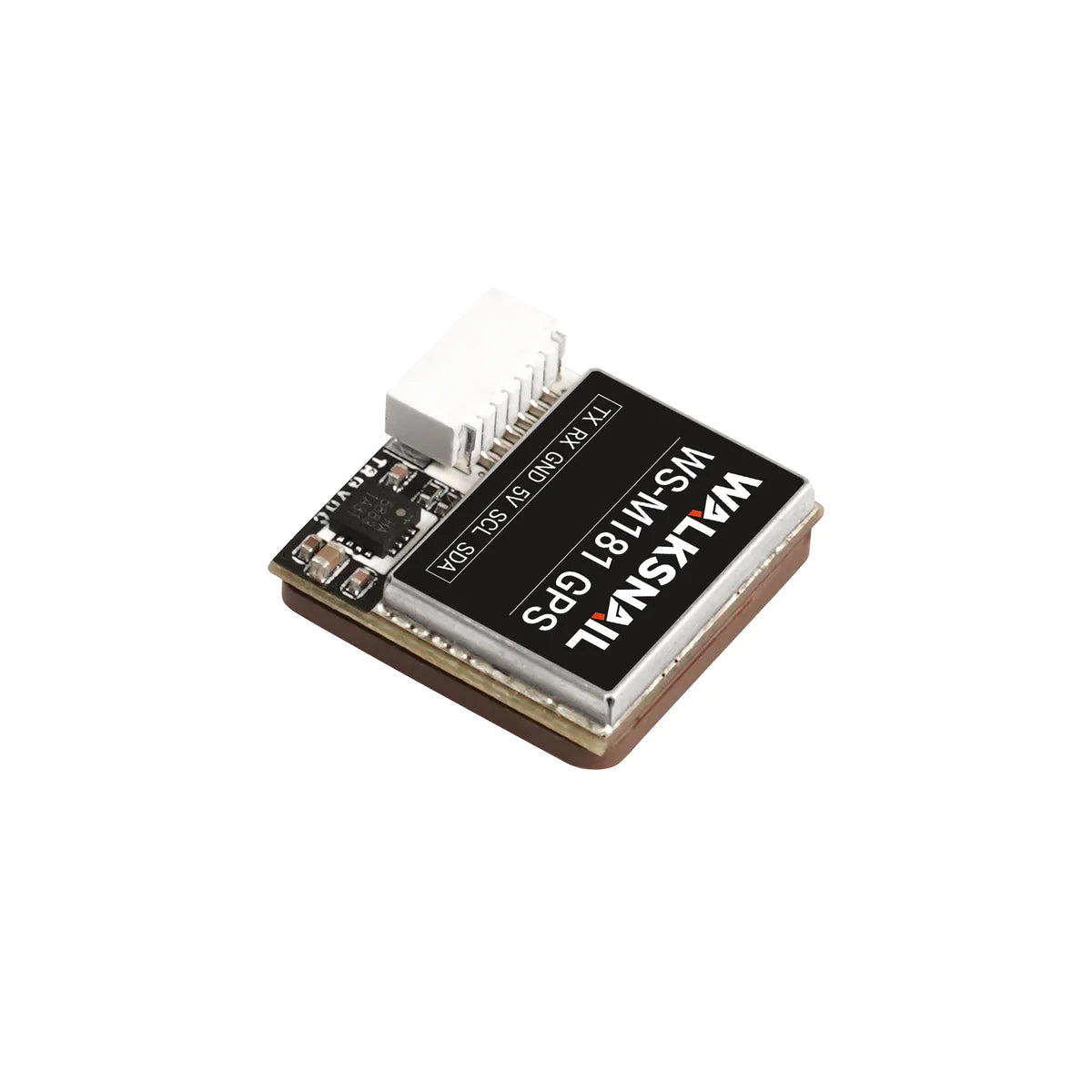

WS-M181 GPS
Hurry up, only 10 items left in stock.
Small size, light weight, fast positioning, and stable connection. It is suitable for FPV, RC airplane, quadcopter and others to enhance the flight experience.
- Featuring the u-blox M10 platform UBX-M10050 GNSS chipset and BUILT-IN QMC5883 MAG, the module offers stronger performance and more accurate positioning.

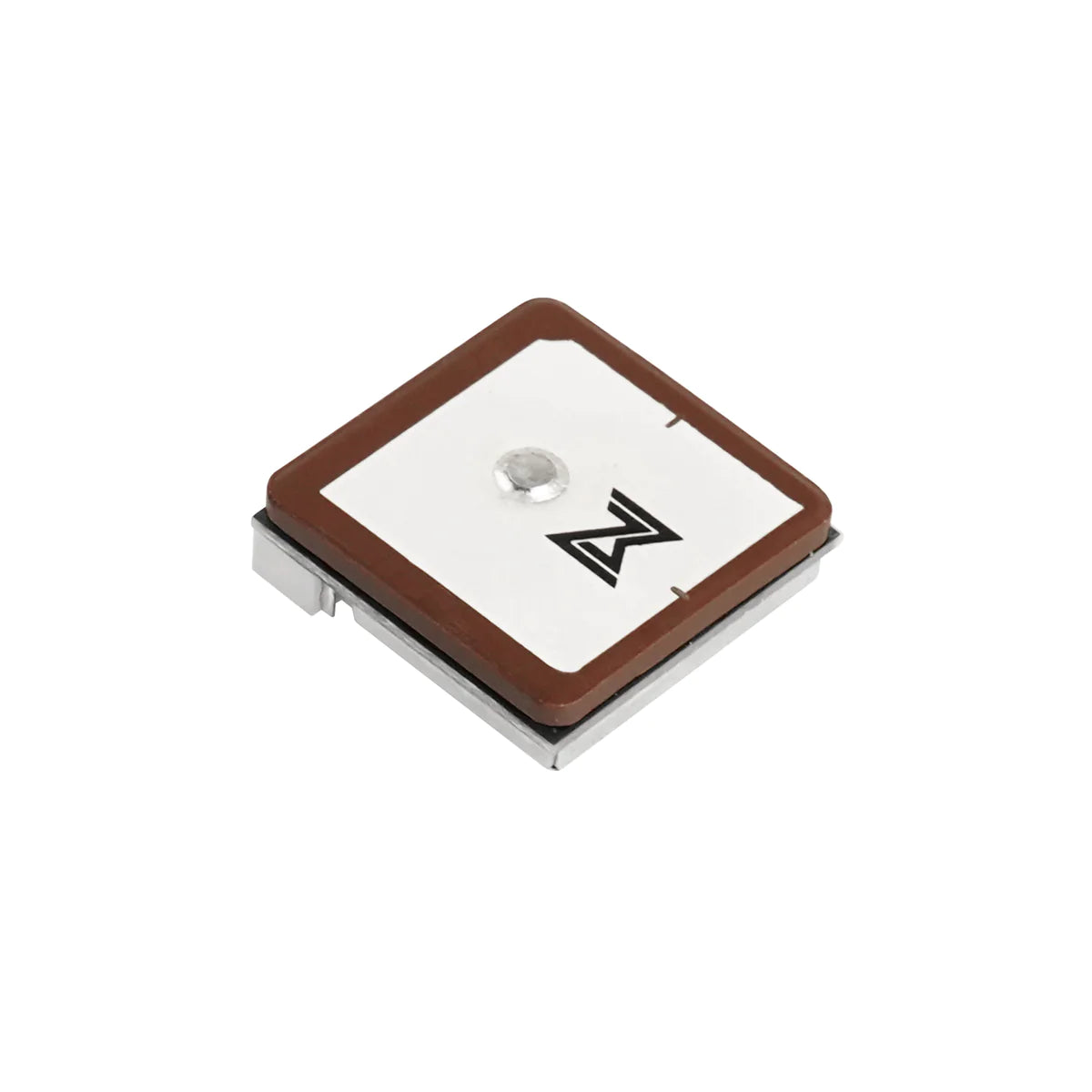

- The ultra-thin ceramic antenna uses a special spray painting process to prevent oxidation and scratching, ensuring consistent positioning performance.
- The built-in battery can realize hot start and realize positioning quickly.
- It offers six positioning modes, providing more flexible combinations (default GPS + GLONASS + BDS multi-mode positioning).The measured maximum number of search sats can cover 32pcs.
Note:
Because the GPS chip is a new 10th generation chip, the flight controller needs to flash firmware Betaflight 4.3.0 and above, and the firmware below 4.29 uses the NMEA protocol.
Specifications
- Chip: M10 (ten generation chip)
- Frequency: GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1
- Power: 5V
- Size: 18mm*18mm*4.6mm
- Antenna: ceramic antenna (oil spraying process, prevent scratching and oxidation)
- Receiving channels: 72 search channels
- Compass： QMC5883
- Baud rate: 115200dps
- Output protocol: NMEA UBLOX (dual protocol)
- Output frequency: 1Hz-10Hz, Default 10Hz
- Speed accuracy: 0.05m/s
- Horizontal positioning accuracy: 2D ACC1.5m(open air)
- Receiving sensitivity:
- Trace-162dBm
- Capture -160dBm
- Dynamic characteristics:
- Altitude: 50000m
- Speed: 500m/s
- Acceleration: 4G
- Operating temperature: -40℃-+85℃
- Storage temperature: -40℃-+105℃
Includes
- 1x WS-M181 GPS
- 1x Cable
