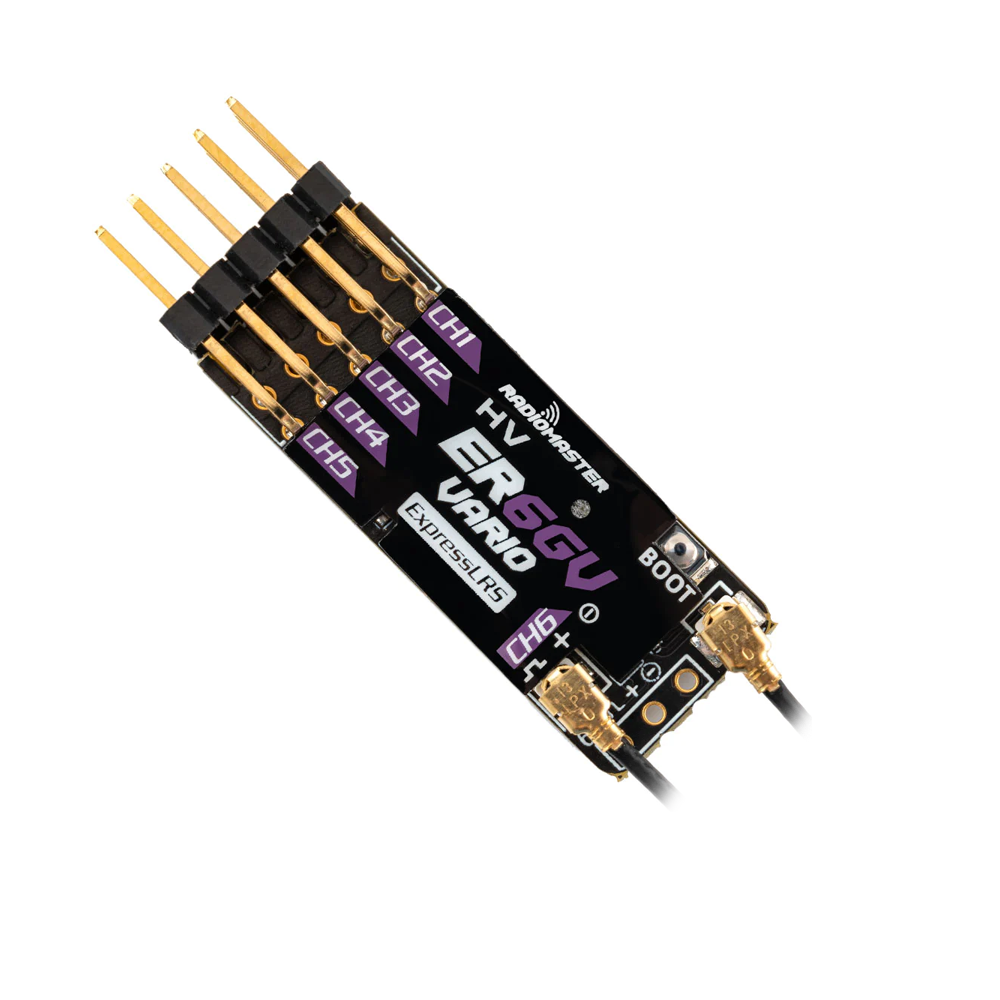

ER6GV 2.4GHz PWM Receiver For ELRS Protocol



In stock
  • The ER6G & ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.

    The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.


    • Based on the Revolutionary ExpressLRS System
    • High performance, high reliability, flexible configuration, fast response speed and ultra-long range
    • Support 6 PWM Channels
    • Optimized ground up PCB design
    • Automatically voltage telemetry of external battery voltage or built-in receiver voltage
    • Built-in high-precision air pressure sensor (Vario)
    • Supports Wi-Fi updates and WEBUI configuration
    • High quality 2.54 mm connector
    • Standard 15 cm High Sensitivity Antenna
    • For fixed-wing aircraft and gliders


    • Item: ER6GV 2.4GHz ELRS PWM Receiver
    • Power supply: DC 3.5 - 8.4V
    • Antenna type: 15cm high sensitivity antenna
    • Wireless protocol: ExpressLRS 3.2 pre-installed
    • Output channel: 6CH PWM
    • Return power: maximum 50mw (LUA Adjustable)
    • Built-in high-precision air pressure sensor (Vario)
    • Battery voltage detection range: DC 3.0 - 26V
    • Weight: 5.0 grams
    • Dimensions: 42*13*8mm
    • Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6GV


    • 1x ER6GV 2.4GHz ELRS PWM Receiver
    • 1x Voltage telemetry wire (Type-A)
    • 2x Heat-shrink tube
    • 1x User Card

Customer Reviews

Based on 1 review
Hansen Tsang
What a wonderful receiver

It is narrow, light and small. Firmware is not yet available on the ExpressLRS configurator. So instead of setting up the receiver on my laptop I just did a bind with the transmitter by cycling power 3 times. Did a test flight. Signal quality did not move off the 100% and this is with 25mW transmission power.
